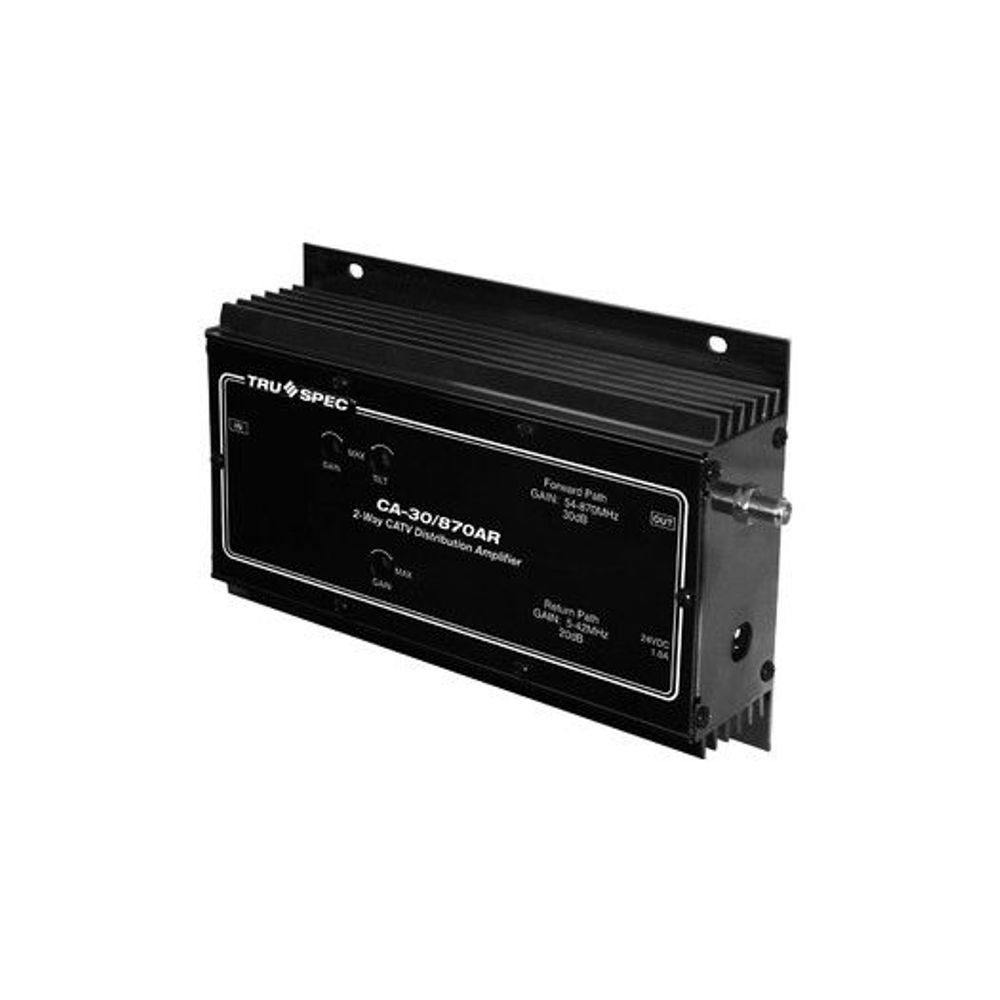

CA-30/870AR Bi-Directional CATV Distribution Amplifier
$275.00 Each Add to cart

Pico Digital/ATX - CA-30/870AR Bi-Directional CATV Distribution Amplifier

$275.00 Each

The CA-30/870AR distribution amplifier is a high quality push-pull amplifier that produces signals with extremely low distortion and harmonic content. The forward bandwidth makes 135-channel operation possible, while the two-way configuration allows the amplifier to be used in systems that utilize remote signal sources on the return path.

Ships in 2 to 3 weeks
Safe Checkout

Description

  • Forward path: 54 MHz to 870 MHz, channels: 2 to 135; reverse path: 5 MHz to 42 MHz, channels T-8 to T-12
  • 30 dB gain for optimal carrier-to-noise ratio and superior picture quality
  • Employs state-of-the art hybrid push-pull technology for distortion-free audio and video quality
  • Adjustable slope and gain controls for easy system balancing
  • Easy-access controls and low-loss (- 20 dB) test point enable simplified setup and performance monitoring
  • Shielded enclosure provides over 95 dB of RFI shielding performance reducing leakage and ingress
  • Built-in lightning and line voltage surge protection protects the unit from damage

Brand

Pico Digital/ATX

Committed to providing multimedia delivery solutions for the broadband, satellite, cable and broadcast industries. As a global leader in design, manufacturing and support of high-performance, high-value head-end, infrastructure, distribution and customer premise equipment, Pico Digital is committed to delivering cutting edge technology and products. Through their offerings, Toner Cable is able to bring unprecedented value to our customers – from the world's largest media companies to smaller, local service providers. Pico Digital is a privately held, employee-owned company headquartered in San Diego, CA,and is committed to the success of their customers, and solving real-world business challenges.

Additional information

Weight 4 lbs
Dimensions 16 × 8 × 4 in
