Eagle Comtronics Inc. - ECS

Call for Price

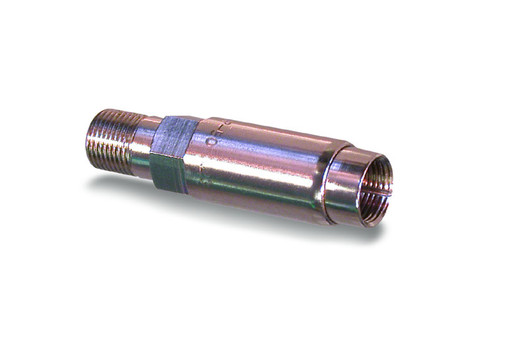

A cable simulator will compensate for differential frequency losses across a length of cable by attenuating signal
levels of higher frequencies until they equal signal levels of lower frequencies. The cable simulator is used in
situations where there are excessive signal levels at the tap port and a short cable drop to the subscriber.

Safe Checkout

Description

TILT VALUES AVAILABLE: -3dB, -6dB, -9dB, -12dB, -15dB, -18dB
UPPER FREQUENCY: 870 MHz, 1000 MHz
INSERTION LOSS @ 55 MHz: -0.5 dB max
TILT VARIATION: ± 0.8 dB
IMPEDANCE: 75 Ohms
TEMPERATURE RANGE: -40o to +140o F

Brand

Eagle Comtronics Inc.

The Eagle Brand is synonymous with high quality Traps & FiltersEagle Comtronics has been a recognized leader in RF (Radio Frequency) communication and filter manufacturing since 1975. Known for industry changing innovations in Cable TV Trap & Filter technology, Eagle branded products can be found within all major cable television systems around the globe. As a U.S. based manufacturer, the Eagle crest has become synonymous with high quality and on-time delivery among industry insiders.

Additional information

Weight 0.2 lbs
