HDE-HVC-PRO MPEG2 SD/HD Encoder
$3,054.00 Each Add to cart

Blonder Tongue - HDE-HVC-PRO MPEG2 SD/HD Encoder

$3,054.00 Each

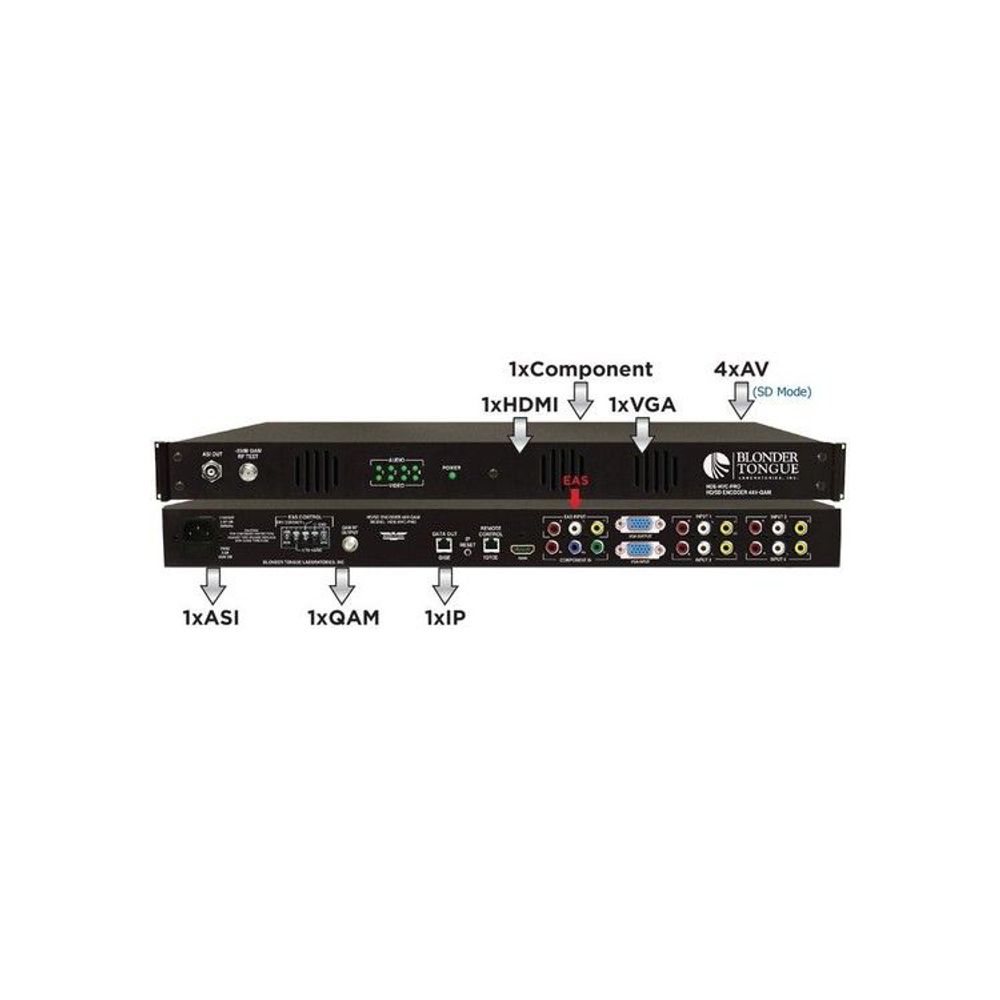

Blonder Tongue’s HDE-HVC-PRO (Professional Series MPEG-2 HD/SD Encoder) is especially designed to deliver superior motion optimization for programming such as fast-paced live sporting events and is configurable in either HD or SD mode via its web interface.  When operating in HD Mode, the encoder accepts one (1) program from any one of the following inputs: 1xHDMI (unencrypted), 1xVGA or 1xComponent. In SD Mode the encoder accepts up to four (4) standard-definition (SD) input programs in NTSC baseband Audio/Video format. Each AV input program is digitized, MPEG-2 encoded, and then multiplexed into one Multi-Program Transport Stream (MPTS). The output (in either HD or SD Mode) is available in the following formats simultaneously: 1xQAM, 1xASI, and 1xIP (GigE; HD-SPTS, SD-MPTS).

The encoder supports Dolby® Digital audio encoding, and Closed Captioning (EIA-608). It is also equipped with an Emergency Alert System (EAS) interface, accepting NTSC video and baseband L/R audio for EAS signal inputs. A front panel RF test point allows for monitoring/testing of the QAM output without service interruption.

Comprehensive remote monitoring and control is accomplished using any standard Web browser via a rear-panel 10/100Base-T Ethernet connection.

Ships in 3 to 5 days
Safe Checkout

Description

HD Mode:

  • Accepts one (1) program from any of the following inputs: 1xHDMI (unencrypted), 1xVGA, 1xComponent, and 1xComposite

SD Mode:

  • Accepts up to four (4) programs in NTSC baseband A/V format
  • Digitizes, MPEG-2 encodes, & multiplexes up to four programs into one MPTS
  • Simultaneously delivers the following outputs: 1xQAM, 1xASI, and 1xIP (GigE; HD-SPTS, SD-MPTS)
  • Provides comprehensive GUI-based monitoring and control via standard Web browsers
  • Provides a front-panel RF test point (at 20 dB below primary QAM output)
  • Configurable to ITU-T J.83 Annex A and B digital QAM formats
  • Equipped with EAS interface (Analog Video + L/R Audio) • Supports Real-time Dolby® Digital audio encoding
  • Supports Closed Captioning EIA-608
  • Supports user-defined PSIP configuration

Brand

Blonder Tongue

Solutions for All Your Applications Blonder Tongue Laboratories, Inc. offer customers more than 130 years of combined engineering and manufacturing excellence with a solid history of delivering reliable, quality products. As a leader in the field of Cable Television communications, they provide system operators and integrators serving the cable, broadcast, satellite, IPTV, institutional and professional video markets with comprehensive solutions for the provision of content contribution, distribution and video delivery to homes and businesses. The B-T designs, manufactures, sells and supports an equipment of SD/HD digital video solutions, as well as core analog video and high speed data solutions for distribution over coax, fiber and IP networks. For over 60 years, Blonder Tongue has customized cost-effective solutions for the broadcast, hospitality, education, healthcare, government, sports, entertainment, and enterprise markets. From supporting major broadcast networks to campuses, hotels, stadiums, and airports Blonder Tongue has its customers’ needs covered. Blonder Tongue was founded in 1952, in Old Bridge, NJ by Ike Blonder and Ben Tongue. The company started building Amplifiers or boosters for TV antennas and also building TV antennas. Ike was awarded a patent for inventing the log-periodic television antenna. In the following years, Blonder Tongue expanded their range of products to support the growing Cable TV industry. In 1972, Toner Cable became a stocking distributor for Blonder Tongue and today is their largest stocking distributor worldwide.

Additional information

Weight 24 lbs
Dimensions 25 × 22 × 7 in
