- Compact handheld format
- ASI input & output ports
- Two Ethernet ports
- 5″ TFT touchscreen
- MPEG2 – H.264 (MPEG4)
- Padded nylon carrying case
- Monitors both ASI and IP streams simultaneously
- Auto discovery of transport streams
- Standard alarms
- Closed Captioning decode
- Internal Rechargeable Battery
- Stream, Capture & Playback

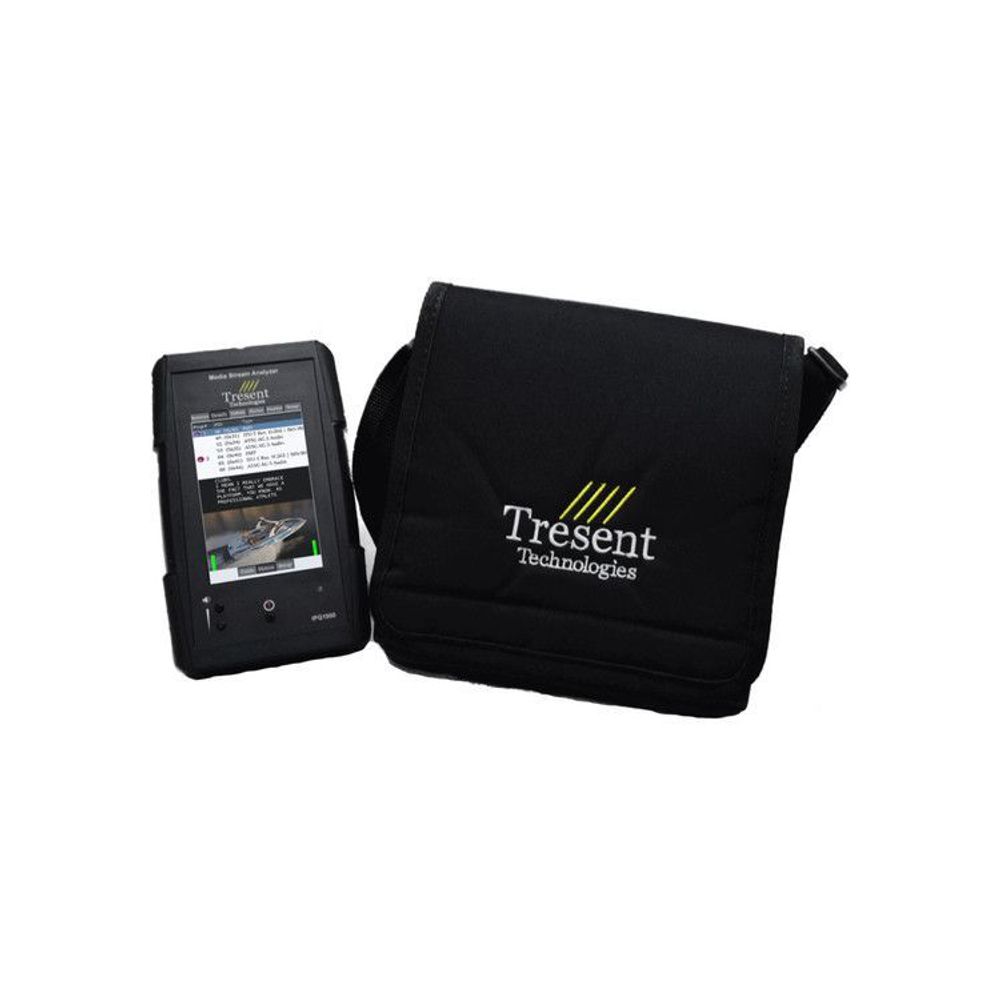

Tresent Technologies - IPQ1000
The IPQ1000 is a handlheld MPEG transport stream analyzer focused on making video over IP more intuitive and easier to diagnose. Quick touchscreen selection of source data from ASI or IP can be decoded and displayed on the LCD screen. Data is also available as MPEG tables in a tree view. Bandwidth is measured by PID, program, and stream. The IPQ1000 contains a comprehensive alarm engine based on the ETSI TR101-290 and ATSC-A/78 standards.
An MPEG2 decoder and an optional Dolby D decoder provide audio and video to the internal LCD touchscreen and speakers for quick verification of your audio/video source.
Dual Ethernet ports for video over IP allows the device to be inserted in line with a suspected problem device. The IPQ1000 will identify all IP traffic by source IP address, destination IP address and destination port number.
|Dimensions||8 × 8 × 2 in|
