LSA2S-204 Dual L Band 1 X 4 Active Splitter
Call for Price Add to cart

RF Design - LSA2S-204 Dual L Band 1 X 4 Active Splitter

Call for Price

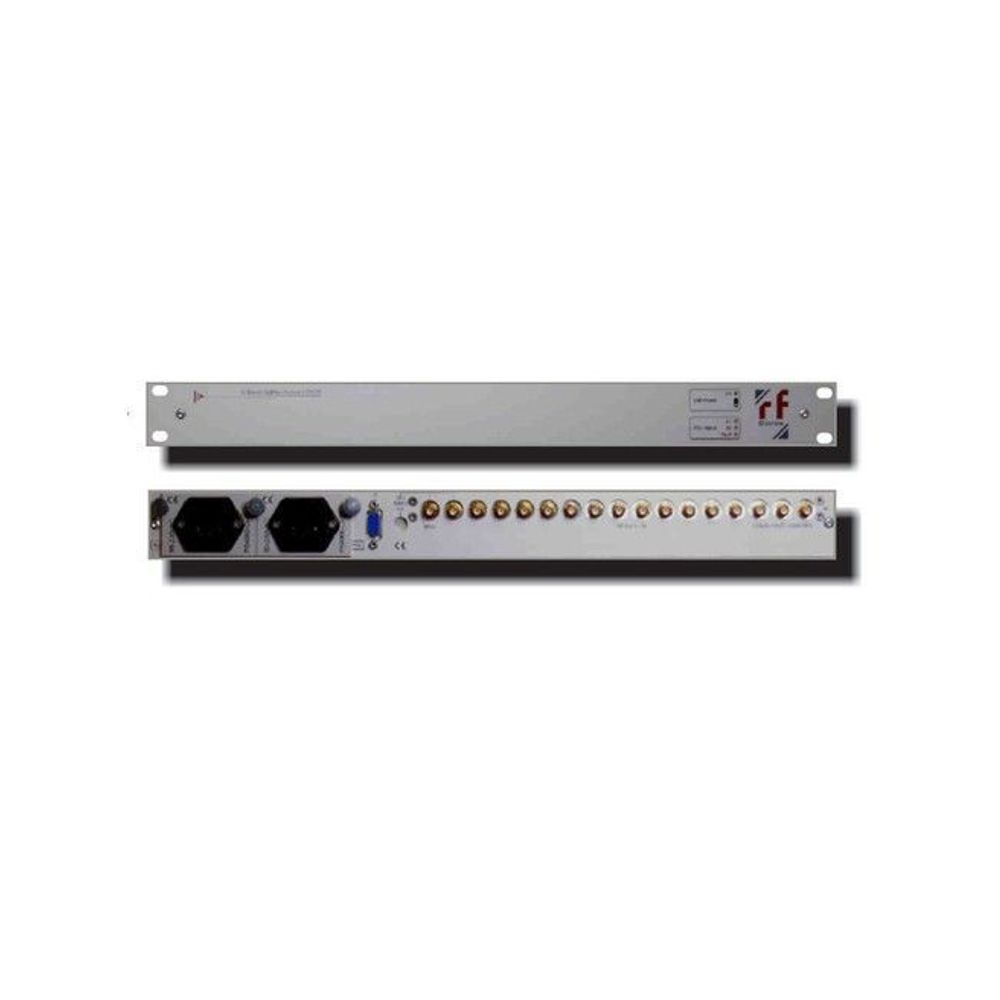

The LSA2S series offers various L-Band splitter units in a companct 1RU/19″ rack-mount chassis. This splitter series features the active splitter units(LSA2S-104/-108/-116/-132) and dual active splitter units(LSA2S-204/-208/-216) allowing L-Band signal splitting from 4 to 32 outputs .The units furthermore provide 10MHz external reference, switchable LNB- supply and are equipped with 2 power-supply units assuring 1:1 hot-swappable power-supply redundancy. Various additional options are also available (see order-information).The LSA2SL-Band splitters are perfectly suited for Satellite-, broadcast and broadband RF distribution infrastructures where flexible signal distribution as well as accurate and high- quality RF performance is relevant. The LSA2S splitters are available with 50Ohm SMA(f) or 75OhmF(f) connectors, 50Ohm N(f) connectors are available upon request (see order-information).


Safe Checkout


  • Space saving 1RU/19″ design
  • Featuring single 1:4, 1:8, 1:16 and 1:32 splitting as well as dual 1:4, 1:8 and 1:16 splitting
  • 10Mhz external reference, rear-side 50Ohm SMA(f)
  • Switchable LNB-supply 18VDC, 400mA, Fuse protected 450mA
  • Front-side LED´s displaying LNB-supply and power-supply status
  • 1:1 power supply redundancy, hot swappable
  • Various Options available


RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.
