SMFTK Single Mode Fiber Test Kit
$402.99 Each Add to cart

Toner Cable - SMFTK Single Mode Fiber Test Kit

$402.99 Each

Now With New Improved Quality Light Source & Power Meter

The Toner SMFTK is a simple easy to use fiber test kit for measuring the loss in singlemode fiber cable and couplers and also to test the output level of fiber transmitters.

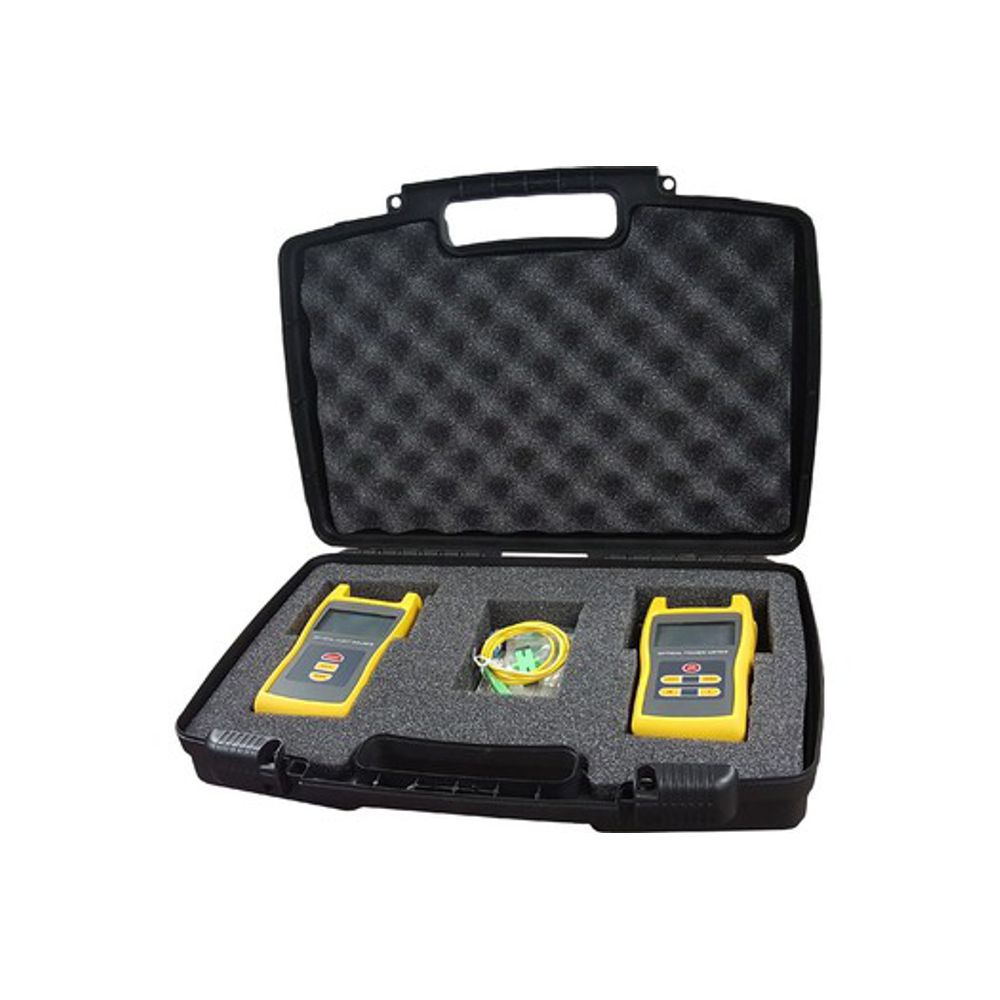

The SMFTK Fiber Test Kit contains an OLS1315A optical light source with both 1310 and 1550 nm wavelengths, a -7 dBm output level and an SC/APC connector adapter. The kit also has an OPM1315A optical power meter with an optical range of -50 to +26 dBm and has 850, 1310, 1490, 1550, and 1650 nm wavelengths for greater versatility. Included in the case are two, 1 meter SC/PC to SC/APC fiber jumpers and an SC/APC mating sleeve for calibration and accurate test setup. Also included are two packs of lint free fiber connector cleaning sticks.

Usually ships same business day
Safe Checkout

Description

  • 1310/1550 nm light source
  • -7 dBm optical output level
  • Compact handheld ergonomic design
  • Auto shut off to conserve battery
  • SC/PC optical adapter*
  • 1310, 1440, 1550 & 1650 nm power meter wavelengths
  • -50 to +26 dBm optical test range
  • Display resolution 0.01 dBm
  • 9 volt battery powered
  • 1 meter test cables with SC/APC mating sleeve
  • Rugged injection molded carrying case
  • Standard test setup instructions

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 4 lbs
Dimensions 22 × 21 × 4 in
