Typical Specifications
Noise Figure 0.7 to 0.9 dB depending on model number
L.O. Stability (over temperature excl. offset) ±10 kHz to ±25 kHz (See HS1000 for < 5 kHz L.O. stability)
Phase Noise (SSB) -75 dBc/Hz at 1 kHz | -80 dBc/Hz at 10 kHz | -95 dBc/Hz at 100 kHz
Input VSWR 2.2 : 1
Output VSWR 2.2 : 1
Conversion Gain 60 dB
Output P1dB 5 dBm
Power Requirements +15 to +24 V supplied through center conductor of IF cable
Current Drain 200 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm | (4.3 x 1.7 x 1.7 in)
Weight 300 g / 10.6 oz
Temperature Range -40°C to +60°C

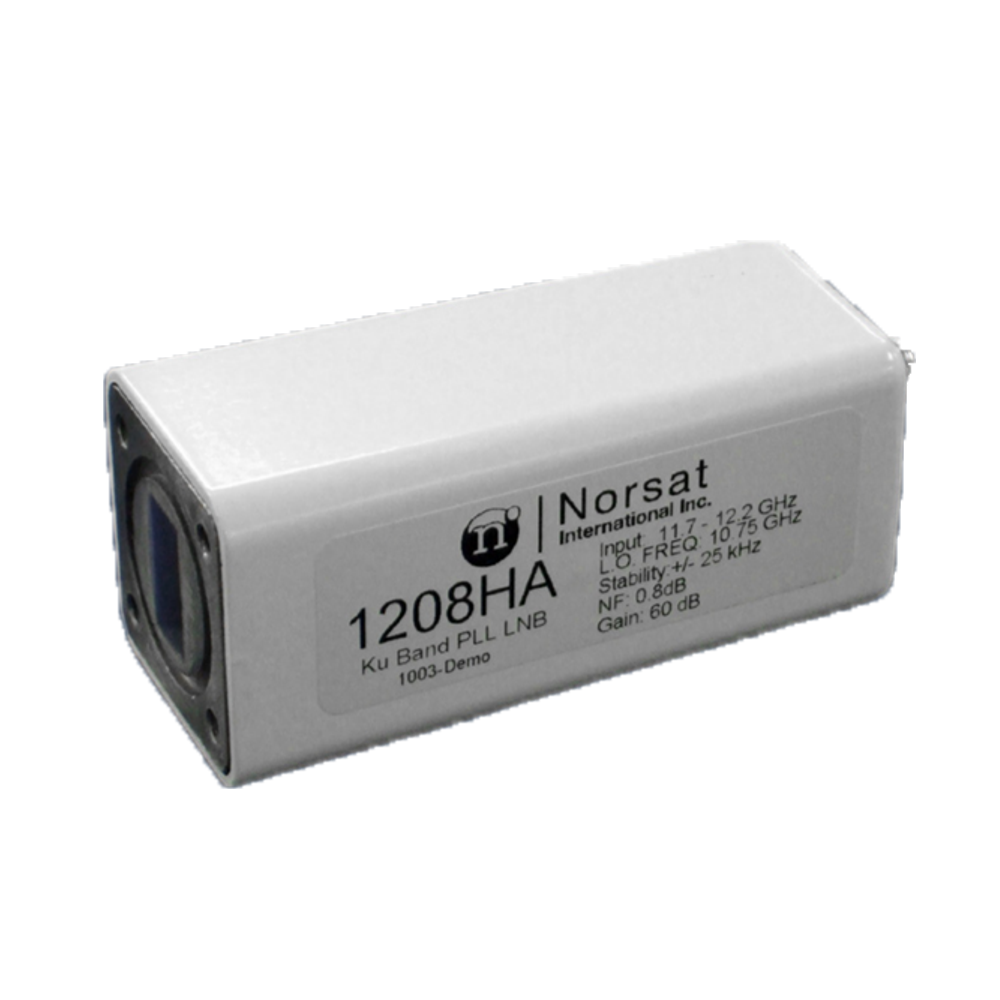

1000H Series KU Band PLL LNB 1000H Series KU Band PLL LNB 1000H Series KU Band PLL LNB; Norsat 1000H Series KU Band PLL LNB Norsat 1000H Series KU Band PLL LNB, 1000H Series, Norsat, 1108, 1107, 1207, 1208, 1109, 1209 1000H Series KU Band PLL LNB 1000H Se
