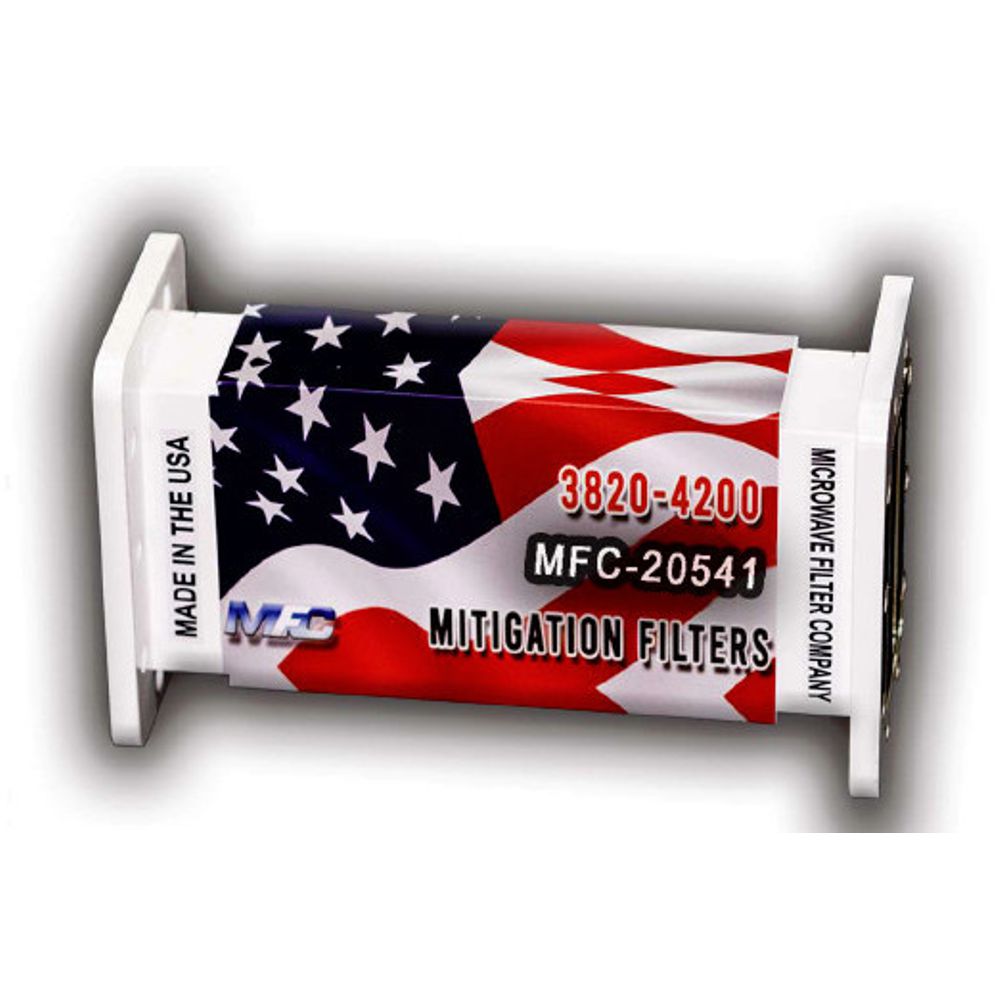

20541 C Band Repack Filter (Red) 3820-4200
$533.00 Each Add to cart

Microwave Filter Company - 20541 C Band Repack Filter (Red) 3820-4200

$533.00 Each

This is the phase I filter that is needed by December 5, 2021

Stops 3700-3820 MHz

Ideal for eliminating interference from 5G and virtually any other potential source of out-of-band interference.

The model 20541 combines innovative design techniques with the solid performance of its renowned predecessors.

Ships in 2 to 4 days
Safe Checkout

Description

Specifications

  • PASSBAND: 3820-4200 MHz
  • INSERTION LOSS:
    FROM 3820-3825 MHz: 1.4 dB MAX, ±0.2 dB
    FROM 3825-4200 MHz: 1.2 dB MAX, ±0.2 dB
  • RETURN LOSS: 20 dB MIN
  • GROUP DELAY VARIATION: 1.45 nSEC TYP ±0.5 MHz FROM ANY FREQUENCY WITHIN PASSBAND
  • REJECTION:
    70 dB MIN FROM 3700 TO 3720 MHz
    60 dB MIN FROM 37200 TO 3800 MHz
    30 dB MIN FROM 3800 TO 3805 MHz
    25 dB MIN @ 4230 MHz
  • FLANGES: CPR229G (INPUT) CPR229F (OUTPUT)

Brand

Microwave Filter Company

"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.

Additional information

Weight 3 lbs
Dimensions 6 × 3 × 6 in
