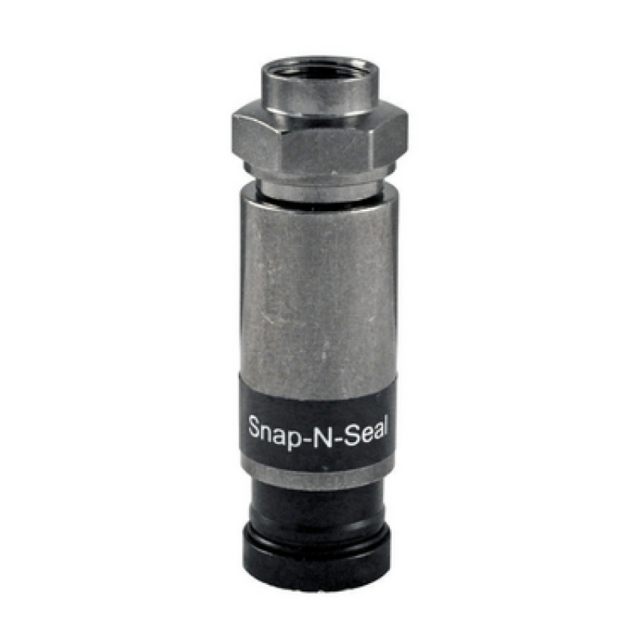

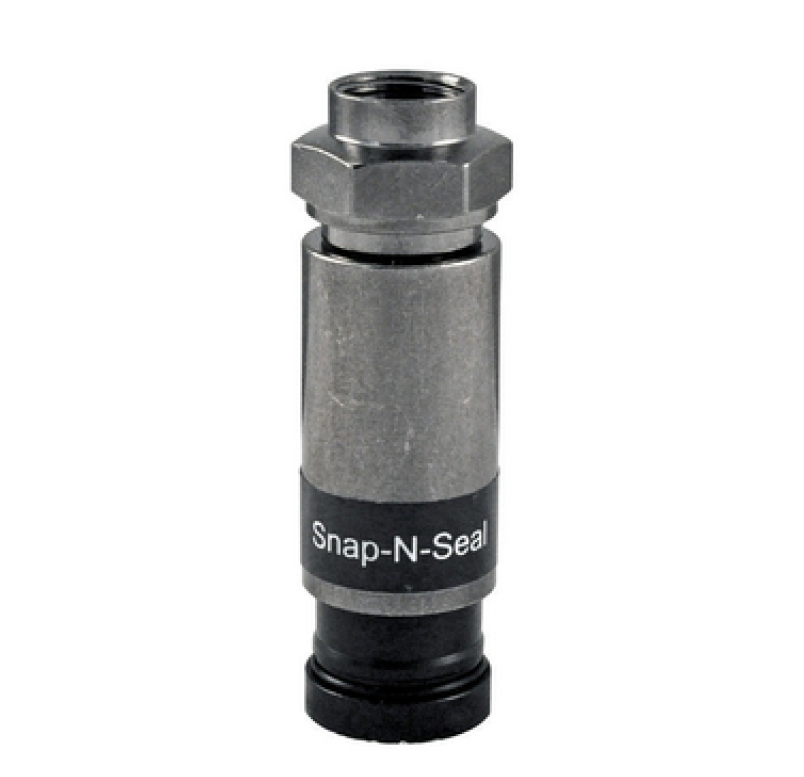

716SNS1P11H (Universal) RG-11 Compression F Connector

$3.22 EACH

The Belden Pro Series 716SNS1P series of F Connectors for RG-11 cable represent the latest in precision compression connector design. All are Universal type so the fit most models of RG-11 Coax cable. Each connector has a 7/16” Hex head and a polymer compression sleeve for secure and easy compression. These connectors are packaged in bags of 25 pieces

Usually ships same business day
Safe Checkout

  • One piece construction, compression type fitting
  • Nickel/Tin Plated Brass Fitting
  • Ethylene Polypropylene  O-Ring
  • Gold Plated Contact
  • Bandwidth 5-3000 MHz
  • Bags of 25 pieces


Additional information

Weight .05 lbs
Dimensions 2 × .25 × .25 in



Quality Coaxial Connectivity Solutions Belden is a global leader in end-to-end signal transmission solutions for data,video and audio applications. Our coaxial connectivity solutions productsfeature superior quality, high-performance compression connectors, tools andaccessories for a variety of coaxial installation applications.The patented design features of our Snap-N-Seal®, Double Bubble™ and F-Conn™connector brands provide a secure, dependable connection from start to finish.• TRUE 360º compression technology creating tools and connectors to work together asa complete, intregrated system• Connectors meet/exceed SCTE-IPC and Bellcore requirements• Connectors provides superior pullout strength• One-piece design option on connectors eliminate loose pins and sleeves• Non-blind entry sleeve and pin-guide in one-piece connectors assist with theinsertion of the cable into the connector• Connectors feature internal compression rings to reduce/eliminate water migration
