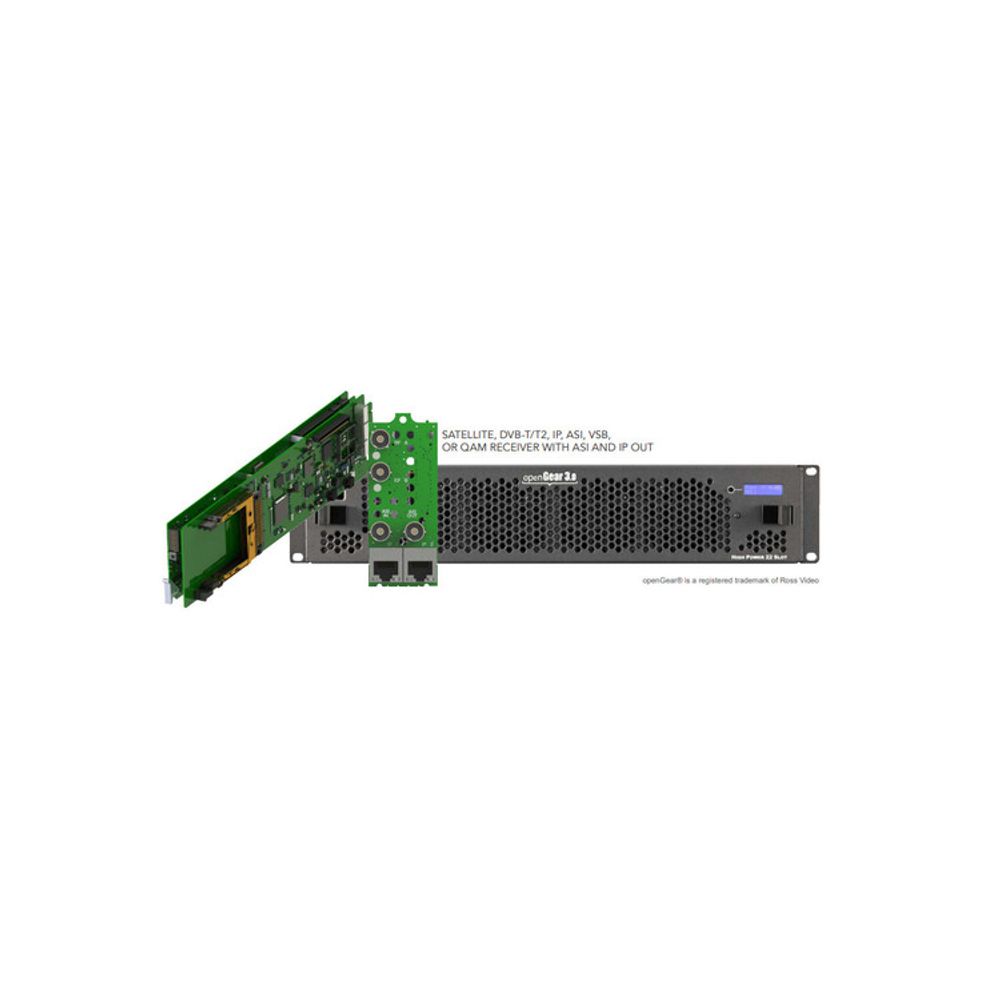

Ag 2600 openGear® Module Receiver Card

Call for Price

The AG 2600 receiver card leverages the DVB-S2, IP, 8VSB/QAM-B, DVB-T/T2/C/C2/ISDB-T, dual DVB-CI, and ASI designs from Sencore’s newest receiver decoder cards to provide a cost effective multi-channel reception and descrambling platform.

The card integrates into the industry-standard 2RU openGear® OG-3 frame, supporting up to 10 receiver/descrambler pairs per chassis. The AG 2600 is also configurable without the DVB-CI option, and with an optional BISS descrambling support, so it can be matched to any reception infrastructure

Safe Checkout

  • Extensive automation support via SNMP status, configuration, and traps, HTTP-based APIs, and Syslog
  • Shared software and feature-set with Sencore 1RU receivers ensure reliability and interoperability
  • Built-in ASI and IP I/O for maximum flexibility
  • Available RF and descrambling modules:
    •DVB-S/S2/S2X Interface with Optional Dual DVB-CI
    •DVB-T/T2/C/C2/ISDB-T Interface
    •8VSB/QAM-B Receiver Designed for A74
    •Codecs auto-detected and switchable on-the-fly
  • Failover between any two inputs
  • Dual, mirrored TS over IP transmission
  • Built-in BISS Mode 1, Mode E, and Multi-key
  • Intuitive, straightforward web interface

Additional information

Weight 6 lbs
Dimensions 11 × 6 × 2 in



Advanced Video Delivery & Signal Transmission Technologies For Broadcast, Cable, Satellite, IPTV, & More Sencore is the leader in the development of high-quality signal transmission solutions for the broadcast, cable, satellite, IPTV, and professional audio/video markets. Their product line of top-rated equipment includes video delivery products, system monitoring and analysis solutions, and test and measurement equipment – all designed to support system interoperability and backed by best-in-class customer support. Sencore meets the rapidly changing needs of modern media by ensuring the efficient delivery of high-quality video from the source to the home. Sencore’s advanced video delivery and signal transmission technologies overcome the complexities to enable consistent, high-quality video distribution. Their solutions offer proven compatibility with a wide range of technologies including analog, digital, HD/SD, MPEG2, H.264, IP, 8VSB, QAM, and DVB-S/S2. Their comprehensive digital video system monitoring products ensure consistent, high-quality content delivery by providing continuous logging and monitoring of multiple signal types in both digital TV and IPTV networks. Broadcast engineers can remotely identify and resolve problems before they occur, respond to alerts and alarms, and quickly isolate the cause of outages with real-time system metrics and comparative analysis of critical measurements and system logs.
