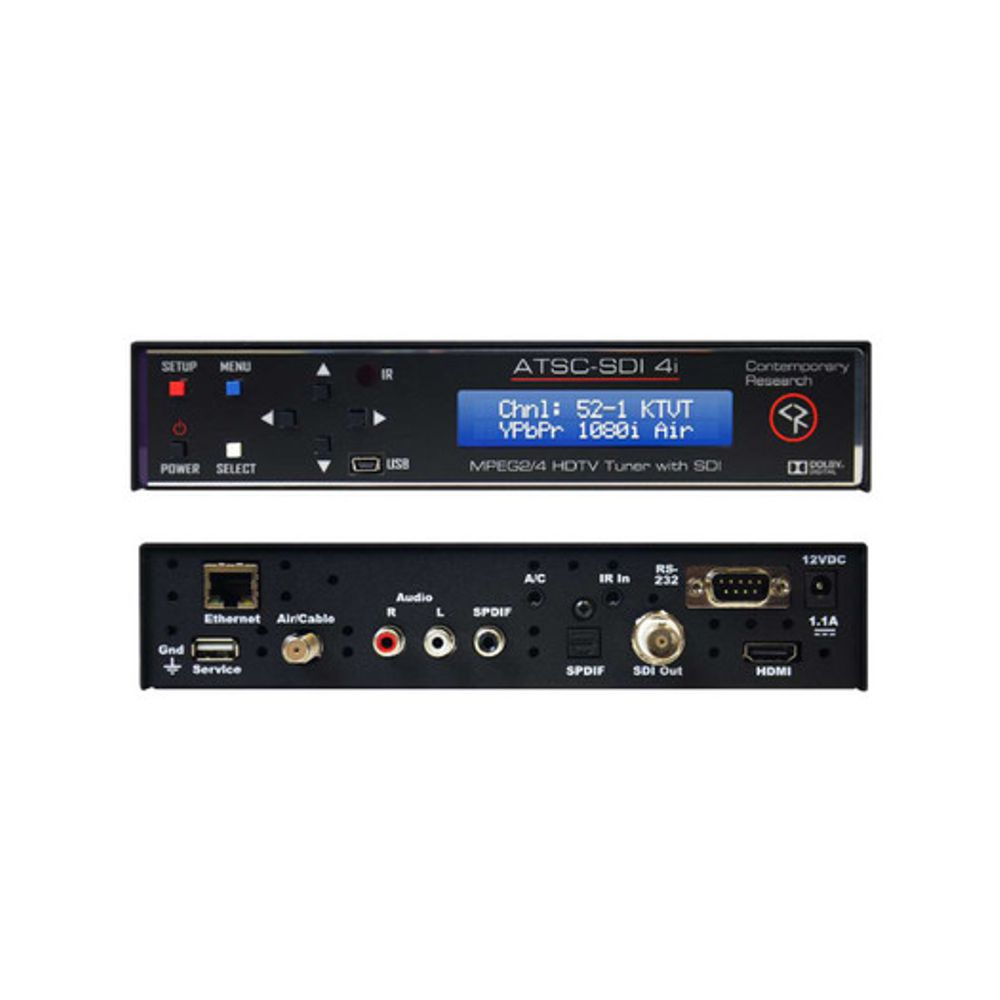

The ATSC-SDI 4i HDTV Tuner, our 3rd-generation ATSC-SDI HDTV tuner, adds new capabilities to the industry-standard ATSC-SDI series. New features include tuning H.264 programs up to 1080p, HDMI output scaling up to 1080p, and IPTV streaming output via Ethernet port. The new tuner is fully compatible with control commands for previous models.
The integrator-friendly HDTV tuner is controllable with 2-way RS-232, IP Telnet and UDP, as well as wireless and wired IR commands. An onboard Web page enables remote configuration, control, and monitoring. A new menu-driven display simplifies setup.
A full-featured, commercial grade HDTV tuner, the ATSC-SDI 4i can receive both digital MPEG-2/H.264 and analog channels, in ATSC, clear QAM, and NTSC formats. Using an optional RF-AB switch, the tuner can switch between antenna and cable feeds.
Tunes analog and digital channels in ATSC, clear QAM, and NTSC formats
Decodes MPEG2 and H.264 digital channels up to 1080p 60Hz
SDI Output – SD/HD/3G
HDMI Output – Type A, Version 1.3
SDI and HDMI output resolutions: 480i, 720p, 1080i, and 1080p, or Auto
All outputs operate simultaneously
1080p fixed at 60Hz frame rate, 1080i and 720p selectable at 60 or 59.94HzPasses through IPTV stream from received digital channel
Coaxial and optical SPDIF digital audio outputs
AC-3, PCM, or Variable PCM audio formats for SDI, HDMI, and digital audio ports
Front-panel and on-screen menus for tuner setup
Web pages for remote setup and configuration
Decodes analog and digital closed captioning
Passes through 608 and 708 closed caption data on SDI output
Rack-mountable two across in 1RU
RS-232 can be daisy-chained to control up to 9 tuners from a single RS-232 port
Meets RoHS and California energy-saving standards
Simple Solutions for System Integration Contemporary Research Corp. was started in 1994 by Scott Hetzler, they design and manufacture intelligent, yet simple solutions for system integration that set the standard for the AV industry. Starting with professional TV tuners and AV routers, the Contemporary Research family of innovations includes cutting-edge HDTV tuners, QMOD HDTV Modulators, Display Express Control Systems, and classroom integration solutions. Created for the systems market, Contemporary Research solutions offer state-of-the-art features, integration-friendly control, and easy-to-use application software, backed with solid technical support and customer service. They have earned an enviable record of innovation, researching future trends, engineering new technology, and delivering contemporary solutions at just the right time. All Contemporary Research products are built in the USA, and are designed to function in demanding, mission critical 24/7 installations. Toner Cable is a stocking distributor of Contemporary Research products.
