DDA-1501D31 Digital Drop Amp, 2 Way 15 dB Gain
$26.55 Each Add to cart

Toner Cable - DDA-1501D31 Digital Drop Amp, 2 Way 15 dB Gain

$26.55 Each

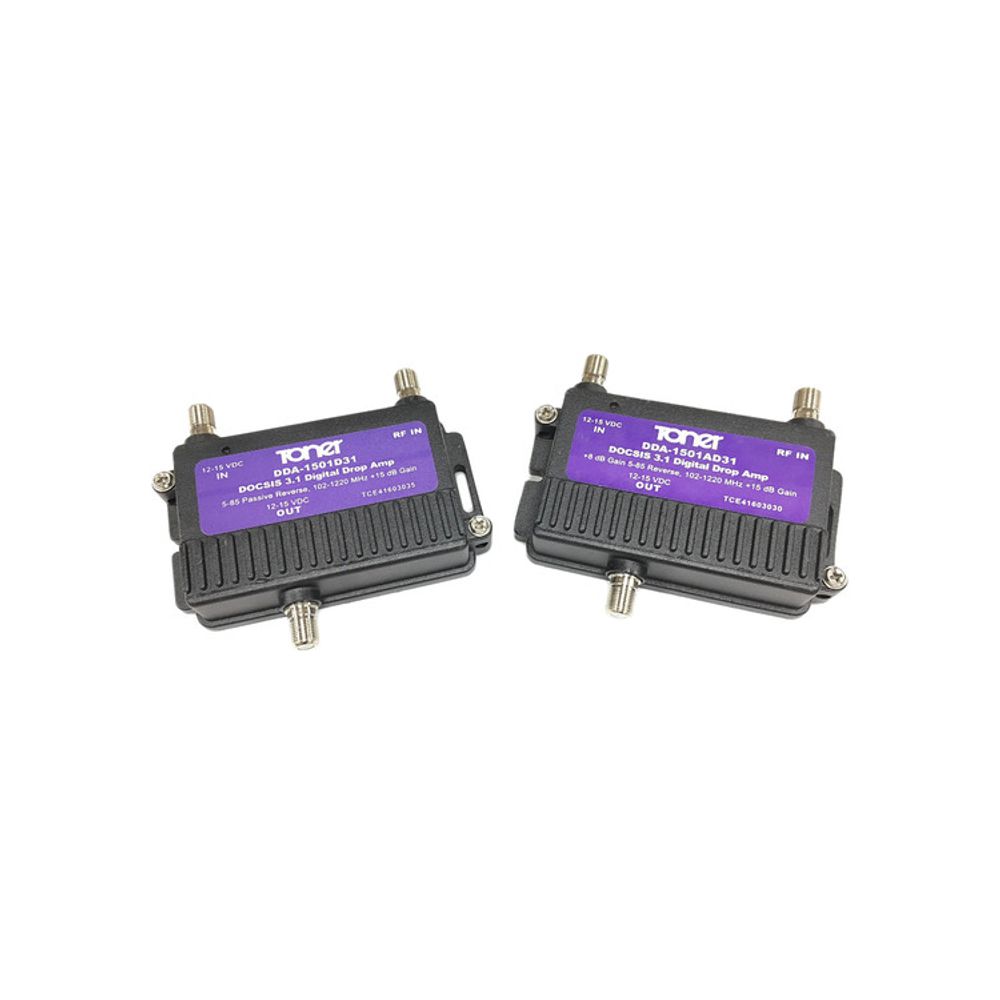

Th e Toner DDA D31 Series Digital Drop Amplifiers are the latest addition to the Toner range of DOCSIS 3.1 compatible products. These drop amplifiers have a frequency range of 5 to 1220 MHz with a reverse or upstream bandwidth of 5-85 MHz. Two models are available, one with passive reverse and one with 8 dB gain in reverse.

Usually ships same business day
Safe Checkout

Description

  • 2 Way Drop Amplifiers
  • 5-1220 MHz
  • 102-1220 MHz Forward
  • 15 dB Forward Gain
  • DOCSIS 3.1 System Compatible
  • 5-85 MHz Reverse
  • Passive or 8 dB Reverse Gain
  • Very Low Distortions
  • Water Resistant Connectors
  • -100 dB RFI
  • 6 KvA Ring Surge Capacity
  • 12-15 VDC Powered
  • 6’ Coax Jumper Included
  • UL Listed Power Transformer Included
  • Remote Powering Via Output Cable

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 1.5 lbs
Dimensions 7 × 5 × 5 in
