DME-400 H.264 Encoder
$1,880.00 Each Add to cart

Opticonn - DME-400 H.264 Encoder

$1,880.00 Each

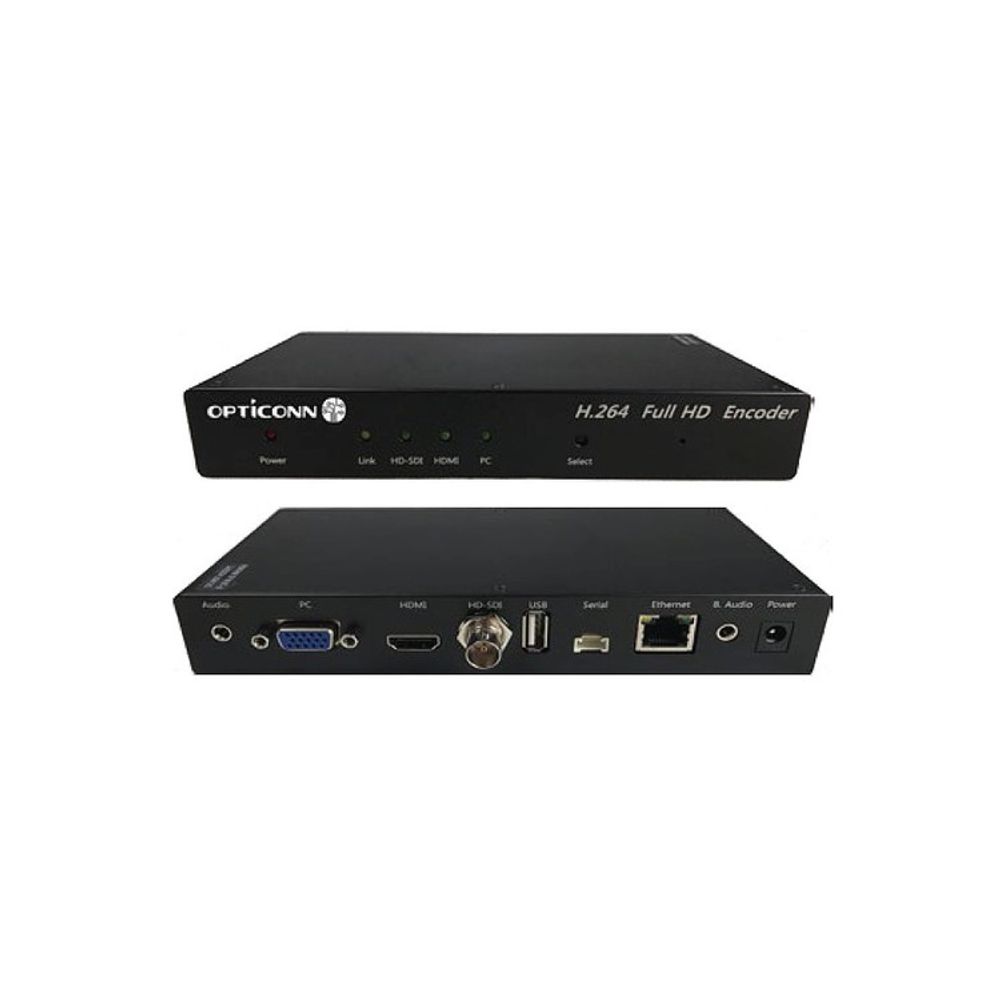

The DME-400 encoder and DMD-400 decoder is the perfect solution for high quality, low latency streaming over IP networks. The flexible design allows a wide variety of signal types/video interfaces to be sent over the network. The DME-400 has 3G-SDI, HDMI and VGA video inputs. Along with video streaming, it supports bi-directional analog stereo audio and RS-232/422 serial data for control. Additionally, it uses a high quality H.264 codec supporting up to [email protected], Full HD video at low bit rates. The DME-400 encoder when paired with the DMD-400 decoder can achieve 80 ms latency for live streaming applications. The DME-400 is the perfect solution for streaming broadcast quality video, audio and RS-232/422 serial data over LAN using UDP or RTP, but is also is capable of RTSP streaming for media server applications. Finally, the DME-400 & DMD-400 has the ability to select inputs on the fly by using the select button on the front panel; easily select between any of the connected video source inputs (3G-SDI, HDMI or VGA) and stream over the IP network.

Ships in 4 to 6 weeks
Safe Checkout


  • Broadcast quality H.264 encoding
  • 3G-SDI, HDMI or VGA video
  • Supports RTP, UDP & RTSP streaming
  • Resolutions up to [email protected] Full HD
  • Extremely low latency of 80 ms (with DMD-400)
  • User friendly, easy to use WebUI
  • Bi-directional audio & RS-232/422 serial data
  • Unicast or multicast streaming
  • Space saving, compact design



Provider of leading-edge, cost effective and advanced technologies to the commercial AV markets. Opticonn offers many years of experience and technical expertise, striving to provide the highest quality solutions for AV over fiber and AV over IP networks. Offering the latest technologies to meet market demands for 4K60, 4:4:4, HDMI 2.0, Display Port 1.2, 12G-SDI, IP streaming, IPTV as well as many other advanced fiber and IP solutions for any AV network requirement.

Additional information

Weight 1.5 lbs
