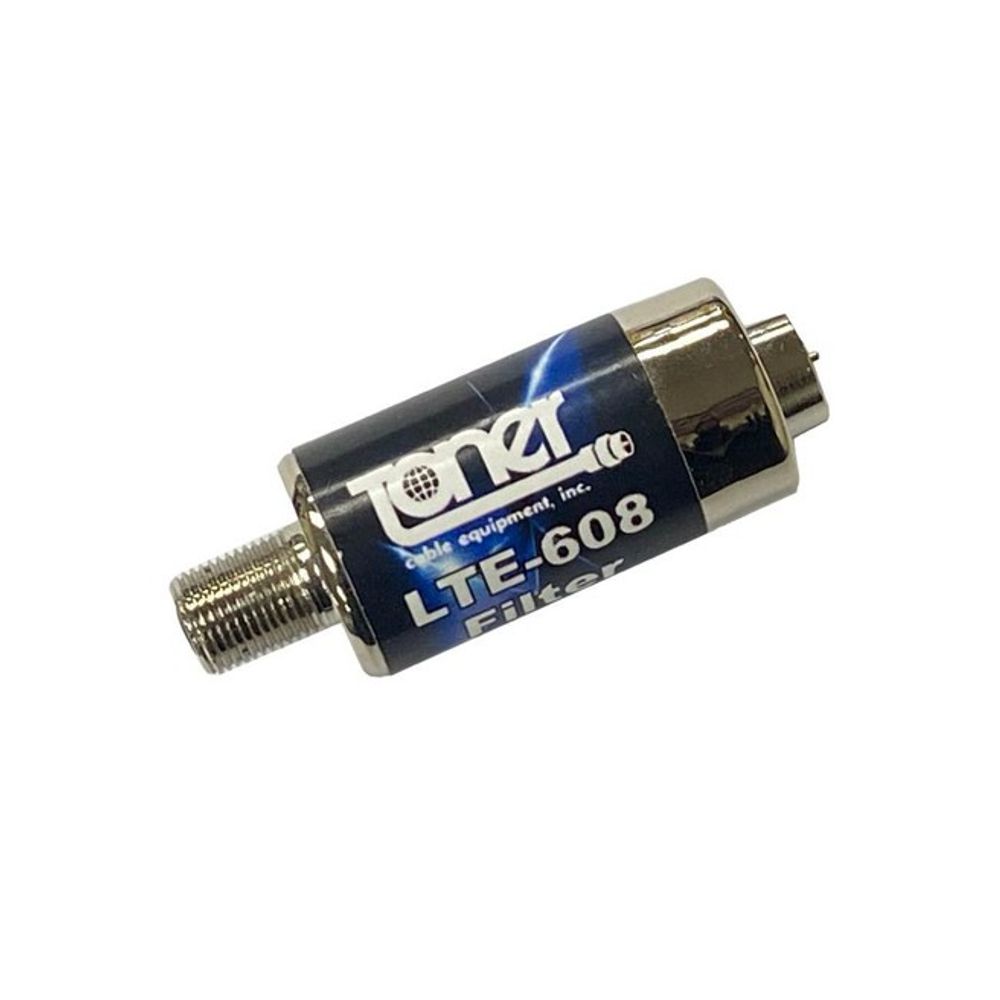

LTE-608 LTE Filter

Toner Cable - LTE-608 LTE Filter

$7.99

The Toner LTE-608 filter that is designed to reduce or eliminate LTE (Long Term Evolution) cell phone signals from UHF frequencies above 608 MHz. With cell phone frequencies now occupying the frequencies above UHF channel 36 @ 602-608 MHz, it may be necessary to eliminate them before they hit your pre-amplifier and or channel processor. This is especially true when trying to receive channels that are some distance away.

Often these may be at low signal levels like -20 to 0 dBmV and the local cell towers may be received at 20 dBmV or more. The strong cellular signals may overdrive the input to a preamplifier or signal processor. By using the LTE filter, you can reduce the unwanted signals by up to 50 dB.

Safe Checkout

Description

  • Bandwidth: 54-862 MHz
  • Passband: 54-608 MHz
  • Stopband: 608-862 MHz
  • Stopband Attenuation: -50 dB
  • Insertion Loss:
    54-572 MHz <1 dB
    572-608 MHz ≤ 4 dB
  • Input Return Loss: ≥ 15 dB
  • Output Return Loss: ≥ 15 dB
  • Mechanical
    Length: 2.25” (57 mm)
    Diameter: 0.78” (20 mm)
    Weight: 1.7 oz (48 grams)
    Connectors: Male and Female F Type

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 1.7 lbs
Dimensions 2.25 × 0.78 × 0.78 in
