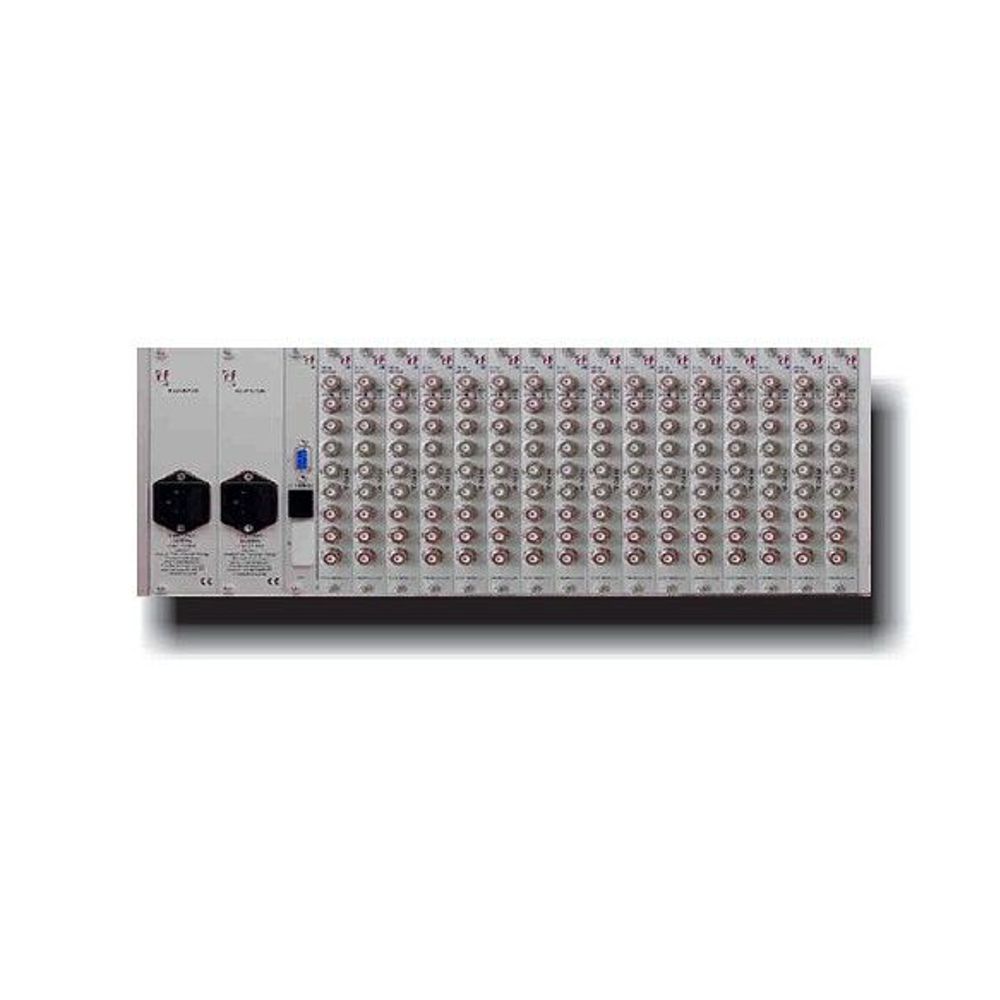

MFC/LSA Series Modular L Band Splitting Solution
Call for Price Add to cart

RF Design - MFC/LSA Series Modular L Band Splitting Solution

Call for Price

The MFC/LSA series represents a modular-type L-Band splitting solution combining the MFC main-chassis (MFC316R2 & MFC416R2) and the corresponding LSA splitter-modules allowing L-Band signal splitting from 4 to 16 outputs (see order information below). The LSA splitter-modules (1:4, 1:8, 1:16) can be inserted into the MFC main- chassis rear-side slots making. Each splitter-module provide 10MHz external reference as well as switchable LNB-supply while the MFC Main-Chassis is Various additional options are also available (see order-information) equipped with 2 power-supply units assuring 1:1 hot-swappable power-supply redundancy. The LSA splitter-modules are available with 50Ohm SMA(f) or 75Ohm F(f) connectors (see order-information).

Safe Checkout

Description

  • Flexible modular L-Band splitting solution
  • Compact and space-saving 3 and 4RU/19″ chassis
  • Splitter-module slots at the rear of the chassis
  • Various splitting modules available 1:4, 1:8 or 1:16
  • Switchable LNB supply 18VDC, 400mA individually for each splitter-module, Fuse protected 450mA
  • Front-side LED´s displaying LNB-supply and power-supply status
  • 1:1 power supply redundancy, hot swappable
  • Various Options available

Brand

RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.
