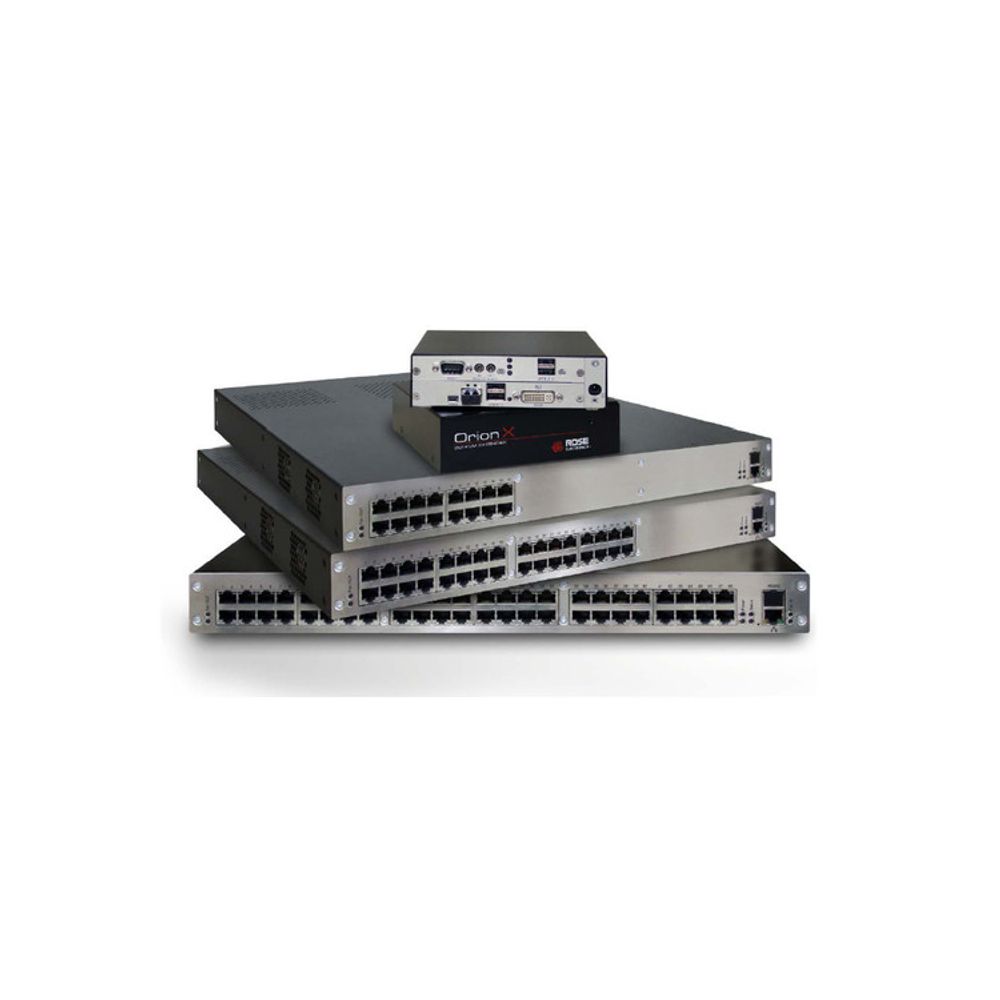

Orion XC

Call for Price

The Orion XC delivers exceptionally crisp and clear video that is visually lossless on a platform that is used to establish connections between users and computing resources. A range of Orion XT transmitter and receiver devices with mixed signal formats facilitates I/O access to the switch, which automatically recognizes and configures each device when it is connected.

The Orion XC switch and external extender devices can be all CATx, all fiber, or a mix of CATx and fiber depending on the switch port density. SDI/SD/HD/3G is also supported with a coaxial interface. A range of common user and PC peripherals can be switched and extended through the Orion XC depending on the transmitter and receiver interfaces selected. The range includes full-speed and high-speed USB2.0 peripherals up to 480Mbps, USB3.0 up to 5Gbps, serial RS232/RS422, analog or balanced audio and digital audio. USB-HID for keyboard and mouse, USB touchscreen and other USB pointing devices is automatically supported.

Expanding an Orion XC installation is not a problem. The included Matrix Grid software automates multi-matrix connections through CATx or fiber tie-lines. In this way, more I/O ports can be added to an existing system or remote users and resources can be connected back to the central system.

Safe Checkout

Description

  • A compact 1U or 2U chassis available with fixed port configurations of 8, 16, 32, 48, 64 or 80 ports, and with CATx, fiber, mixed CATx and fiber, or coaxial I/O interfaces
  • Dynamic port assignment for connected transmitter and receiver devices which come as 2, 4, 6 or 21 card modular chassis.
  • Instant delay-free switching of devices with the same resolution, and visually lossless video quality with no frame dropping up to 4K/60Hz
  • IP management control port and RS232 control supported by a comprehensive API for integration with media controllers
  • Matrix-Grid automates the connection of multiple Orion XC switches in a decentralised network, using either a CATx or fiber links
  • Java based management tool for remote device configuration and management
  • Intuitive OSD is presented on each user display for ease of use and simplified switching
  • Allows mixing of different single-link video formats such as DVI, HDMI, and DisplayPort with a video scaling option between VGA input and DVI output.
  • Optional redundant power supply for added resilience, and rackmountable chassis
  • Supports matrix redundancy for mission critical installations
