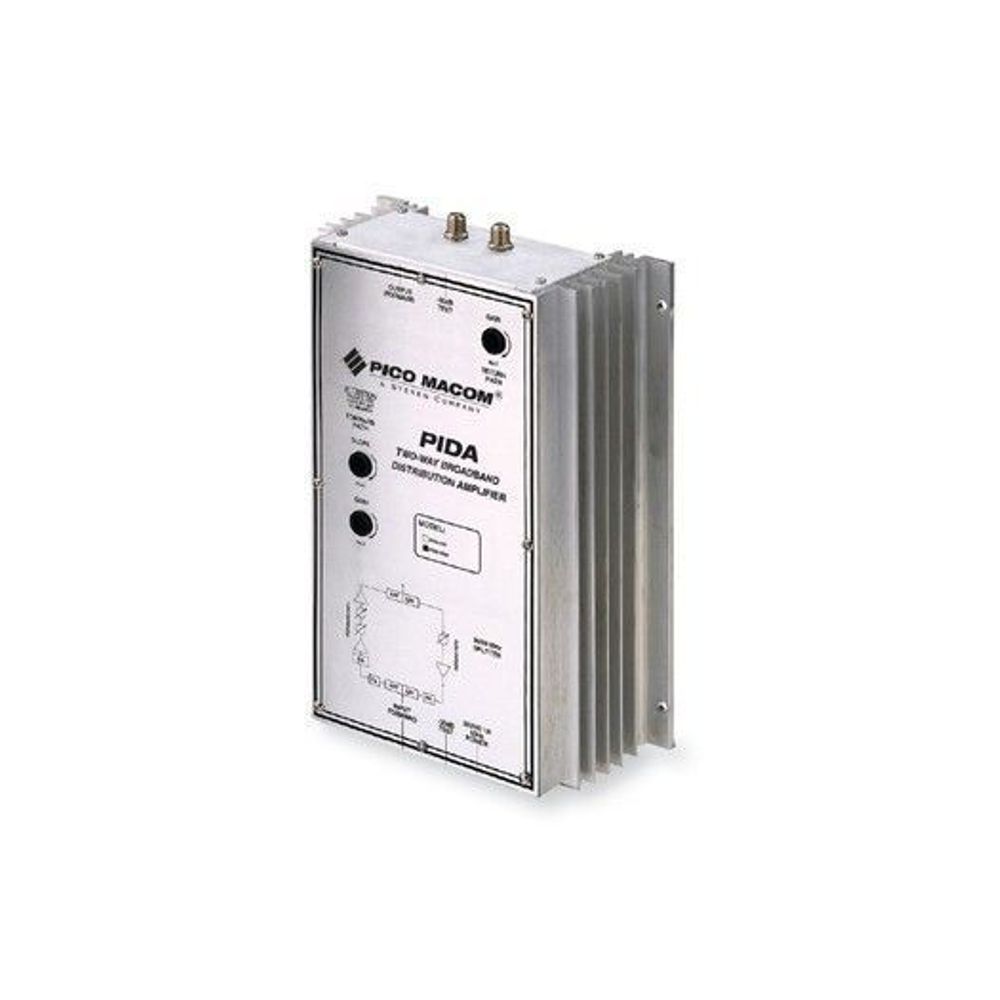

PIDA-1000 Distribution Amplifier 30dB, Reverse Active

Call for Price Each

Broadband Bi-Directional Push-Pull Cable TV Distribution Amplifiers

Safe Checkout

  • 54~1000MHz (CATV 2~158) and 5~36MHz reverse bandwidth (CATV T7~T11)
  • 30dB forward path gain and 20dB or passive reverse path gain (switchable) for maximum flexibility
  • ±0.75dB flatness across band provides low distortion and excellent frequency response
  • Employs dual state-of-the art push-pull hybrid technology for very low distortion, high input and output capability
  • Optional plug-in equalizers and attenuators enable unity gain and slope system balancing for minimum distortion
  • -30dB input and output test points enable simplified setup and performance monitoring without service interruption
  • Built-in lightning and line-voltage surge protection protects the unit from damage
  • External UL approved power supply

Additional information

Weight 7 lbs
Dimensions 18 × 6 × 4 in


Pico Digital/ATX

Committed to providing multimedia delivery solutions for the broadband, satellite, cable and broadcast industries. As a global leader in design, manufacturing and support of high-performance, high-value head-end, infrastructure, distribution and customer premise equipment, Pico Digital is committed to delivering cutting edge technology and products. Through their offerings, Toner Cable is able to bring unprecedented value to our customers – from the world's largest media companies to smaller, local service providers. Pico Digital is a privately held, employee-owned company headquartered in San Diego, CA,and is committed to the success of their customers, and solving real-world business challenges.
