RLC2708L L Band 1 x 8 Active Combiner Fully Redundant
Call for Price Add to cart

RF Design - RLC2708L L Band 1 x 8 Active Combiner Fully Redundant

Call for Price

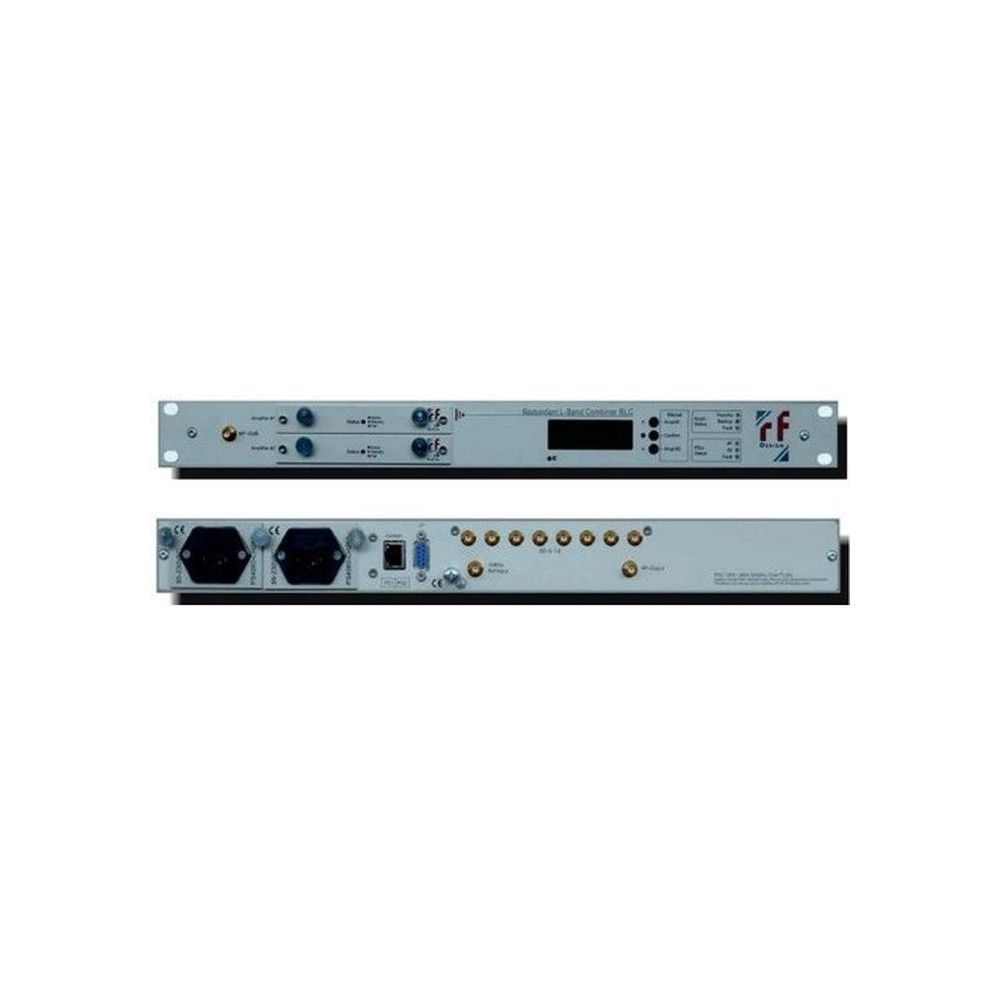

The RLC2708L is a 8:1 L-Band combiner with front-side inserted 1:1 redundant operating line-amplifier modules built into a compact 1RU/19″ rack-mount chassis. The unit features 8:1 L-Band combining while the two redundant operating amplifier modules allow variable gain adjustment so to reach best RF performance within the network. The redundancy switching between these two amplifier modules is done nearly interruption free within a switchover time of less than 5ms. Besides the variable gain adjustment (MGC/AGC) and 8:1 combining the unit also features slope-equalization, 10MHz external reference, RF power monitoring as well as 1:1 redundant power-supply (hot-swappable). The RLC2708L features a flexible and compact RF-distribution solution which is perfectly suited for applications in Teleports, Satellite Earth-Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The unit has a front-side LC-Display/keypads for user-friendly local configuration while front-side status LED´s are indicating amplifier and power-supply status. Remote control and configuration can be done via its rear-side Ethernet-Interface (WEB-GUI, SNMP). The RLC2708L is available with 50Ohm SMA(f) or 75Ohm F(f) connectors (see order-information).

Safe Checkout

Description

  • Space saving and companct 1RU/19″ design
  • 8:1 L-Band combiner & 1:1 operating amplifiers in one unit
  • 1:1 redundant hot-standby operating amplifier-modules
  • Variable gain-adjust -7…+17dB (MGC/AGC), 1dB steps
  • Less than 5ms switchover between amplifier 1 & 2
  • Supports slope-equalization 0…9dB, 1dB steps
  • Front-side monitoring-port (-20dB)
  • Permanent RF-power monitoring (Input/Output) for both amplifier-modules
  • Threshold alarm function and switchable output limiter
  • 10MHz external reference signal, rear-side 50Ohm SMA(f)
  • 1:1 redundant power supply (hot swappable)
  • Local access & configuration via front side LC-Display/keypads
  • Front side status LED´s indicating amplifier- and power-supply status
  • Remote configuration via Ethernet-Interface, RS232/485 (WEB-GUI/SNMPv2c)

Brand

RF Design

RF Design's products are developed with highest quality levels focusing most excellent technical performance. Additionally RF Design is strong in designing customized solutions fullfilling exactly your requirements. Permanent research guarantees high quality and best performance. This includes the selection process of components and the ongoing design optimization of mechanical parts. Steady prototyping and intensive test periodes are ensuring best results in terms of functionality , specifications and performance.

Additional information

Weight 18 lbs
Dimensions 22 × 14 × 5 in
