RF Design - RLS2716L L Band 16 way splitter with redundant amplifier

Call for Price

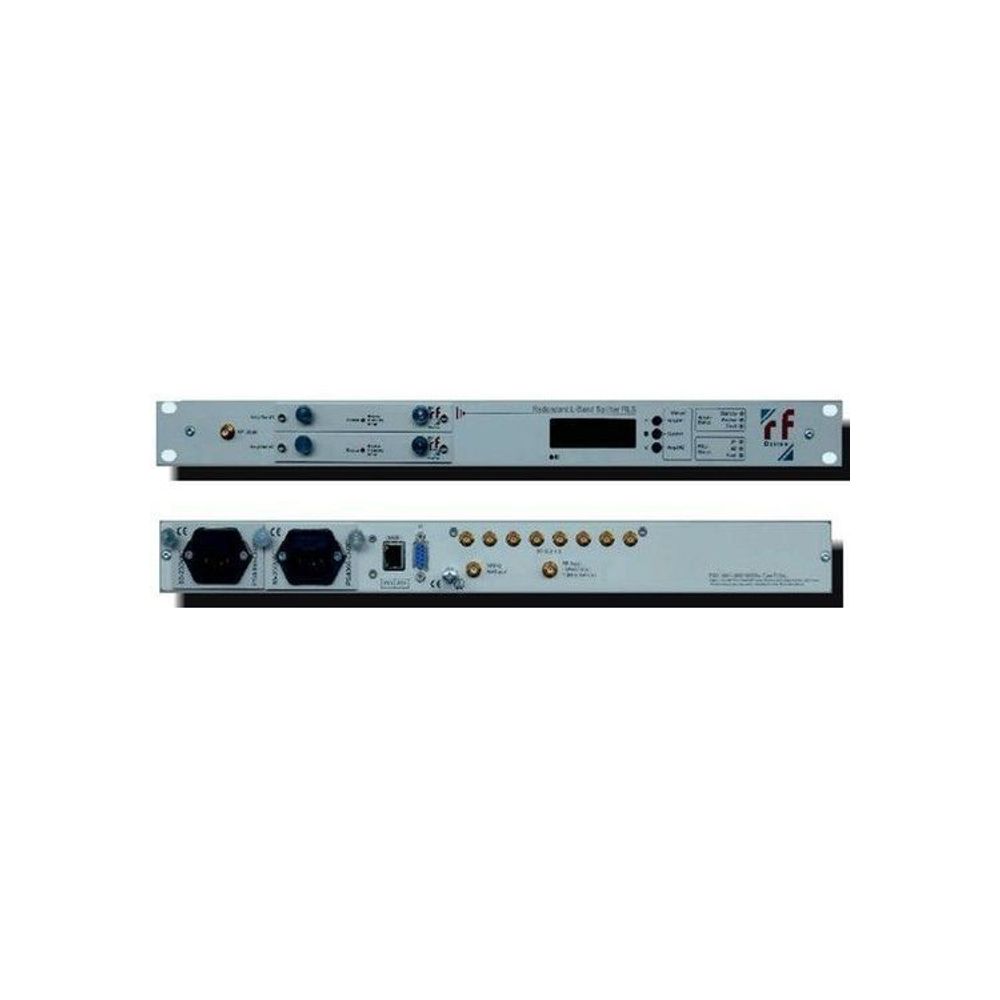

The RLS2716L is a 1:16 L-Band splitter with front-side inserted 1:1 redundant operating line-amplifier modules built into a compact 1RU/19″ rack-mount chassis. The unit features 1:16 L-Band splitting while the two redundant operating amplifier modules allow variable gain adjustment at each of the 16 outputs so to reach best RF performance within the network. The redundancy switching between these two amplifier modules is done nearly interruption free within a switchover time of less than 5ms. Besides the variable gain adjustment (MGC/AGC) and 1:16 splitting the unit also features slope-equalization, 10MHz external reference, RF power monitoring, LNB-powering as well as 1:1 redundant power-supply (hot-swappable). The RLS2516L features a flexible and compact RF-distribution solution which is perfectly suited for applications in Teleports, Satellite Earth-Stations, as well as Broadcast- and Broadband facilities wherever accurate RF power, highest stability and availability is necessary. The unit has a front-side LC-Display/keypads for user-friendly local configuration while front-side status LED´s indicating amplifier and power-supply status. Remote control and configuration can be done via its rear-side Ethernet-Interface (WEB-GUI, SNMP). The RLS2516L is available with 50Ohm SMA(f) or 75Ohm F(f) connectors (see order-information).

Safe Checkout

Description

  • Space saving and companct 1RU/19″ design
  • 1:16 L-Band splitter and 1:1 operating amplifiers in one box
  • 1:1 redundant hot-standby operating amplifier-modules
  • Less then 5ms switchover between amplifier 1 & 2
  • Variable gain-adjust -11…+13dB (MGC/AGC), 1dB steps
  • Less then 5ms switchover between amplifier 1 & 2
  • Supports slope-equalization 0…9dB, 1dB steps
  • Front-side monitoring-port (-6dB)
  • Permanent RF-power monitoring (Input/Output) for both amplifier-modules
  • Threshold alarm function and switchable output limiter
  • 10MHz external reference signal, rear-side 50Ohm SMA(f)
  • Switchable LNB-power supply (13/15/18V, 22kHz, 400mA)
  • LNB current monitoring (400mA) with alarm shut-off
  • 1:1 redundant power supply (hot swappable)
  • Local access & configuration via front side LC-Display/keypads
  • Front side status LED´s indicating amplifier- and power-supply status
  • Remote configuration via Ethernet-Interface, RS232/485 (WEB-GUI/SNMPv2c)



Order Information

  • RLS2716L: 1:16 L-Band splitter with 1:1 redundant Line Amplifier, 1RU/19″, 50Ohm SMA(f)
  • RLS2716L-75: 1:16 L-Band splitter with 1:1 redundant Line Amplifier, 1RU/19″, 75Ohm F(f)



Technical Specifications

  • Dimensions: 1RU/19″, 260mm deep
  • Power supply: 85…230V, 50/60Hz 1:1 redundant (hot-swappable)
  • Power consumption: <10W
  • Frequency range: 950…2150MHz (L-Band)
  • Input/Output connectors: 50Ohm SMA(f) or 75Ohm F(f)
  • Input Return-Loss: 14dB min.
  • Output Return-Loss: 18 dB min.
  • Flatness: ±0.5dB typ., ±1dB max.
  • Variable Gain adjust: -11…+13dB (Acc. ±0.25dB) 1dB steps (MGC/AGC)
  • Slope equalization: 0…9dB, 1dB steps
  • Max. RF output power: +9dBm (@50Ohm) +7dBm (@75Ohm)
  • Noise figure: 5dB @ 13dB gain
  • IMA3 @ +7dBm: < -36dBc
  • 1dB Compression point: +10dBm
  • Output limiter: adjustable -40dBm…+0dBm
  • L-Band splitting config.: 1:16
  • Input Isolation: 25dB (50Ohm) 20dB (75Ohm)
  • Monitoring port: -6dB (front-side)
  • 10MHz reference: External, rear 50Ohm SMA(f) *Internal upon request
  • LNB-supply: 13/15/18V, 22kHz, 400mA
  • Access/Control: LC-Display/keypads, 100Mbit Ethernet-Interface, RS232/485 (WEB-GUI, SNMPv2c)
  • Status LED´s: Amplifier & PSU monitoring
  • Operating temper.: 0…45°C
  • Storage temperature: -10°C…70°C
  • Humidity: 90% non-condensing
