- Ka/Ku bandwidth: 250 to 2150 MHz
- Automatic Gain: Adjustable window
- DC & 22 kHz/DiSeQc Passing: low insertion
- Selectable Slope Pre-Emphasis: 8 or 12 dB
- LED Signal Metering: Blinking Red, Green, Red
DBS signals need amplification to a constant level for multiple distribution locations.

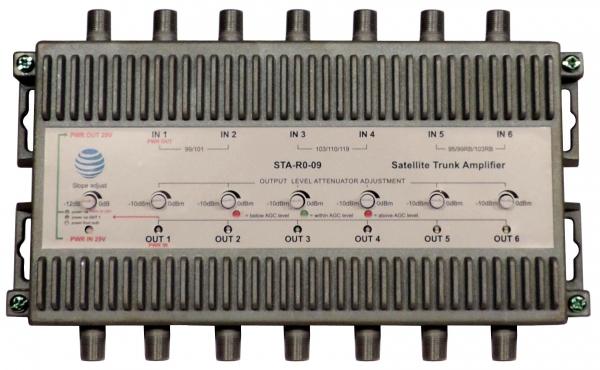

Model TAMP 6 provides an automatic gain controlled output that is user adjustable from -15 dBm to -24 dBm @ 2150 MHz. Slope is field selected to either 12 dB or 8 dB.
At the minimum output setting, the LED indicators turn Green with an minimum input of -52 dBm. At the maximum output setting, the LED indicators turn Green with an minimum input of -44 dBm.
Model TAMP6-T24 includes power adaptor PS241000A. DC power is directed to the 18 V input for line powering of amplifiers above. Model TAMP6-T12 includes power adaptor PS121000A.
Model TAMP 6 amplifiers are spaced at (4) floor increments when used with model SDMST6XX taps per floor. Automatic gain simplifies the design and installation knowing that the amplifier output is locked when with the signal level LED lights are Green.
The model SDMST6XX taps are used to couple signal from the trunk. The tap output is the tap value less than the trunk level at the point of insertion. Each tap adds insertion loss. An additional TAMP 6 amplifier is added when the tap level is too low for a SWiM® multi switch.
|Dimensions||12 × 6 × 3 in|
