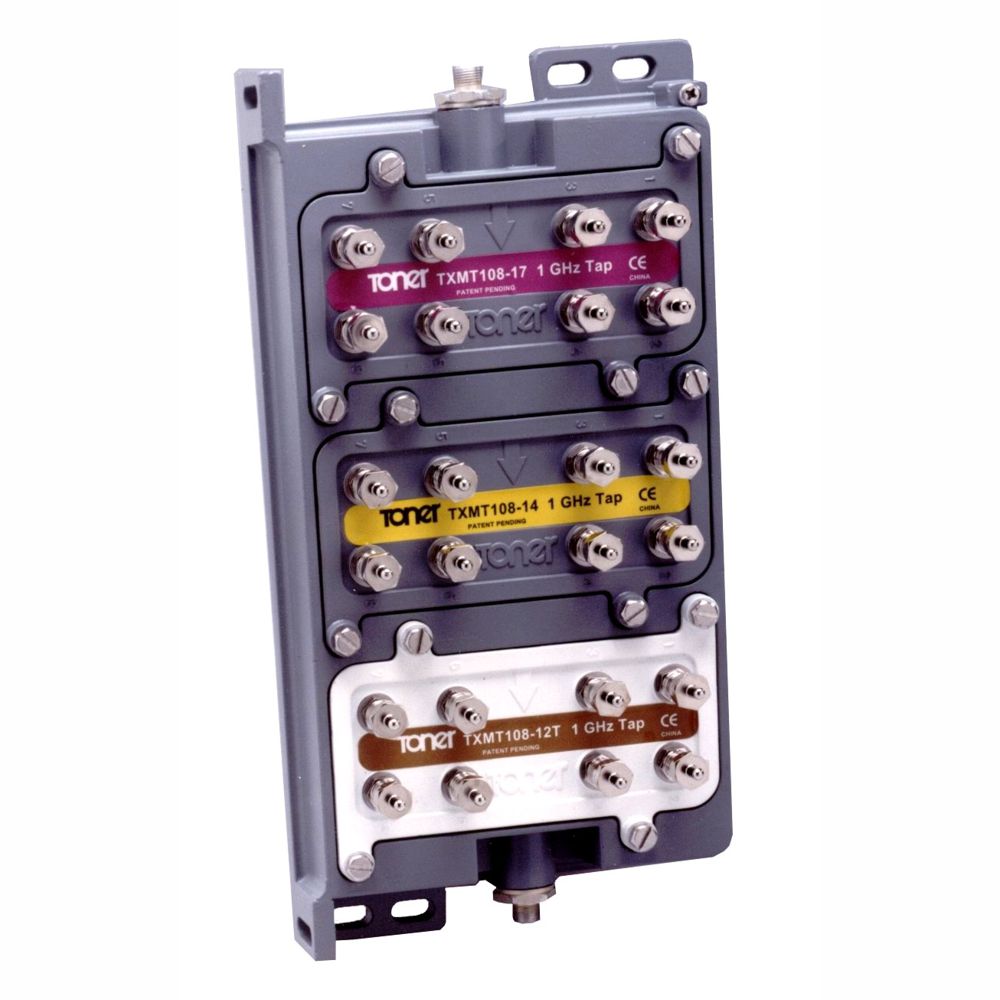

TXMT-3H Total Tap Housing, holds 3 tap plates
$59.00 Each Add to cart

Toner Cable - TXMT-3H Total Tap Housing, holds 3 tap plates

$59.00 Each

The Tap Assembly to Suit Your Needs

The Total Tap is the only fully modular, custom configurable tap designed to serve from 2 to 48 subscribers. By using the Total Tap, You have the ability to configure the tap plates and values the way you need to, in order service your customers based on your system design. No other tap in the industry gives you this flexibility.

The Total Tap is a completely new concept for the distribution of signal from one central location to up to 48 different locations (subscribers). The Total Tap features a precision die cast aluminum housing that has six tap cavities for the installation of six plug in tap plates to provide service for 2 to 48 locations (subscribers).

Each tap cavity can accept one of several types of 2, 4 or 8 port tap plates, blank plates, equalizer plates or amplifier plates. With this combination of options available in each of the six tap cavities, an almost unlimited range of configurations is available.

The Total Tap housing has a 5/8” entry fitting at each end so the tap can be used in several different configurations. The housing can be fed from one end and use a terminating plate in the last position. The housing can be fed from one end with the other end being an output. Or, the housing can be fed from both ends using terminating plates back to back.

Usually ships same business day
Safe Checkout

Description

  • Modular Assembly
  • RF Bypass Circuitry
  • Six Different Tap Locations
  • Input From Both Ends
  • Wide Spaced F Ports
  • 2 to 48 Tap Ports
  • Compact Design
  • 2, 4, or 8 Port Tap Plates
  • Equalization
  • Ease of Installation
  • -100dB RF Shielding
  • Baked Acrylic Finish
  • Stainless Steel Hardware
  • 1 GHz Bandwidth
  • Power Passing Housing
  • US Patent # 6292371

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 3.5 lbs
Dimensions 14 × 9 × 9 in
