Wade Antenna - WL14-69/S Broadband UHF antenna

$595.00 Each

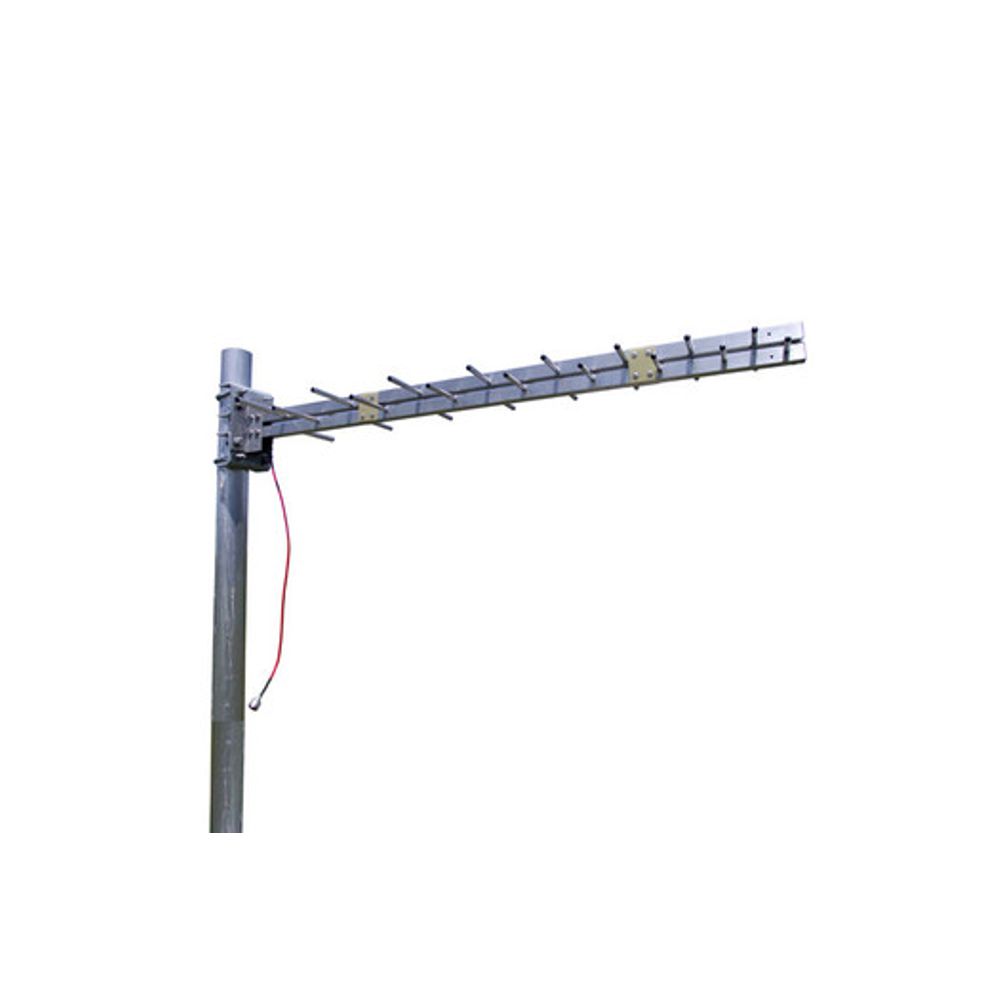

the WL14-69/S is a broadband UHF antenna that provides optimum performance over the 470-800 MHz UHF band. This is a cantilever mount antenna for ease of installation on a tower leg. The 75 Ohm feed point is sealed within the boom. A short length of cable is fitted with a standard “F” connector for connection to the down lead. This light weight, aluminum high quality antenna is small in size and big on performance. this antenna is rugged enough to survive ice buildup when installed high up on a tower.

Usually ships same business day
Safe Checkout

Description

  • FREQUENCY RANGE 470-800 MHz
  • CHANNELS 14 to 69
  • GAIN 11 dBi
  • IMPEDANCE 75 Ohm
  • VSWR <1.25:1
  • FR:BK RATIO >25 dB
  • POLARIZATION H or V
  • H. BEAM WIDTH 46 deg.
  • V. BEAM WIDTH 65 deg.
  • SIDE LOBE SUPPRESSION >30 dB
  • CONNECTORS “F” Connector
  • STD. MOUNT 3/8” U-bolts to fit up to a 2-7/8” O.D. Pipe

Brand

Wade Antenna

Wade Antenna specializes in the VHF/UHF cable television antennas and Wi-Fi 802.11 telecommunications antennas. The Wade Log Antenna was developed over 50 years ago and was tested by the Grand Alliance in 1996 and found to be the optimum antenna for digital off-air reception. With progressive leadership that emphasizes customer service through sales, marketing, research and innovation, Wade delivers unrivalled service and satisfaction alongside leading edge technology.

Additional information

Weight 10 lbs
Dimensions 45.25 × 6 × 11 in
