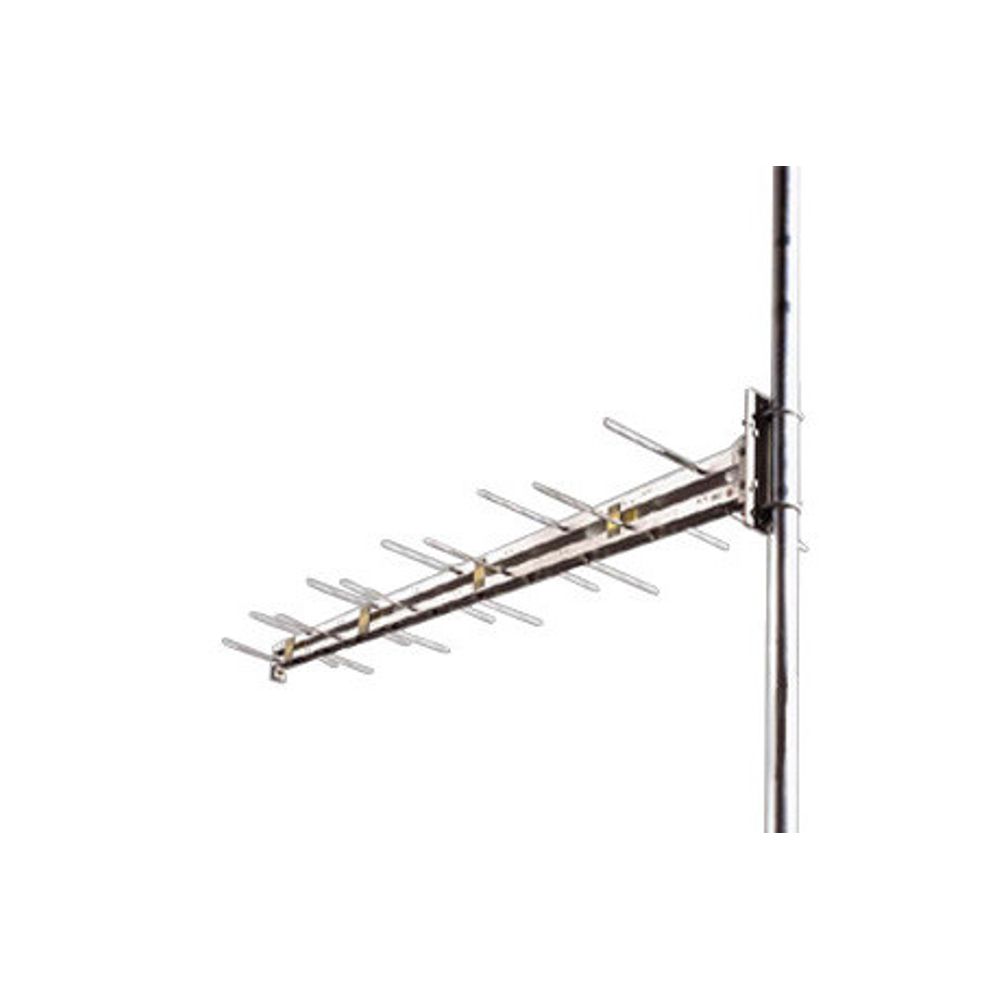

WL7-13/S VHF Highband Log Periodic Antenna
$1,430.00 Each
Our single high band model provides optimum performance over the entire VHF high band. This sturdy antenna gives excellent performance with reliable, trouble free operation. A newly designed feed point accepts a standard 75 Ohm CATV housing connector.
- Pattern predictability
- Maximum rejection of interfering signals
- Corrosion resistant material
Ships in 3 to 5 days
- Gain: 11.5 dBi
- Frequency: 174-216MHz
- Channels: 7-13
- HPBW Horizontal: 50°
- HPBW Vertical: 70°
- VSWR Max: 1.25:1
- Impedance: 75 ohm
- Polarization: Horizontal or Vertical
- Connector Type: F Connector
- Number of Elements: 10
- Longest Element: 33.6 in (85.3 cm)
Additional information
| Weight | 28 lbs |
|---|---|
| Dimensions | 100 × 9 × 5 in |
Brand
Wade Antenna
Wade Antenna specializes in the VHF/UHF cable television antennas and Wi-Fi 802.11 telecommunications antennas. The Wade Log Antenna was developed over 50 years ago and was tested by the Grand Alliance in 1996 and found to be the optimum antenna for digital off-air reception. With progressive leadership that emphasizes customer service through sales, marketing, research and innovation, Wade delivers unrivalled service and satisfaction alongside leading edge technology.
