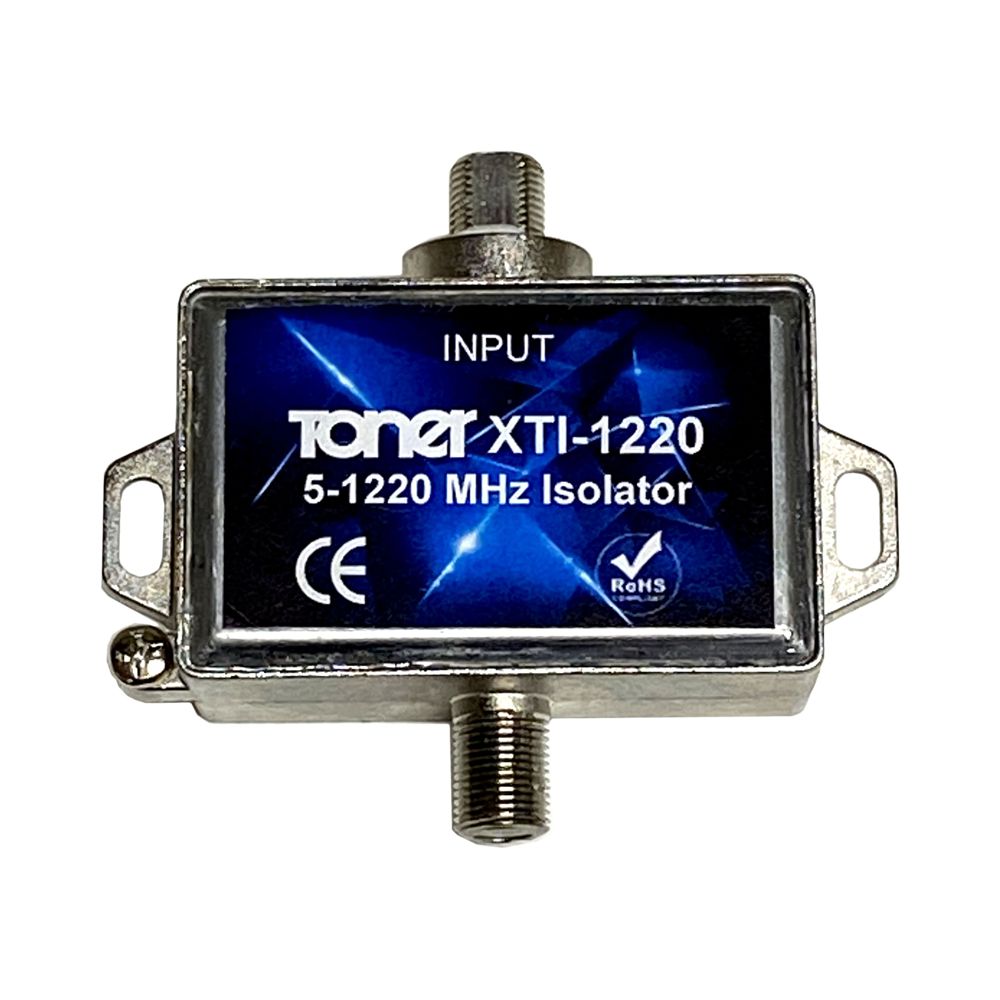

XTI-1220 Galvanic Isolator 1.2 GHz

Toner Cable - XTI-1220 Galvanic Isolator 1.2 GHz

$4.95

XTI-1220 galvanic isolator has a frequency range of 5-1220 MHz and current suppression of 500A,

Safe Checkout

Description

  • Frequency Range 5 – 1218 MHz
  • Insertion Loss 5-1000MHz < 0.8 dB, 1000-1218MHz < 1.0 dB
  • Return Loss 5-1218MHz > 20 dB
  • RF Shielding 5-1218MHz 85dB Typ
  • Galvanic Isolation 2120 VDC Inner(input)-inner(output),outer(input)-outer(output) < 0.2 mA
  • Galvanic Isolation 230 VAC Inner(input)-inner(output),outer(input)-outer(output) < 8.0 mA
  • Firing Voltage 65 V
  • Current Suppression 500A (2x10us)
  • Response Time 1 ns
  • Dimensions¬†(mm) 38W x 60L x 24H

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 0.5 lbs
Dimensions 2.5 × 1.5 × 1 in
