12GDA 12G/6G/3G/HD/SD-SDI Distribution Amplifier
$519.75 Each Add to cart

AJA - 12GDA 12G/6G/3G/HD/SD-SDI Distribution Amplifier

$519.75 Each

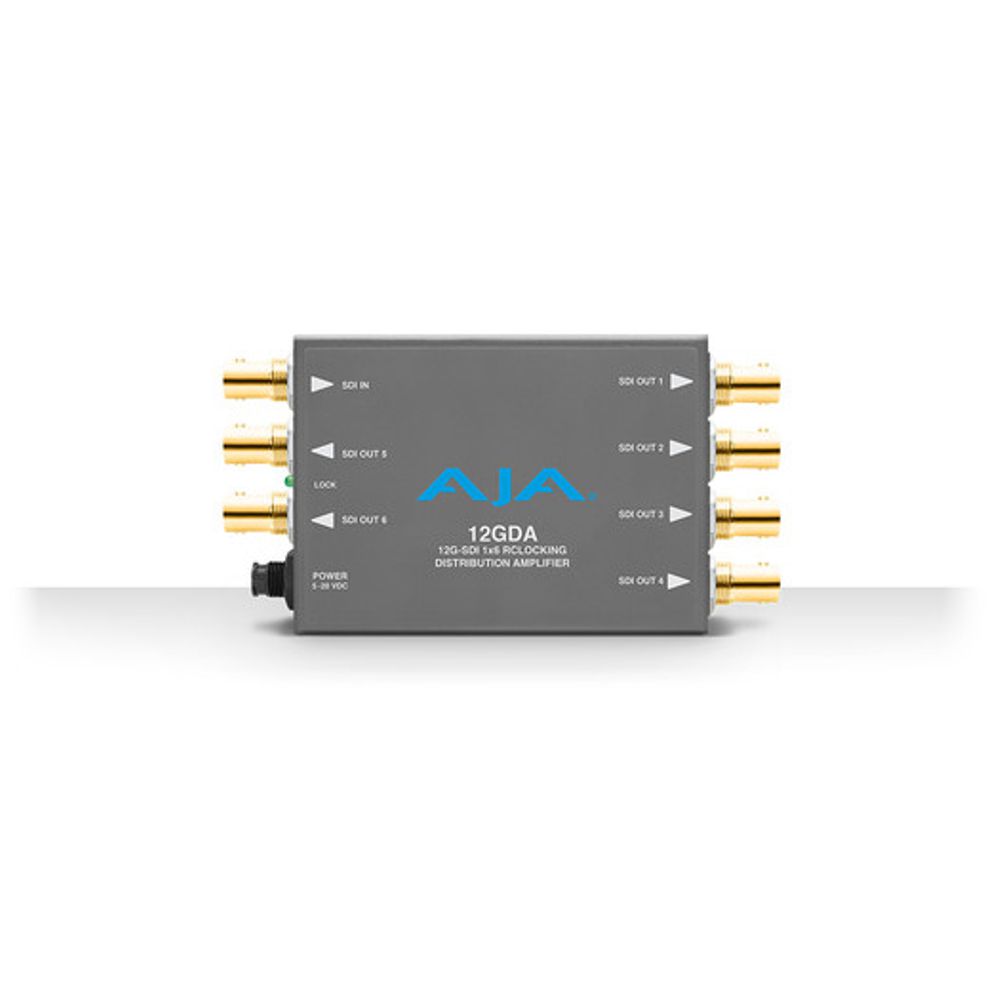

12GDA is a miniature 1×6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Ships in approx. 1 week
Safe Checkout

Description

  • Compact 12G-SDI distribution
  • Six separately buffered outputs
  • Miniature size
  • 12G cable equalization (1694 coax)
  • 12 Gbps, 70m
  • 6 Gbps, 120m
  • 3 Gbps, 190m
  • 1.5 Gbps, 195m
  • 270 Mbps, 405m
  • 12G/6G/3G/HD/SD-SDI input, auto sensing
  • Passes all ancillary data
  • DWP-U-R1 power supply included
  • Five year warranty

Brand

AJA

Digital Video Solutions AJA Video Systems is a leading manufacturer of high-quality and cost-effective digital video acquisition, interface, conversion solutions for professional broadcast, production and post-production. AJA simplifies professional digital video workflows with a line of award-winning products designed and manufactured in Grass Valley, California. AJA was founded by engineer John Abt in 1993. Today the company employs over 200 people worldwide, building industry-leading video capture cards, digital recording devices, video routers, frame synchronizers and scalers, digital converters. AJA’s engineering has consistently supported advancements in broadcast technologies as well as format standards to provide video professionals with future-proof workflow solutions.

Additional information

Weight 3 lbs
Dimensions 8 × 5 × 3 in
