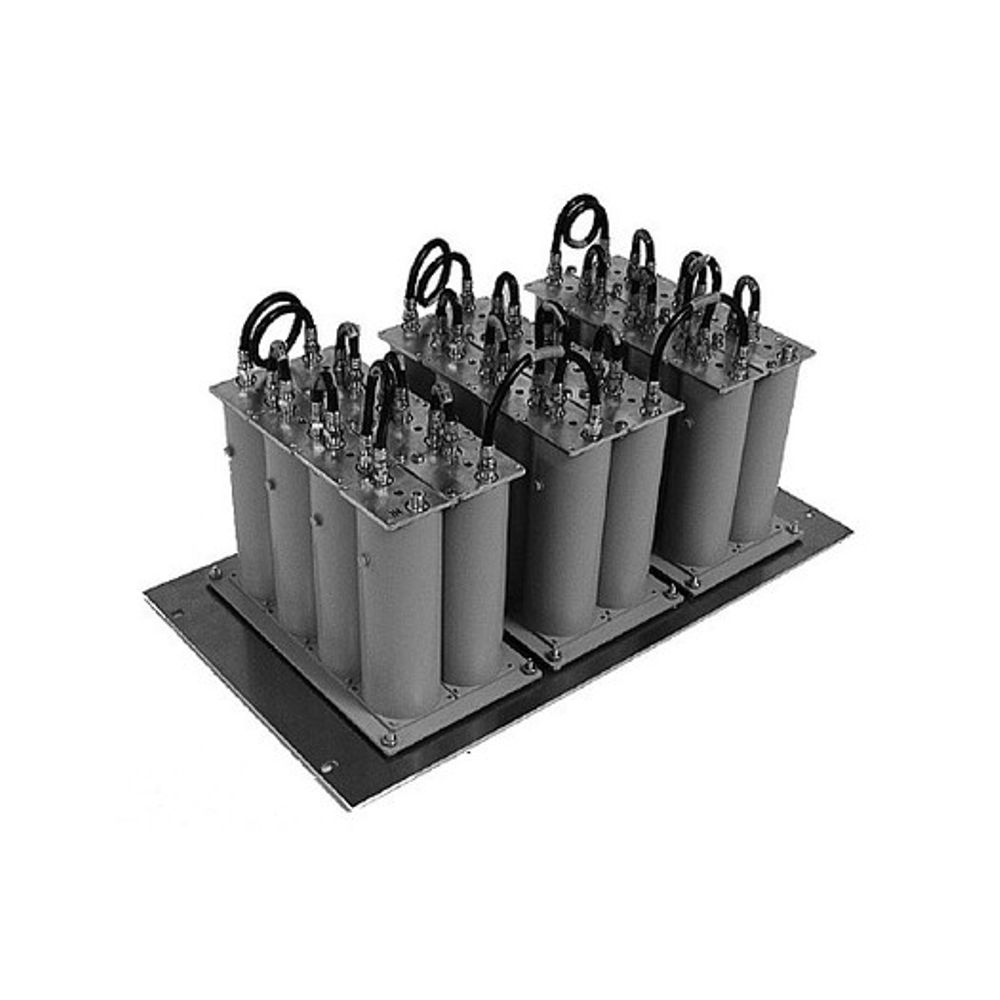

17700 Series Brickwall QAM Channel Deletion Filter
Call for Price Add to cart

Microwave Filter Company - 17700 Series Brickwall QAM Channel Deletion Filter

Call for Price

Deletes an entire QAM channel for the purpose of reinserting alternate programming (e.g. – Instructional, Security Camera, etc.).

Safe Checkout

Description

Product Features:

  • Utilizes High “Q” Components for Optimum Performance
  • Preserves Adjacent QAM or Analog Channels
  • Operating Bandwidth: 5 MHz to 1 GHz
  • Available in Plate Mount or Rack Mount Configurations
  • Multi-Channel Configurations Available Upon Request

Specifications:

  • Channel Availability: 2 – 135
  • Channel Rejection: 40 dB (Min.)
  • Adjacent QAM Channel Loss: 3 dB (Typ.); 4dB (Max.)
  • Adjacent QAM Channel Delay Variation: 400 nS (Max.)
  • 75 ohms / F-Female Connectors

Brand

Microwave Filter Company

"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.
