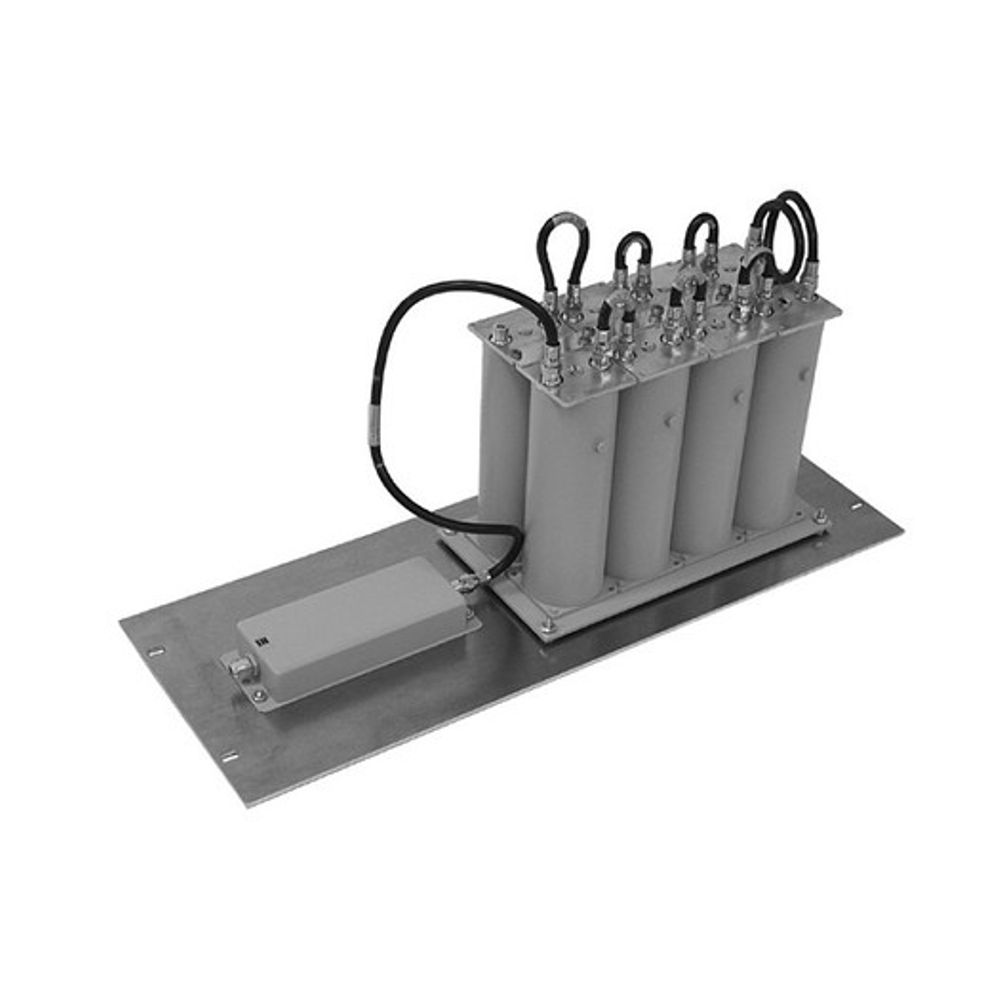

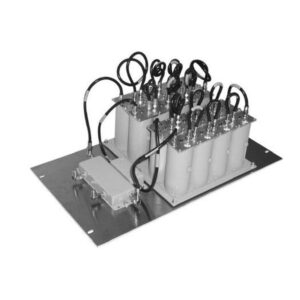

19128L Brickwall QAM Low Pass Filter
Call for Price Add to cart

Microwave Filter Company - 19128L Brickwall QAM Low Pass Filter

Call for Price

These filter series’ consist of a combination of “brickwall” channel deletion components and lowpass (or highpass) components. Each combination results in a “brickwall” lowpass (or highpass) filter assembly for adjacent QAM channel operation.

The primary application is to delete an existing group of contiguous channel programs for the purpose of reinserting new programming (i.e. – cameras, educational programming, etc.), while preserving adjacent QAM channel programming.

Safe Checkout

Description

Specifications:
Available Channels:  CATV Channels 2 – 158
Passband Loss:  4 – 6 dB Approx @ Passband Edge Channel 1 – 3 dB Typ in Remainder of Passband
Passband Flatness:  3 dB Typ @ Passband Edge Channel
Group Delay Variation:  500 nS Typ @ Passband Edge Channel
Stopband Attenuation:  40 dB Min @ Stopband Edge Channel 50 dB Typ in Remainder of Stopband
Operating Temperature Range:  +13ºC to +33ºC
Impedance:  75 ohms
Connectors:  F-female

Rack Panel (or Rack Chassis) Mounted for Indoor Use

Brand

Microwave Filter Company

"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.
