3367 BandStop Filter
$125.00 Each Add to cart

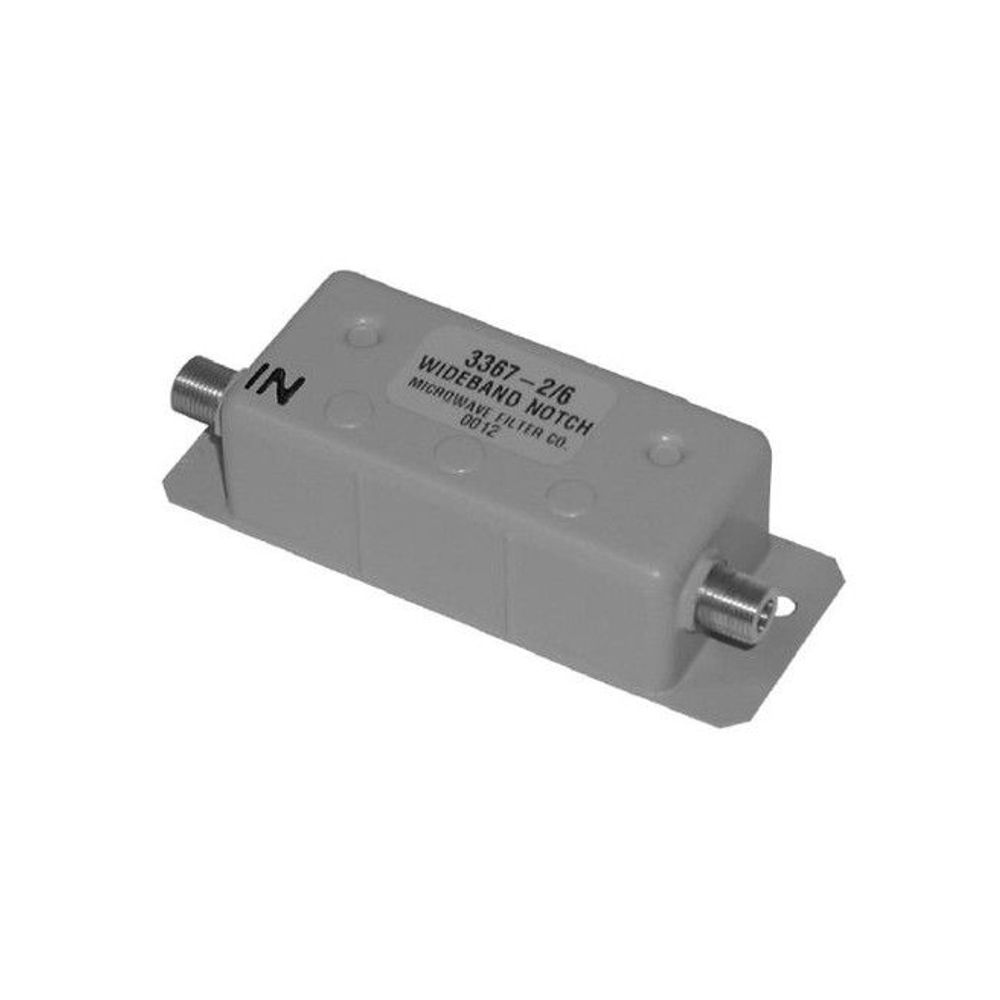

Microwave Filter Company - 3367 BandStop Filter

$125.00 Each

These filters suppress wide, contiguous bands within the VHF spectrum. They
suppress several channels to block viewing or for insertion of new programming
where a guardband is allowed. These units are AC/DC passing (500 mA Max).

Ships in 2 to 4 days
Safe Checkout

Description

Specifications:

  • Baseplate Dimensions: 4″ x 1.5″ or 6.125″ x 2.25″ based on unit selected
  • Rack Mount Available Upon Request
  • 75 Ohm F connectors
  • Available in over 15 standard channel configurations
  • 50 dB Rejection (typical)
  • 4 dB Insertion loss

Brand

Microwave Filter Company

"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.

Additional information

Weight 6 lbs
Dimensions 8 × 3 × 3 in
