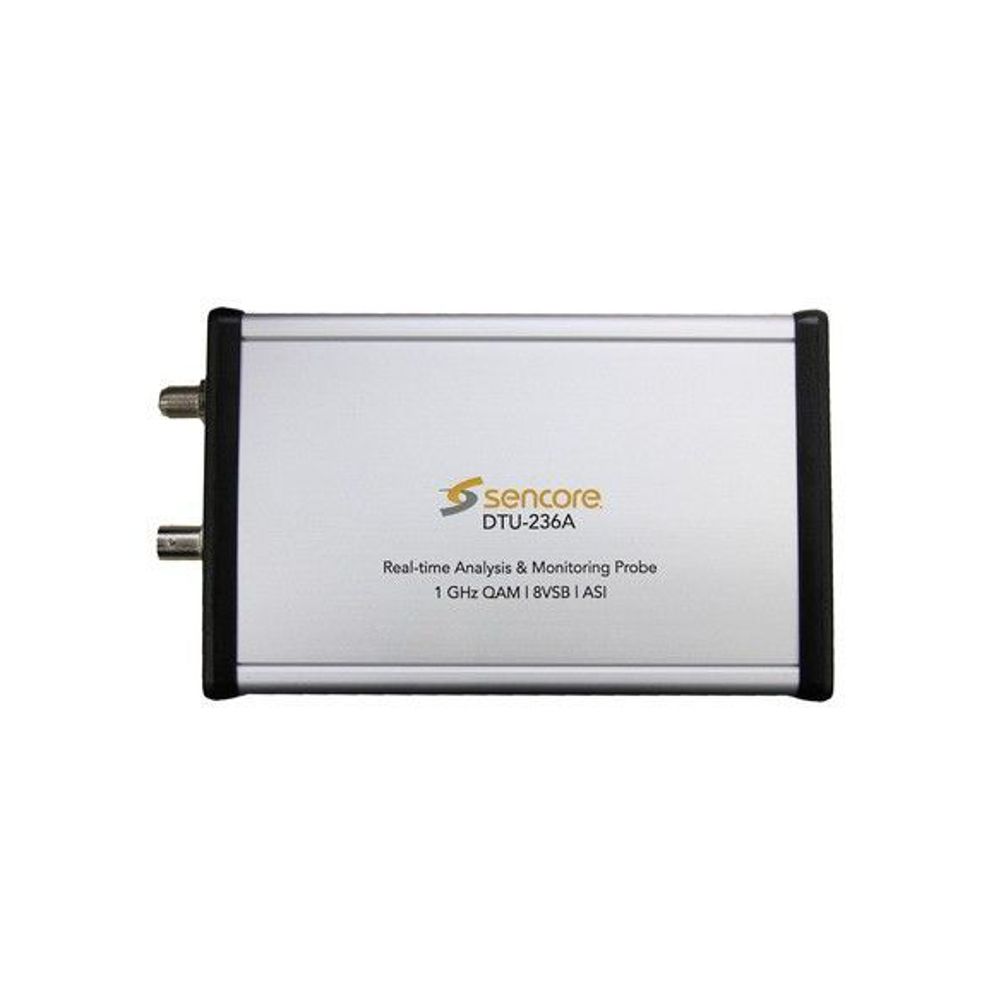

DTU-236A 1 GHz QAM/8VSB/ASI USB Probe
$3,795.00 Each Add to cart

Sencore - DTU-236A 1 GHz QAM/8VSB/ASI USB Probe

$3,795.00 Each

Sencore’s DTU-236A RF Probe and RFXpert software are a comprehensive solution designed to provide real-time analysis and monitoring of terrestrial and cable signals (8VSB, QAM A/B/C and NTSC RF channels). The RFXpert software is intended to be loaded by the end-user on a PC or laptop and work in conjunction with the DTU-236A RF Probe. RFXpert provides complete RF analysis and logging, along with transport stream recording. RFXpert provides easy-to-read spectral displays, both constellation and eye diagram displays, and the ability to turn off and on 8VSB tap equalization to see the uncorrected signal being received.

Usually ships same business day
Safe Checkout

Description

  • True demodulated digital reading for MER, Pre-BER, Post BER and EVM
  • A proof-positive method of signal documentation or drop-point comparisons with programmable, user defined logging and auto-inspection capabilities

Adding StreamXpert to a DTU-236A makes for a cost-effective and user-friendly MPEG2/H.264 transport stream analyzer. Signals can be analyzed from either the ASI or RF inputs of the DTU-236A and can be validated against industry standard ETR101-290 templates. Transport streams can also be captured in the field with StreamXpert for later use.

  • Real-time analysis, monitoring and recording of MPEG Transport Streams
  • PCR Accuracy and ETR101-290 checking
  • Integrated MPEG2/H.264/VC-1 video decoding with MPEG, AAC and AC3 audio support

Brand

Sencore

Advanced Video Delivery & Signal Transmission Technologies For Broadcast, Cable, Satellite, IPTV, & More Sencore is the leader in the development of high-quality signal transmission solutions for the broadcast, cable, satellite, IPTV, and professional audio/video markets. Their product line of top-rated equipment includes video delivery products, system monitoring and analysis solutions, and test and measurement equipment – all designed to support system interoperability and backed by best-in-class customer support. Sencore meets the rapidly changing needs of modern media by ensuring the efficient delivery of high-quality video from the source to the home. Sencore’s advanced video delivery and signal transmission technologies overcome the complexities to enable consistent, high-quality video distribution. Their solutions offer proven compatibility with a wide range of technologies including analog, digital, HD/SD, MPEG2, H.264, IP, 8VSB, QAM, and DVB-S/S2. Their comprehensive digital video system monitoring products ensure consistent, high-quality content delivery by providing continuous logging and monitoring of multiple signal types in both digital TV and IPTV networks. Broadcast engineers can remotely identify and resolve problems before they occur, respond to alerts and alarms, and quickly isolate the cause of outages with real-time system metrics and comparative analysis of critical measurements and system logs.

Additional information

Weight 3 lbs
Dimensions 14 × 9 × 5 in
