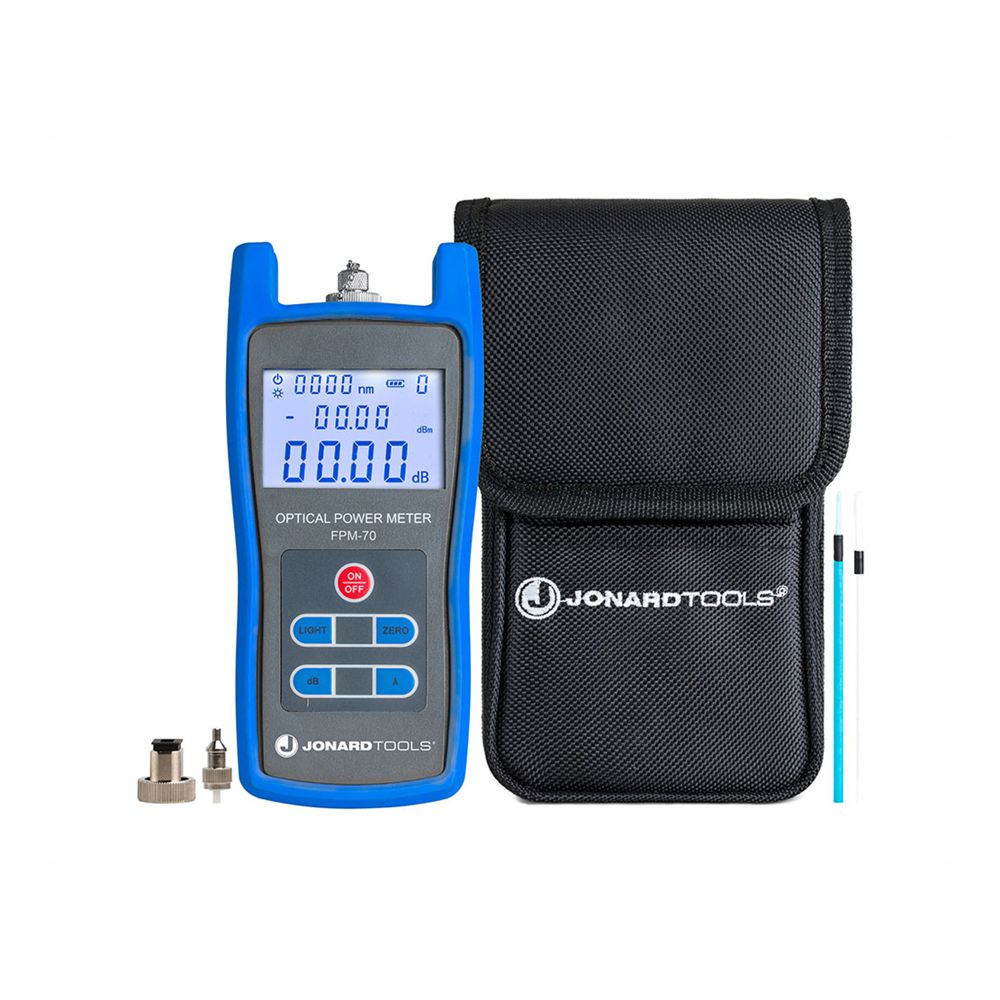

FPM-70 Fiber Optic Power Meter (-70 to +6 dBm) with FC/SC/LC Adapters

$264.00

Primarily used in long haul applications, this fiber optic power meter is perfect for measuring both the absolute optical power and relative power loss in fiber optic cables. This power meter features the following:

  • Power measurement range of -70 dBm to +6 dBm, perfect for long distance or long haul telecom, coax, and fiber optic cables
  • Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
  • Measures 6 preset calibrated wavelengths with high precision to determine absolute or relative power
  • Special function of the unit allows the device to be manually calibrated as needed
  • Includes FC and SC adapters to connect to PC/UPC/APC FC and SC connectors
  • Also includes an LC adapter to connect to PC/UPC LC connectors
  • LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
  • Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
Safe Checkout

  • Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
  • Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
  • Detector Type: InGaAs
  • Measurement Range: -70 dBm to +6 dBm
  • Single Mode Range: 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
  • Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
  • Resolution: 0.01 dB
  • Operating Time: ≥ 130 hours
  • Battery Type: (3) AA batteries
  • Dimensions: 7″ x 3.25″ x 1.5″ (17.78 cm x 8.26 cm x 2.54 cm)
  • Weight: 1.5 lb (681 g)

Additional information

Weight 1.5 lbs
Dimensions 7 × 3.25 × 1.5 in

Brand

Jonard Industries Corp

Quality Tools for Today's Professionals since 1958 Jonard Industries Corp is a World Class Manufacturer of Precision Hand Tools for the Telecom, Fiber Optic, Cable TV, Wireless, and Electronic Industries. As the company has prospered and grown, our product lines have expanded to where we now maintain 20 separate and unique categories of professional, highly dependable tools. We work with Certified Ergonomists to design tools with worker safety in mind. Our ergonomic concentration and focus has provided us with the insights and ability to design tools that mitigate pressure on the palm, the leading cause of injuries such as carpal tunnel syndrome.
