H-24AV-QAM-IP
$4,750.00 Each Add to cart

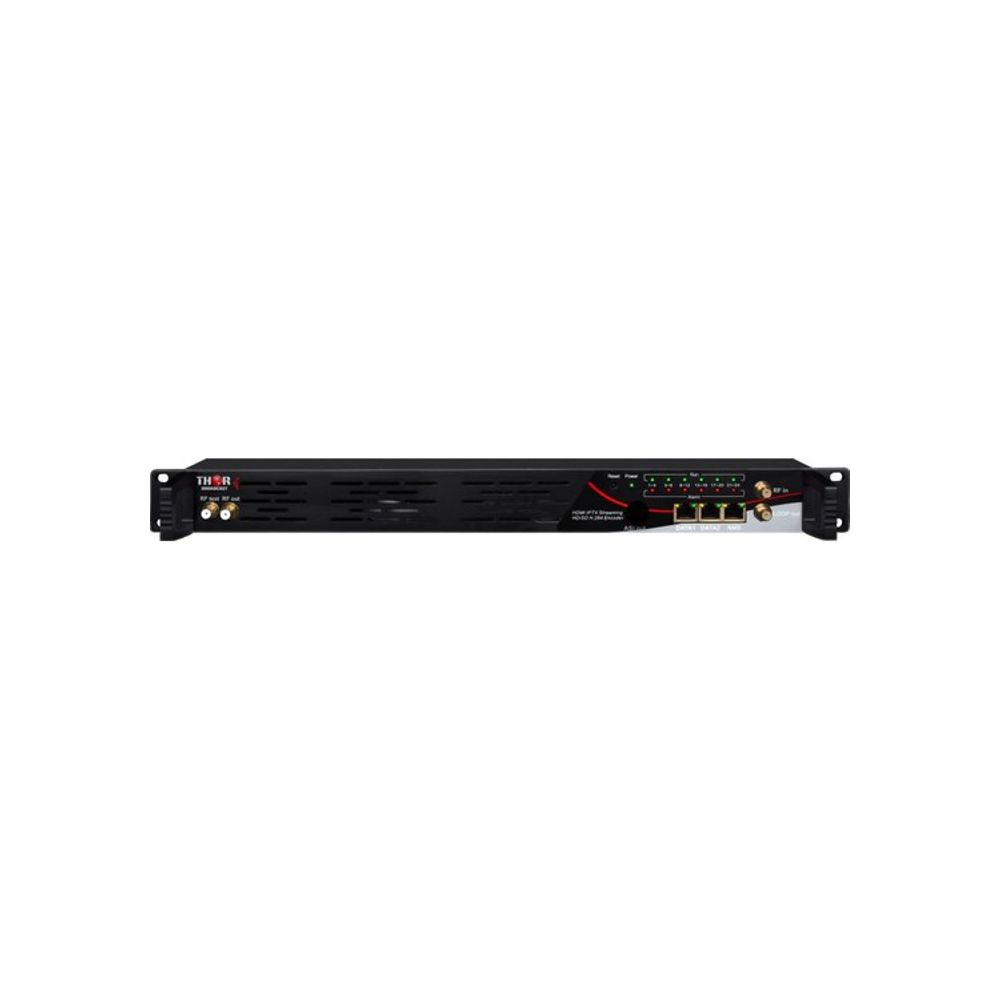

Thor Broadcast - H-24AV-QAM-IP

$4,750.00 Each

High Density Encoder Modulator with up to 24 inputs for CVBS video via an RCA connector. Robust 1RU system for building a whole headend in as little rack space as possible. This flexible chassis allows for outputting all of your inputs onto RF and IP simultaneously. This high density unit also allows for PID remapping automatically or manually with up to 180 pids per channel. Utilizing only MPEG2 video with CBR and VBR means your CVBS input signals will benefit from noise reduction and de-interlacing to continously provide your content in a fluid manner. This unique encoder modulator also allows you to input up to 128 STPS streams for modulation onto RF; the multiplexing chassis will put these streams into your RF channel lineup for you which can also include a digital logo stamp on the streams. The Gigabit interface allows up to 4 MPTS streams output simultaneously. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel CATV Headends, entertainment systems in sports bars, hospitals, apartment complexes.

Ships in 1 to 2 weeks
Safe Checkout

Description

  • 8/12/16/20/24 A/V CVBS inputs with MPEG2 Encoding – Modulated 4 RF output –  and 4 MPTS’s IP TS ouput
  • MPEG1 Layer II, AC3(2.0) Audio encoding and supports audio gain adjustment
  • 1DVB-C tuner input for re-mux (only for DVB-C RF out version. Suitable for India market.)
  • 128 IP input over UDP and RTP protocol
  • 4 groups of multiplexing/scrambling/modulation output channels
  • PID remapping/ accurate PCR adjusting/PSI/SI editing and inserting
  • 4 MPTS IP (DATA1 port only) output over UDP and RTP
  • 4 DVB-C or DVB-T RF output
  • CC (closed captions)
  • Supports QR code, LOGO, OSD insertion
  • Control via web management, and easy updates via web
  • Lowest cost per channel, breakthrough price

Brand

Thor Broadcast

Specializing in Turnkey Solutions in Broadcast CATV & Fiber Optic Distirbution Complete Line of Encoding & Decoding Equipment -Easily Transport any Signal over IP, Fiber and RF Thor Fiber and Thor Broadcast have been trusted manufacturers of CATV and Fiber Transport equipment for over 2 decades in telecom, sports, education, hotel, TV studio, casino, house of worship, and Live events. Contact our solutions experts today to help solve your CATV/IP/Fiber dilemmas here locally in California. Using a variety of fiber mux/demux technologies we're able to bring world class custom orders to your door in no time. Our award winning CATV Encoder Modulators have been touted globally as an all inclusive headend in a box, encoding any input HDMI/SDI/CVBS/YpPbr in Mpeg2/H.264 and outputting on RF/IP/ASI in Ultra Low Latency simultaneously makes it a perfect fit for any application. Our clients range from institutions all over the world, and especially here in the USA featuring our Armed Forces, NASA, NFL, NCAA, and the DOD. Before you make any choice, choose to call Thor to help assist your next project.

Additional information

Weight 17 lbs
Dimensions 19 × 17 × 1.7 in
