4K EZIP Matrix & Video Wall HDMI 2.0, 4K60, 4:4:4 with USB, Audio IR & RS-232 Over IP

Call for Price

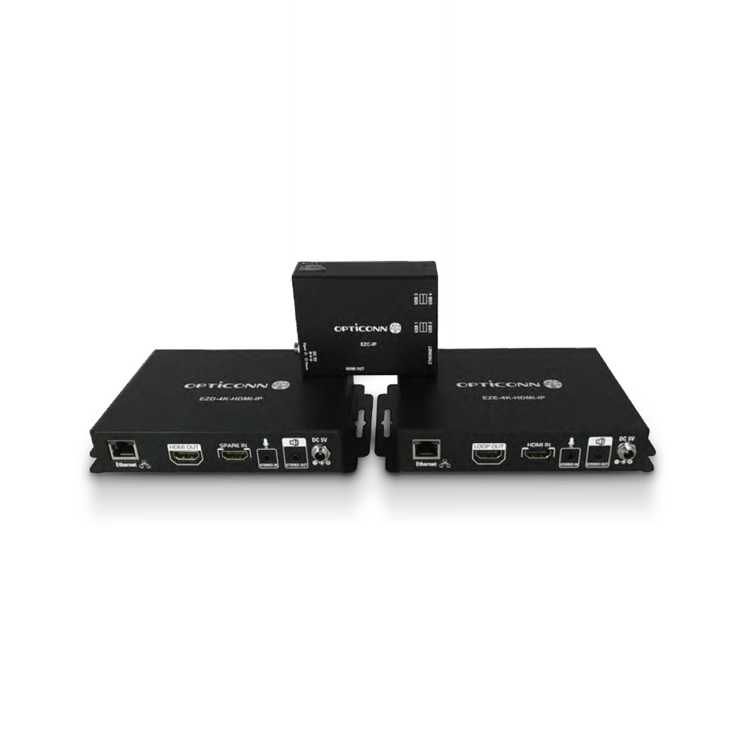

4K EzIP Matrix is the perfect solution for virtually unlimited connectivity of HDMI 2.0 over IP. It is a high quality, IP video matrix solution that distributes HDMI 2.0, 4K60, 4:4:4, 8 bit or HDR, 4K60, 4:2:0, 10 bit video with USB, RS-232 and IR simultaneously over an IP network. It is easily managed and controlled using a centralized control-ler with a user friendly web UI. The 4K EzIP Matrix consists of extremely low latency (~23 ms) encoding and decoding using the EZE-4KHDMI-IP and EZD-4KHDMI-IP as end points in the network. Each encoder and decoder can be powered via optional POE through a POE enabled Gigabit Ethernet Switch or powered with the provided power supplies. The 4K EzIP Matrix software provides the ability to switch any input to any output in a point to point or point to multi-point configuration, easily set up & configure video walls, manage & control each end point, provide system moni-toring with event logging, assign user access privileges and schedule video I/O’s on and off. This powerful, unique, and user friendly software is what makes it easy for anyone to build their own 4K EzIP Matrix.

Safe Checkout

  • HDMI 2.0 over IP
  • Resolutions up to 4K60, 4:4:4
  • Extremely low latency: 23ms end to end
  • Virtually unlimited connections
  • Switch & connect with managed Gigabit switch
  • One to one or one to many
  • USB (keyboard/mouse) over IP
  • Bi-directional audio, IR & RS-232 serial data
  • Auto-discovery of all end points in the network Manage & create 4K video walls
  • Easy to use, centralized UI to manage 4K matrix
  • Software control of matrix switching, video walls, man-aging end points, system monitoring, event logging, scheduling & assigning user access

Additional information

Weight 1.5 lbs
Dimensions 4 × 7.25 × 1.5 in
