H-2ADHD-QAM-IP-LL
$2,680.00 Each Add to cart

Thor Broadcast - H-2ADHD-QAM-IP-LL

$2,680.00 Each

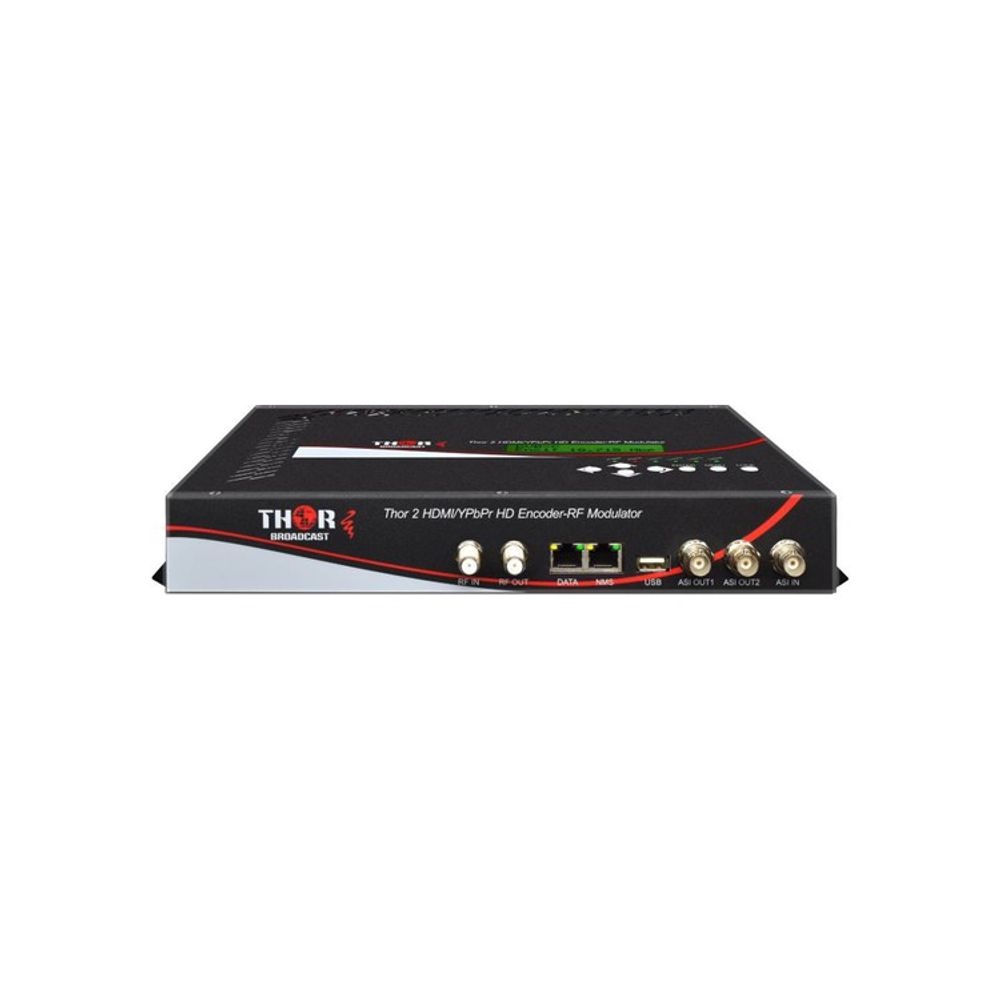

Thor’s dual channel compact encoder modulators are designed for high density digital HDTV channel generation.  These systems accept video inputs in all standard HD or SD formats, including component, composite, or HDMI.  In addition they also support all other advanced functions normally found on larger 19 in rack systems.  Their compact form factor is designed to be a table top/desk mount installation.  Supported features include support for HDCP, closed captioning (608 on analog RCA), independant audio input apart from HDMI for audio.  For convenience all functions can be set via a keypad and LCD display located on top of the unit.  However the ideal method for configuration is provided through any standard web browser.  Two Ethernet network ports are provided, one for configuration and a second for IPTV output.  IPTV output is provided in the form of UDP unicast or multicast address outputs with two addresses for single program SPTS outputs and a single address for the combined multi program MPTS stream.  For broadcasters, both ASI input and output are provided on BNC terminals.  HDTV output is provided on standard 75 ohm Type-F connectors with adjustable RF output power level. The H-2ADHD also is capable of modulating both standards of QAM and ATSC, using the highly functional NMS GUI you’re capable of using either standard without reprogramming the unit. Contact a sales representative for more information.

Ships in approx. 1 week
Safe Checkout

Description

  • Dual HD or SD channels in compact encoder modulator form factor
  • Supports both MPEG-2 or H.264 video encoding codecs
  • Supports Dolby AC/3 audio passthrough up 7.1 channels
  • Models available for ATSC, DVB-C, or DVB-T Television (unit comes loaded with QAM & ATSC modulation standards)
  • Supports IPTV output in UDP format for unicast or multicast
  • Supports EIA 608 type closed captioning on analog input
  • ASI input and multiplexing function provided with ASI output

Brand

Thor Broadcast

Specializing in Turnkey Solutions in Broadcast CATV & Fiber Optic Distirbution Complete Line of Encoding & Decoding Equipment -Easily Transport any Signal over IP, Fiber and RF Thor Fiber and Thor Broadcast have been trusted manufacturers of CATV and Fiber Transport equipment for over 2 decades in telecom, sports, education, hotel, TV studio, casino, house of worship, and Live events. Contact our solutions experts today to help solve your CATV/IP/Fiber dilemmas here locally in California. Using a variety of fiber mux/demux technologies we're able to bring world class custom orders to your door in no time. Our award winning CATV Encoder Modulators have been touted globally as an all inclusive headend in a box, encoding any input HDMI/SDI/CVBS/YpPbr in Mpeg2/H.264 and outputting on RF/IP/ASI in Ultra Low Latency simultaneously makes it a perfect fit for any application. Our clients range from institutions all over the world, and especially here in the USA featuring our Armed Forces, NASA, NFL, NCAA, and the DOD. Before you make any choice, choose to call Thor to help assist your next project.

Additional information

Weight 9 lbs
Dimensions 13 × 9 × 1.75 in
