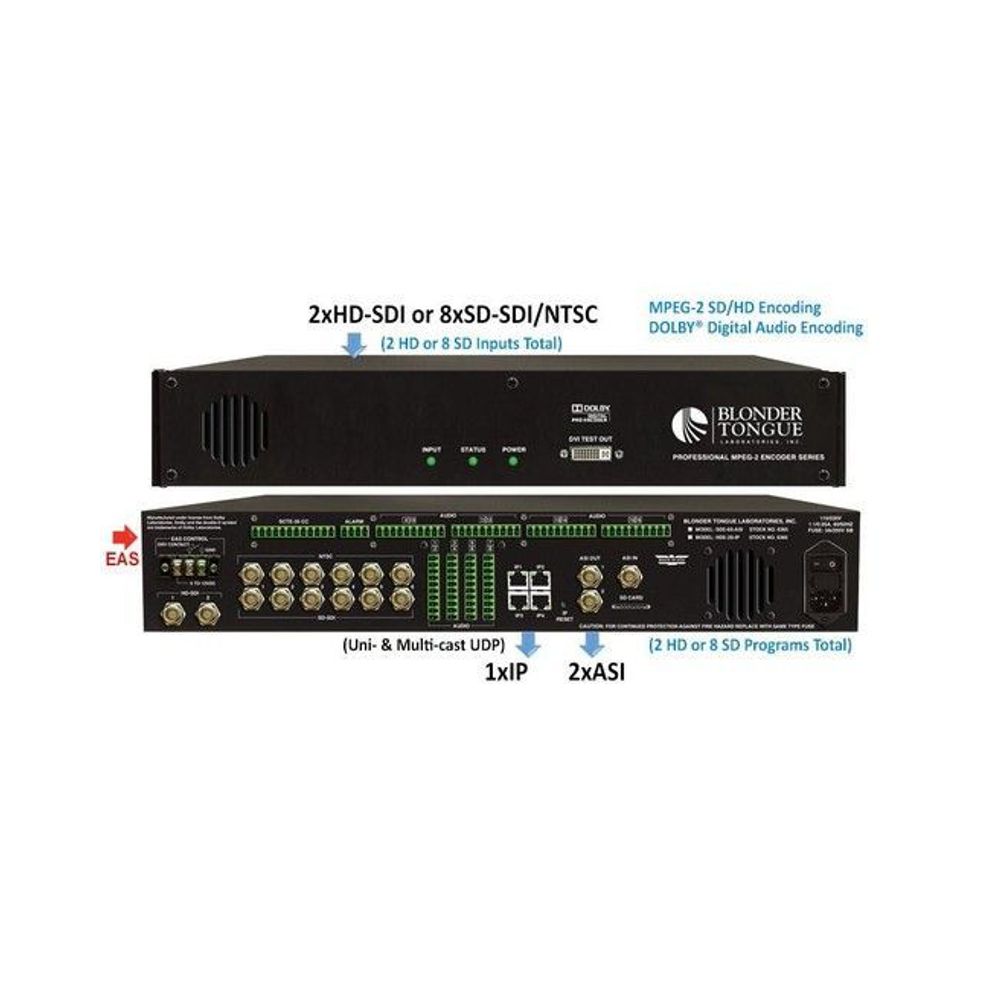

Blonder Tongue’s HDE-2S-IP (MPEG-2 HD/SD Encoder Multiplexer – 2xHD-SDI or 8xSD-SDI/NTSC to IP/2xASI) accepts two (2) high definition (HD) programs from HD-SDI inputs or up to eight (8) standard definition (SD) programs across the SDI and/or NTSC inputs. MPEG-2 encoded outputs are multiplexed into one Multi Program Transport Stream (MPTS), which is available in the following formats simultaneously: 1xIP (100/1000 BaseT) and 2xASI.
The encoder supports Dolby® Digital audio encoding for (16) analog stereo audio pairs (L+R) which in addition to primary and secondary audio programs also provide a third pair for the Audio Descriptor Service, an additional narration track for blind and visually impaired, as mandated by the Twenty-First Century Communications and Video Accessibility Act of 2010 (CVAA).
Ad insertion SCTE 35 compliant queuing messages are detected for each program from either the multiple audio Cue Tone inputs or an insertion contact closure (operator selectable).
A baseband audio analog encoding capability table is provided on the following page for easy reference. In addition to the baseband audio analog encoding capability audio programs that are already encoded and present on the SDI inputs may be multiplexed with the respective output (pass-through) without utilizing the baseband audio analog encoding resource.
Blonder Tongue’s encoder also supports Closed Captioning (EIA-608, and EIA-708), and Emergency Alert System (EAS). A front-panel DVI port is available for real-time monitoring of active programs during operation.
Comprehensive remote monitoring and control is accomplished using any standard Web browser via a rear-panel SFP port (10/100BaseT).
Accepts up to (2) HD or (8) SD programs from the following inputs: 2xHD-SDI, 6xSD-SDI, and/or 6xNTSC.
Simultaneously delivers the following outputs: 2xASI (mirrored) and 1xIP (100/1000 BaseT)
Provides comprehensive GUI-based monitoring and control using standard web browsers via 10/100 BaseT SFP module (included)
Provides audio encoding for Primary Audio, SAP (Secondary Audio Program), & Audio Descriptor Service
Provides user-selectable audio level adjustment of +/- 6 dB in 0.5 dB increments on all analog audio inputs through GUI interface
Detects ad messaging via SCTE 35 activated by either multiple Cue Tone Audio inputs or upon contact closures (user selectable)
Supports Closed Captioning EIA-608 and EIA-708
Supports Real-time Dolby® Digital audio encoding
Supports Emergency Alert System (EAS)
Supports user-defined static PSIP configuration
Supports compressed digital audio pass through for all SDI inputs
Supports fixed VBR and Stat-Mux video encoding
