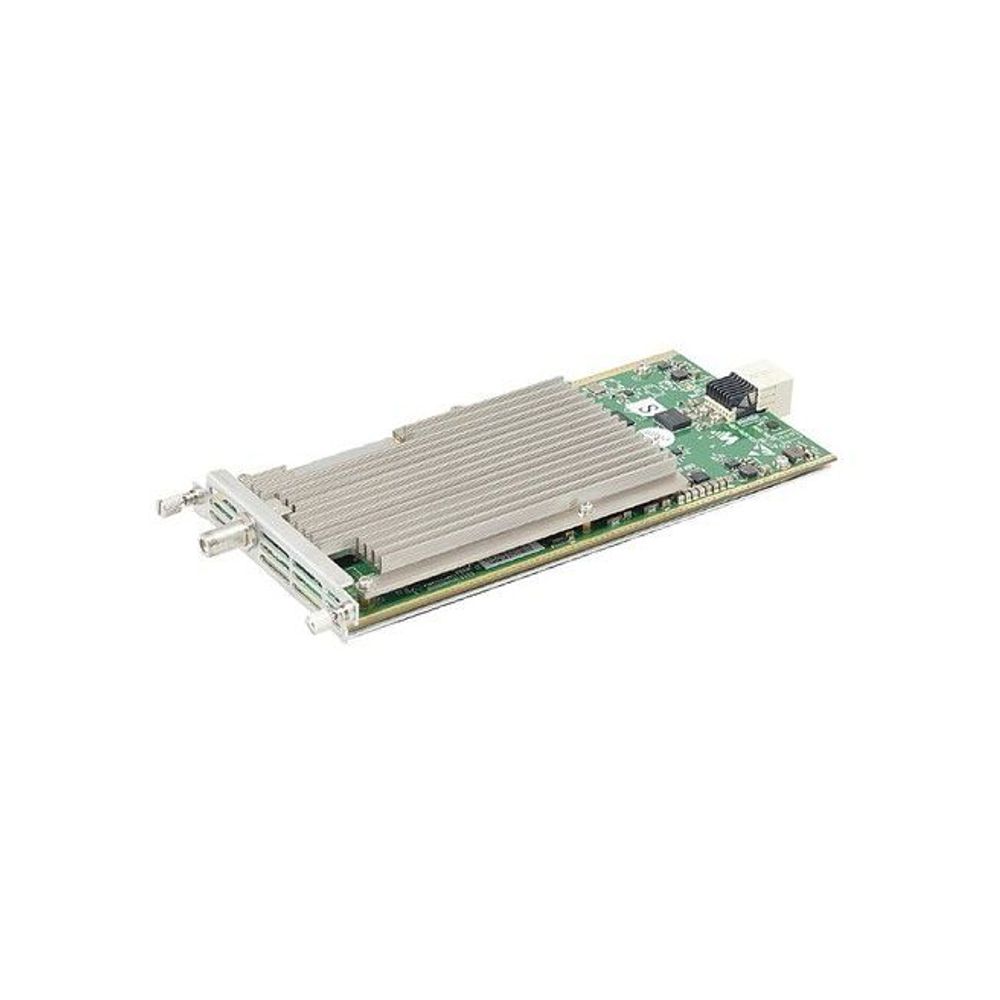

IQAM-MOD-16CH; 16 QAM Modulator Module
$2,513.14 Each Add to cart

Wellav - IQAM-MOD-16CH; 16 QAM Modulator Module

$2,513.14 Each

The IQAM modulator modules allows you to select where the QAM channels go in the spectrum. their is no longer the need to have groups of four adjacent QAM channels

It provides operators with a more flexible deployment of RF channels, especially when introducing new programs and equipment into their current network system.

Fits the DMP or SMP Chassis

Ships in 1 to 2 weeks
Safe Checkout

Description

  • 8, 12 or 16 channels of QAM modulation
  • Selectable channel frequencies, by individual QAM Channel
  • Platform-based Modular Design

SPECIFICATIONS
Interface
Connectors: 1 x F-type female
RF Output
Standard: ITU-T J.83 Annex A/C, Annex B
Channels: Up to 16
Output Range: 48 ~ 999 MHz
QAM Constellations: 16/32/64/128/256QAM
Symbol Rate: 3.0 ~ 6.952 MS/s
Output Level: 30 ~ 55 dBmV (depending on channels)
Bandwidth: 6MHz/7MHz/8MHz
MER: ≥ 44dB

Brand

Wellav

Leading Global Provider of Professional Video Delivery Solutions Wellav Technologies is committed to developing and manufacturing the best value video processing and monitoring equipment and solutions to help pay-tv operators address real business challenges in video distribution. Through innovation and cutting-edge technologies, Wellav continues to provide a full range of digital headend equipment, STBs and value-added solutions to meet the growing demands of pay-tv services such as multi-screen, IPTV/OTT and VOD. The company’s global service and support organizations are providing system integration and technical expertise to support CATV, FTTH, IPTV/OTT, Satellite/Terrestrial, Broadband/ADSL operators to deliver high-quality video programs to millions of viewers around the world.

Additional information

Weight 1.5 lbs
Dimensions 12.5 × 7 × 3 in
