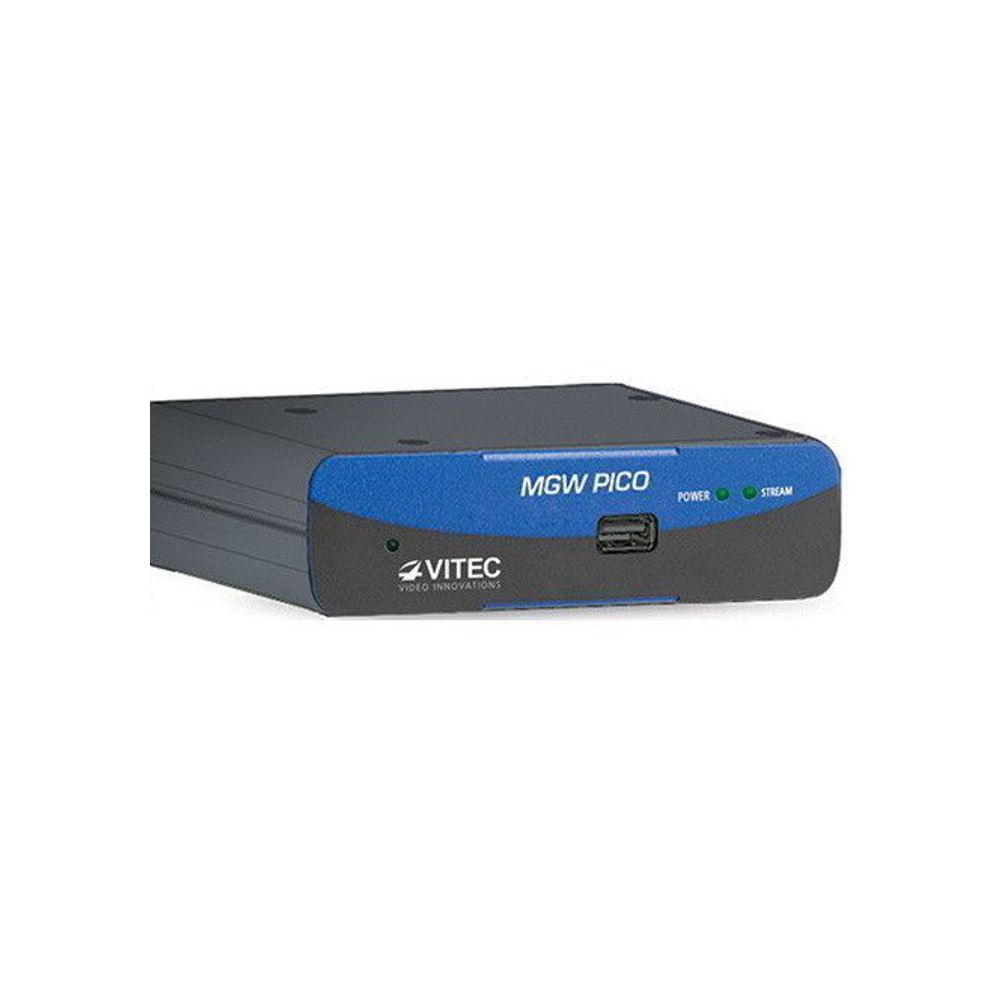

MGW PICO Ultra-small, low latency MPEG-4 H.264 Encoding & Streaming Appliance
$2,995.00 Each Add to cart

Vitec - MGW PICO Ultra-small, low latency MPEG-4 H.264 Encoding & Streaming Appliance

$2,995.00 Each

The MGW Portable Encoder family of industrial-grade high-density IPTV streaming appliances includes the high-density MGW Premium Encoder, the compact and rugged MGW Nano Encoder, and the ultra-small MGW Pico Encoder.

The portable appliances feature a unique design with no moving parts, 100% silent and diverse range of video/audio inputs to support any type of IPTV, FMV and ISR applications. Optimized for low-latency distribution of HD and SD video sources, the portable encoders disseminate IP video at broadcast-quality resolutions up to full HD 1080p and at a wide range of bit rates and frame rates.

With processing power of up to 2 x HD or 5 x SD channels from multiple video sources or a single input with up to 4 secondary streams, Optibase MGW Portable Encoders support the highest video capacity of any small form factor, professional-grade H.264 encoder on the market. To maximize flexibility, they offer the broadest selection of video and audio inputs, including 3G, HD-SDI, SD-SDI, DVI, HDMI, S-Video and Composite. A built-in video matrix and scaler enable frame rates and resolutions of incoming feeds to be scaled and a single video source to be routed to multiple compression cores for simultaneous encoding at up to five different resolutions and frame rates, with optional on-the-fly HD source downscaling to SD.

Optibase MGW Portable appliances combine a rugged design that has no moving parts with real-time embedded video and metadata engines that provide the reliability and resiliency necessary to operate in harsh environments. With the MIL-STD certification – the units are optimized for mission critical ingestion and dissemination of Full Motion Video (FMV) with optional CoT and KLV metadata.

Ships in 2 to 4 weeks
Safe Checkout

Description

  • World’s smallest professional HD H.264 encoder with HD/SD-SDI and Composite inputs
  • Less than 65 millisecond encoding latency
  • Superb HD and SD H.264 AVC compression quality up to full HD 1080p
  • Under 4 Watts power consumption – ideal for integration into vehicles or for use with battery packs
  • Metadata support: MISB KLV / STANAG and CoT
  • Rugged, fanless design with no moving parts, 100% silent

Brand

Vitec

Worldwide provider of innovative digital video products that support end-to-end media solutions. For many years, VITEC has played a leading role in the design and manufacture of hardware and software for video encoding, decoding, transcoding, recording, conversion, archiving and streaming over IP. There extensive product portfolio of video solutions covers a wide range of industries including Broadcasting, Government, Military, Sports & Entertainment, Education, Medical, Telco, Enterprise and Transportation. VITEC is continually designing and developing ground-breaking video solutions and introducing radical innovations and technologies.

Additional information

Weight 1 lbs
