NXG-32CH-QM QAM output module
$3,325.00 Add to cart

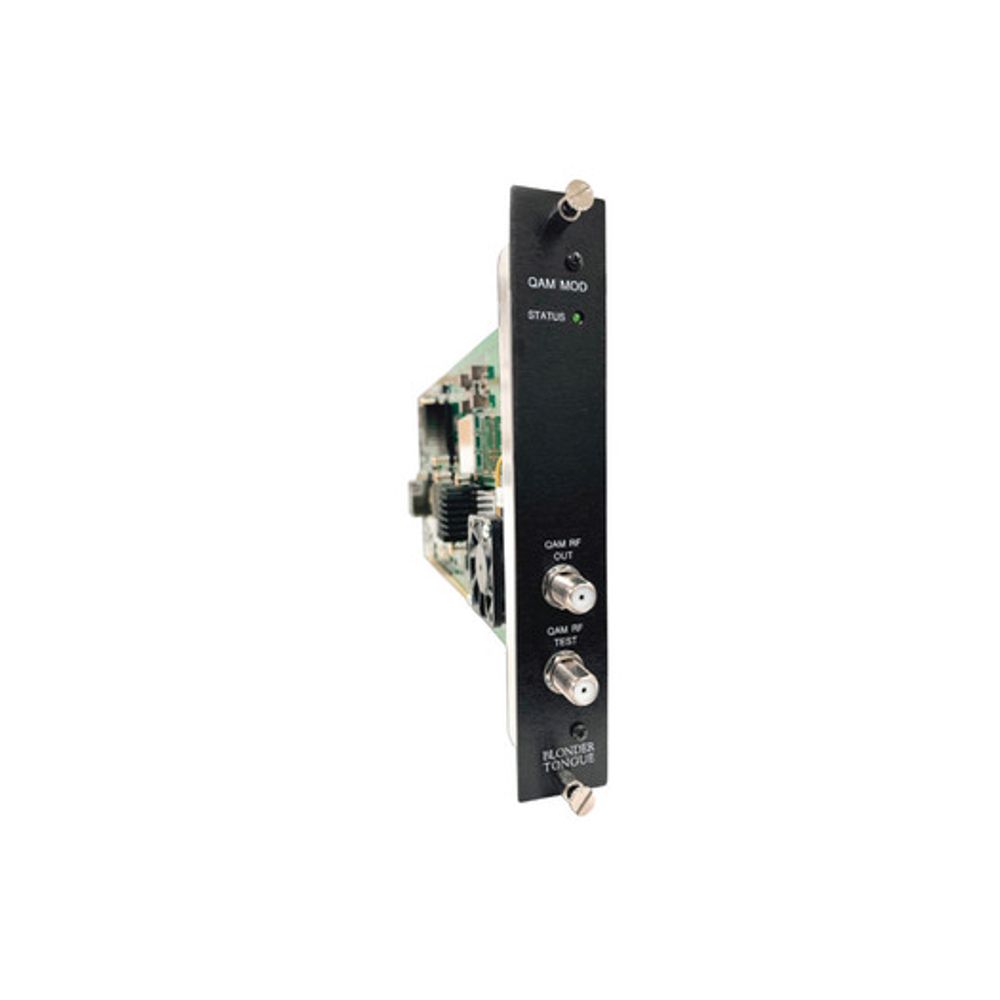

Blonder Tongue - NXG-32CH-QM QAM output module


The NXG-32CH-QM (QAM Output Module) is part of the Blonder Tongue NeXgen Gateway (NXG) platform. The NXG-32CH-QM multi-channel QAM modulator provides up to 32 QAM 256 channels. All 32 output channels are fully agile from 54 to 1002 MHz, with the requirement that all channels must be within a 768 MHz frequency span. Each program can be configured to support a customized channel lineup for desired locations.

Usually ships same business day
Safe Checkout


  • Provides reliable and secure HD programming in hospitality environments
  • Can contain up to 3 audio streams and up to 11 extra PIDs for each video program
  • Can be configured with both HD and SD programming in the same QAM channel
  • Ability to change the PID, program number, short name, major/minor channel (PSIP) information
  • Provides fully independent QAM channels (no QAM channel blocks)
  • Supports MPEG-2 and H.264 video
  • Multiplexes SPTS programs to MPTS for QAM distribution• Continuous Wave (CW) mode easily aligns headend level
  • -20 dB RF test point


Blonder Tongue

Solutions for All Your Applications Blonder Tongue Laboratories, Inc. offer customers more than 130 years of combined engineering and manufacturing excellence with a solid history of delivering reliable, quality products. As a leader in the field of Cable Television communications, they provide system operators and integrators serving the cable, broadcast, satellite, IPTV, institutional and professional video markets with comprehensive solutions for the provision of content contribution, distribution and video delivery to homes and businesses. The B-T designs, manufactures, sells and supports an equipment of SD/HD digital video solutions, as well as core analog video and high speed data solutions for distribution over coax, fiber and IP networks. For over 60 years, Blonder Tongue has customized cost-effective solutions for the broadcast, hospitality, education, healthcare, government, sports, entertainment, and enterprise markets. From supporting major broadcast networks to campuses, hotels, stadiums, and airports Blonder Tongue has its customers’ needs covered. Blonder Tongue was founded in 1952, in Old Bridge, NJ by Ike Blonder and Ben Tongue. The company started building Amplifiers or boosters for TV antennas and also building TV antennas. Ike was awarded a patent for inventing the log-periodic television antenna. In the following years, Blonder Tongue expanded their range of products to support the growing Cable TV industry. In 1972, Toner Cable became a stocking distributor for Blonder Tongue and today is their largest stocking distributor worldwide.

Additional information

Weight 2 lbs
Dimensions 1.15 × 15.5 × 7 in
