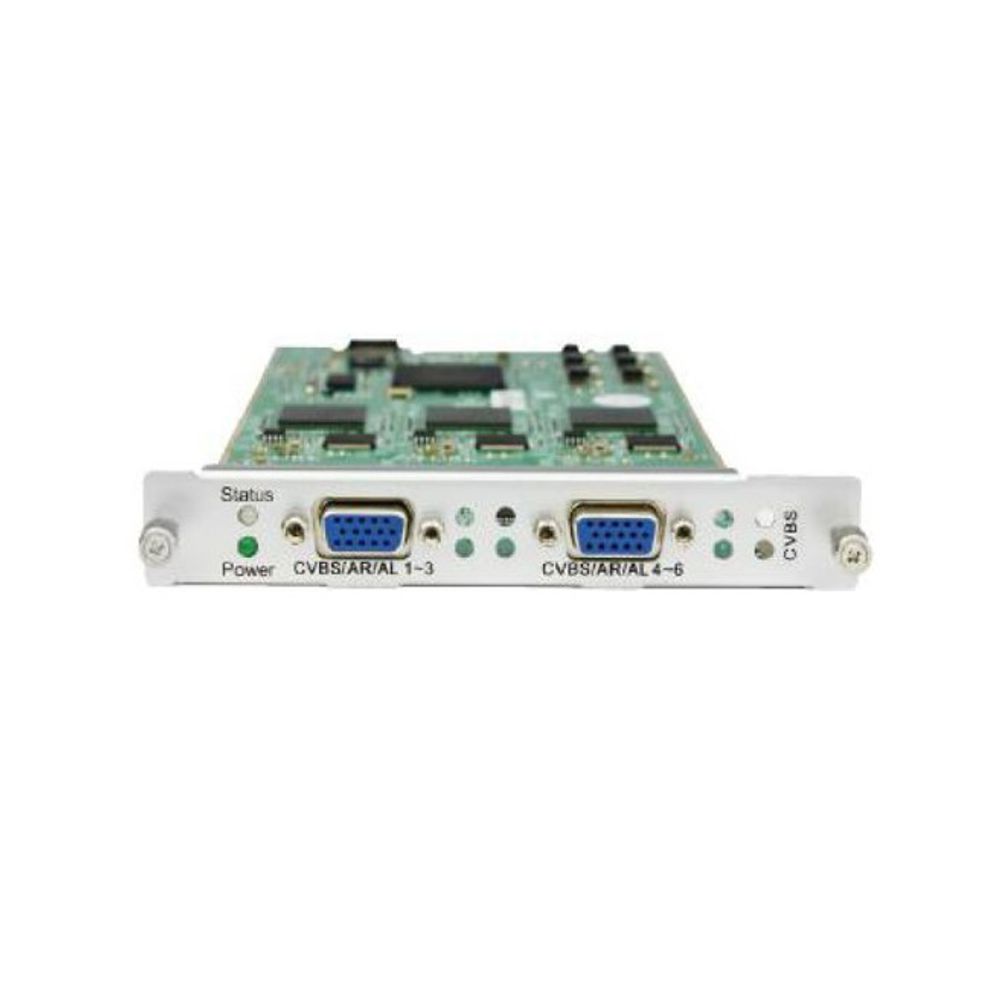

OHE-CVBS-00 CVBS OmniHub 16 Encoding Module
$847.00 Each Add to cart

Wellav - OHE-CVBS-00 CVBS OmniHub 16 Encoding Module

$847.00 Each

CVBS encoding module, 6 CH, supports H.264/MPEG-2 SD, MPEG1L2 (professional chip)

Usually ships same business day
Safe Checkout


  • Input 6 channels via 2 DB15 connector, each DB15 for 3 channels, 2 x RCA-DB15 adaptor cables come along with module
  • Video H.264/AVC SD: MP/[email protected], MPEG-2 SD: [email protected]
  • Resolution SD: 576i50, 480i59.94
  • Bitrate Control CBR
  • Bitrate 1,000~6,000Kbps
  • GOP Structure IBBP, IPPP, IBP
  • GOP Size 6~63
  • Aspect Ratio Automatic or Manual
  • Audio MPEG-1 Layer II
  • Audio Bitrate 32~384Kbps
  • Audio Mode Stereo (2.0, including downmix)
  • Audio Sampling Rate 48kHz
  • Audio Volume Leveling -20dB~20dB
  • Power Consumption Max. 17W




Leading Global Provider of Professional Video Delivery Solutions Wellav Technologies is committed to developing and manufacturing the best value video processing and monitoring equipment and solutions to help pay-tv operators address real business challenges in video distribution. Through innovation and cutting-edge technologies, Wellav continues to provide a full range of digital headend equipment, STBs and value-added solutions to meet the growing demands of pay-tv services such as multi-screen, IPTV/OTT and VOD. The company’s global service and support organizations are providing system integration and technical expertise to support CATV, FTTH, IPTV/OTT, Satellite/Terrestrial, Broadband/ADSL operators to deliver high-quality video programs to millions of viewers around the world.

Additional information

Weight 2 lbs
Dimensions 7 × 2 × 7 in
