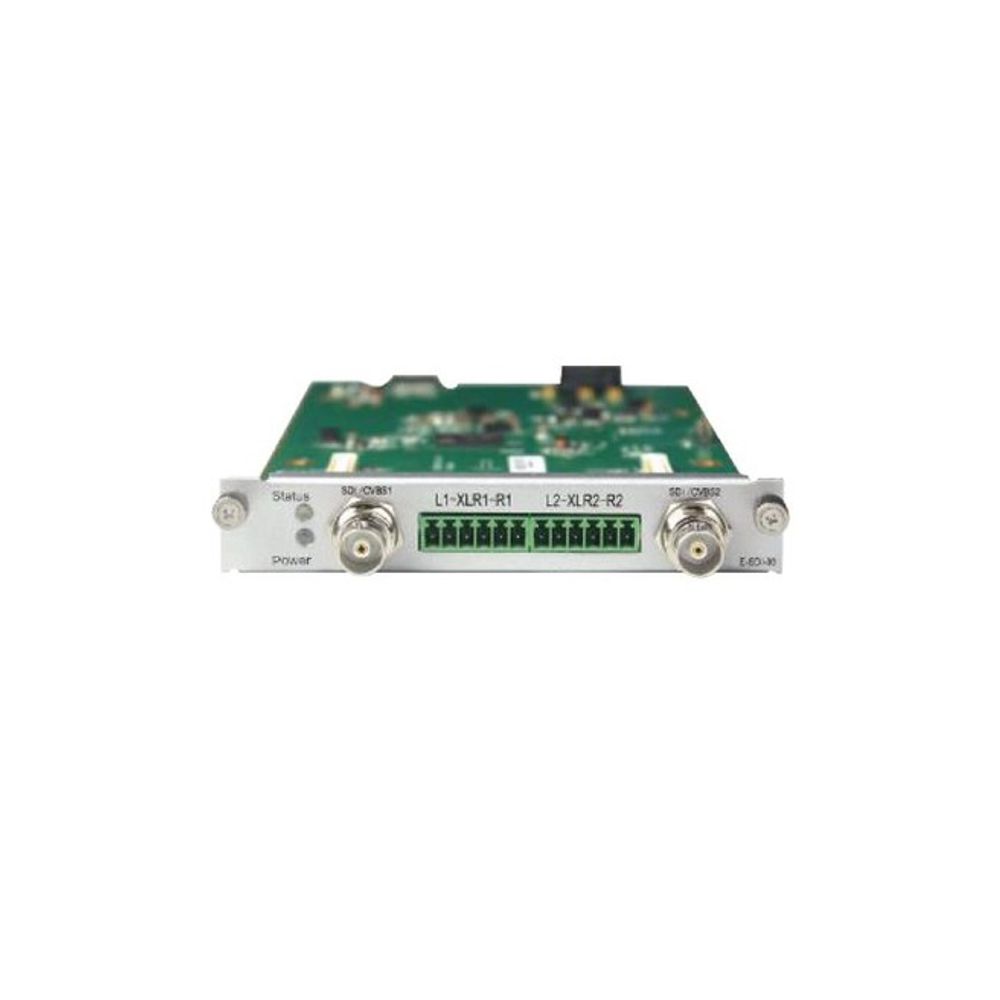

OHE6-SDI-01 SDI OmniHub 6 Encoding Module
$1,187.00 Each Add to cart

Wellav - OHE6-SDI-01 SDI OmniHub 6 Encoding Module

$1,187.00 Each

SDI encoding module , 2 CH, supports H.264/MPEG-2 HD/SD, MPEG1L2, AAC, AC3 , supports CC and analog audio input

Ships in 1 to 2 weeks
Safe Checkout


  • Input 2 channels via 2 SDI or CVBS / SDI or CVBS via BNC connector / Audio via phoenix connector
  • Video H.264/AVC HD: MP/[email protected], SD: MP/[email protected] / MPEG-2 SD: MP @ML HD: [email protected]
  • Resolution SD: 576i50, 480i59.94 / HD: 1080p-25/30/50/59.94/60, /  1080i-50/60 / 720p-50/60 *The maximum output resolution is 1080i60
  • Bitrate Control CBR
  • Bitrate 1,000~18,000Kbps
  • GOP Structure IBBP, IPPP, IBP
  • GOP Size 6~63
  • Audio MPEG-1 Layer II, AC3, AAC
  • Audio Mode Stereo (2.0, including downmix)
  • Sampling Rate 48kHz
  • Power Consumption Max. 16W




Leading Global Provider of Professional Video Delivery Solutions Wellav Technologies is committed to developing and manufacturing the best value video processing and monitoring equipment and solutions to help pay-tv operators address real business challenges in video distribution. Through innovation and cutting-edge technologies, Wellav continues to provide a full range of digital headend equipment, STBs and value-added solutions to meet the growing demands of pay-tv services such as multi-screen, IPTV/OTT and VOD. The company’s global service and support organizations are providing system integration and technical expertise to support CATV, FTTH, IPTV/OTT, Satellite/Terrestrial, Broadband/ADSL operators to deliver high-quality video programs to millions of viewers around the world.

Additional information

Weight 5 lbs
Dimensions 7 × 2 × 7 in
