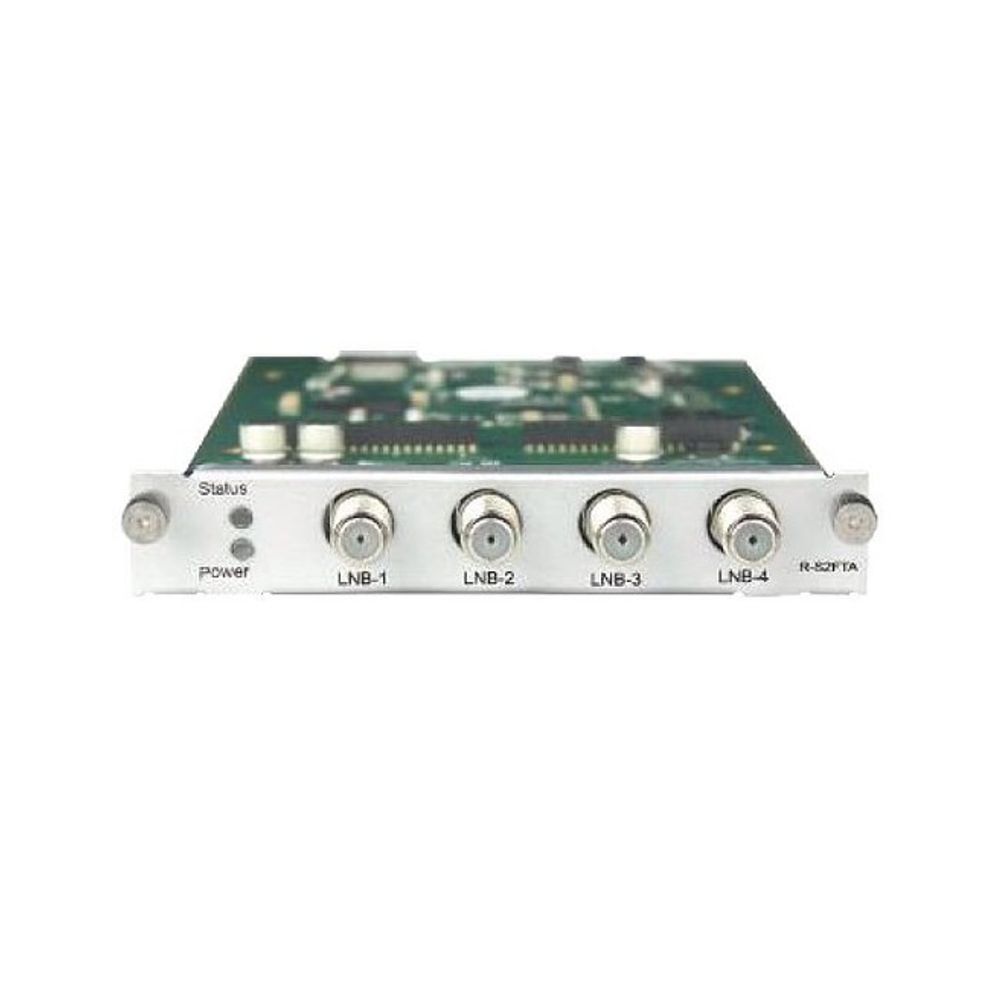

OHR6-DVBS2FTA-01 DVB-S/S2/S2X OmniHub 6 Receiver Module
Call for Price Add to cart

Wellav - OHR6-DVBS2FTA-01 DVB-S/S2/S2X OmniHub 6 Receiver Module

Call for Price

4 CH, DVB-S2/S2X receiving module (QPSK, 8PSK, 16APSK, 32APSK, 64APSK), 4 input connectors (LNB1/2/3/4). Independent power supplies for each LNB

Safe Checkout


  • Input C/Ku Band, 4 channels via 4 RF female connectors
  • LNB Power Independent power supplies for each LNB
  • LNB Voltage 13V/18V
  • LNB Current Max. 400mA
  • Constellation DVB-S: QPSK, 8PSK / DVB-S2: QPSK, 8PSK, 16APSK, 32APSK / DVB-S2X: QPSK, 8PSK, 16APSK, 32APSK, 64APSK
  • Frequency Range 950~2150MHz
  • Signal Level -70~-20dBm
  • Roll-off Factor 0.15, 0.20, 0.25, 0.35
  • Symbol Rate DVB-S: 1~45Msps / DVB-S2: 1~45Msps / DVB-S2X: 1~34 Msps
  • FEC DVB-S: 1/2, 2/3, 3/4, 5/6, 7/8 / DVB-S2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 / DVB-S2X: 11/15, 7/9, 4/5, 5/6 / (Normal FEC FECFRAME)
  • Power Consumption Max. 30W



Leading Global Provider of Professional Video Delivery Solutions Wellav Technologies is committed to developing and manufacturing the best value video processing and monitoring equipment and solutions to help pay-tv operators address real business challenges in video distribution. Through innovation and cutting-edge technologies, Wellav continues to provide a full range of digital headend equipment, STBs and value-added solutions to meet the growing demands of pay-tv services such as multi-screen, IPTV/OTT and VOD. The company’s global service and support organizations are providing system integration and technical expertise to support CATV, FTTH, IPTV/OTT, Satellite/Terrestrial, Broadband/ADSL operators to deliver high-quality video programs to millions of viewers around the world.

Additional information

Weight 2 lbs
Dimensions 7 × 2 × 7 in
