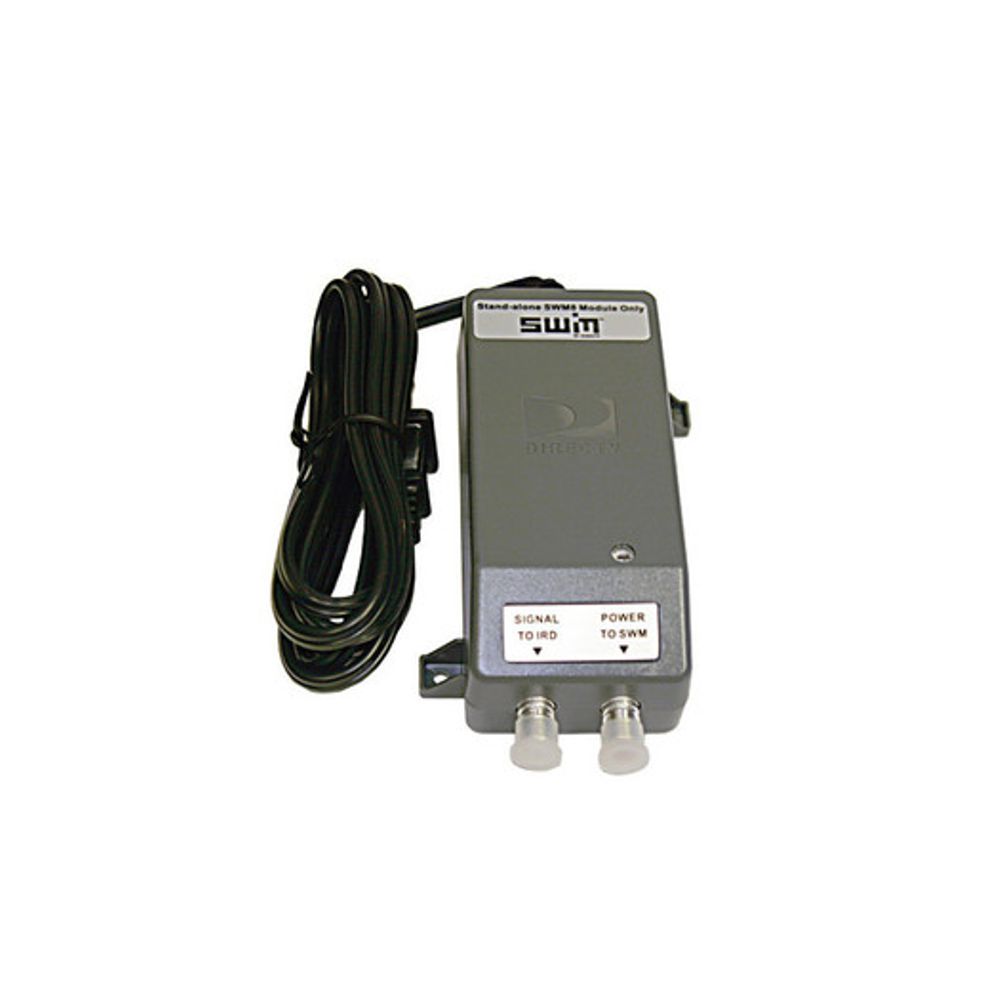

PI-29Z Power Inserter for SWM8 & SWM16

DirecTV - PI-29Z Power Inserter for SWM8 & SWM16


Deliver power to SWM-8, SWM-16, and SWM-30 multiswitches remotely through coax cable. This 29-volt power inserter is compatible with the SWM-8, SWM-16, and SWM-30 systems. It can operate from the power passing port of a splitter, or on the SWM-16 or SWM-30, which can be run from the separate PWR port.

Usually ships same business day
Safe Checkout


  • Frequency Range: 2-2150 MHz
  • Insertion Loss: 1.5 dB typ.
  • Input: 100~120Vac / 60Hz ~ 1.0 A
  • Output: 29V / 1.3 A max / 37.7 W max
  • Outputs: 1 IRD & 1 SWM
  • Security: Double Insulated / Class II
  • Fuse Protection: 250V / 2A (UL fuse)
  • Power Cord: 2 pole polarized male plug / 1.8 m
  • Connectors: “F” type (red colored to SWM)
  • Environmental Requirements: Indoor Use Only
  • Operating Temperature Range: 0 to 52C / 32 to 125F
  • Dimensions: 5 5/8 x 2 x 2 1/4″
  • The operating voltage light is located on the bottom part of the unit



About DirecTV's Digital Satellite Receivers Toner Cable is proud to offer satellite receivers and remotes manufactured by DirecTV. DirecTV is a leading direct broadcast satellite service provider and manufacturer of digital satellite receivers. DirecTV’s premier consumer satellite receivers are capable of receiving HD digital signals and broadcasting in 1080i resolution. Digital infrared receiver remotes retain device control codes during battery replacement. Receivers from DirecTV aggregate broadcast programming schedules and fluidly present on-screen programming guides so you can experience satellite TV as it was intended, with no lag or delay. Multi-satellite functioning allows for manual or automatic satellite dishes as well as stacked multi-switches. Improve your digital satellite reception with receivers from DirecTV.

Additional information

Weight 3 lbs
Dimensions 12 × 12 × 3 in
