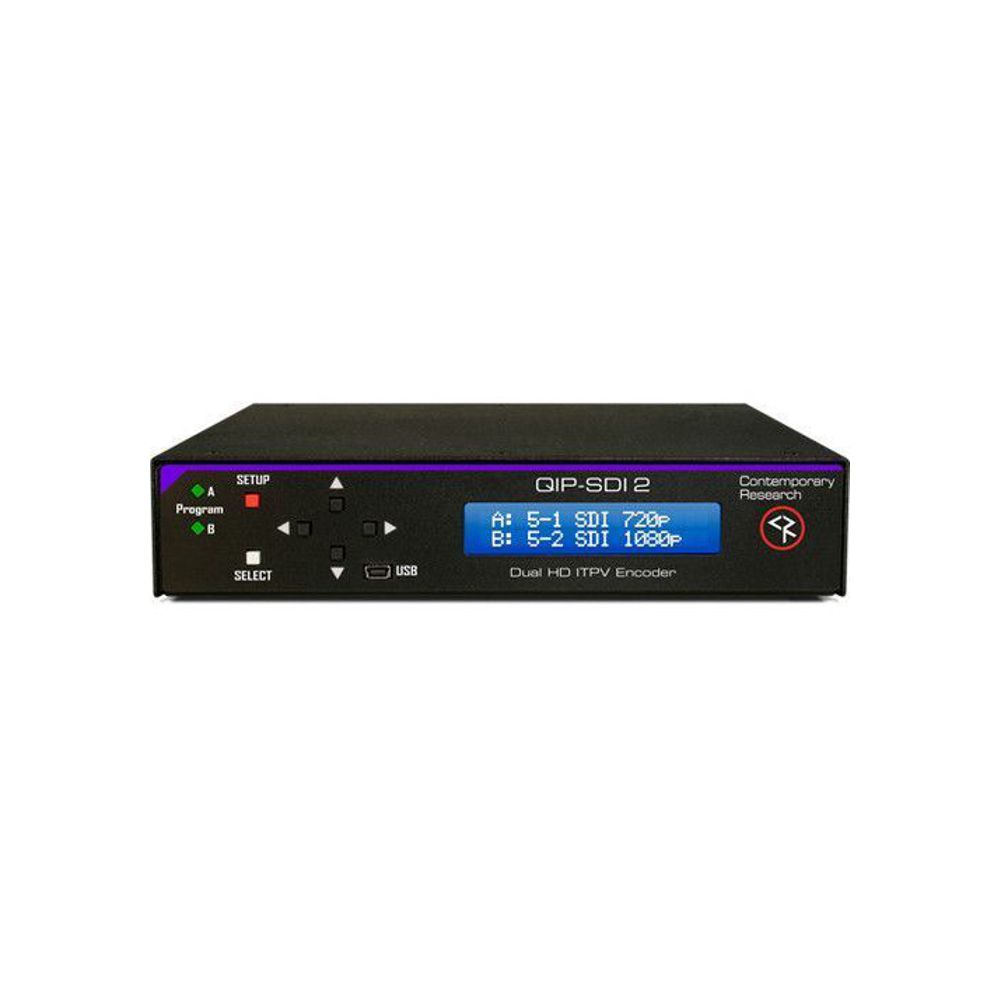

QIP-SDI 2 IPTV Encoder

$2,657.00 Each

The new QIP series of IPTV encoders offer a totally new technology for H.264 IPTV encoding and distribution. All models feature dual encoders to achieve a lower cost per IP stream. Dual hardware scalers offer total control over video resolution, widescreen formatting and bitrate. Conversion of VGA and PAL resolutions is fully supported as well. Both streams can be encoded as H.264 or MPEG2, and sent as Unicast or Multicast streams.

Models are available with HDMI or SDI inputs, as well as Composite for video or captioning data. Captioning is also available from embedded SDI 708/608 data. Audio options include embedded audio, digital SPDIF, and analog stereo – and SAP second audio language programs can be defined as well. Closure and voltage inputs are available to trigger an EAS broadcast. Both streams will switch to a defined input, and will revert to current inputs when the event ends.

Ships in 2 to 4 days
Safe Checkout

QIP-SDI 2

  • Two SDI inputs, up to 1080p60
  • Two Composite/CC video inputs for encoding, or captioning
  • Two analog mini Stereo and two RCA SPDIF coax audio inputs

Shared Features

  • Creates up to two high-definition SPTS/MPTS Unicast or Multicast IPTV streams, encoded as H.264 or MPEG2
  • Encodes audio as AAC or MP12. Passes through AC-3
  • Can create SAP dual-language audio for each program
  • Accepts 608 and 708 embedded captioning, decodes Line 21 captioning from composite video inputs
  • Dual hardware scalers accept up to 1080p60 video, including 60/30 Hz, and PAL formats, and can deliver programs at a fixed or native resolution
  • Contact and voltage inputs can trigger EAS broadcasts
  • Setup and monitor with front-panel menus or Ethernet/USB Web pages
  • Updates over Ethernet or front-panel USB, one app updates all models
  • May be rack-mounted two-across, delivering up to 4 IPTV streams in one rack space, with a mix of inputs

Additional information

Weight 4 lbs
Dimensions 15 × 11 × 3 in

Brand

Contemporary Research
