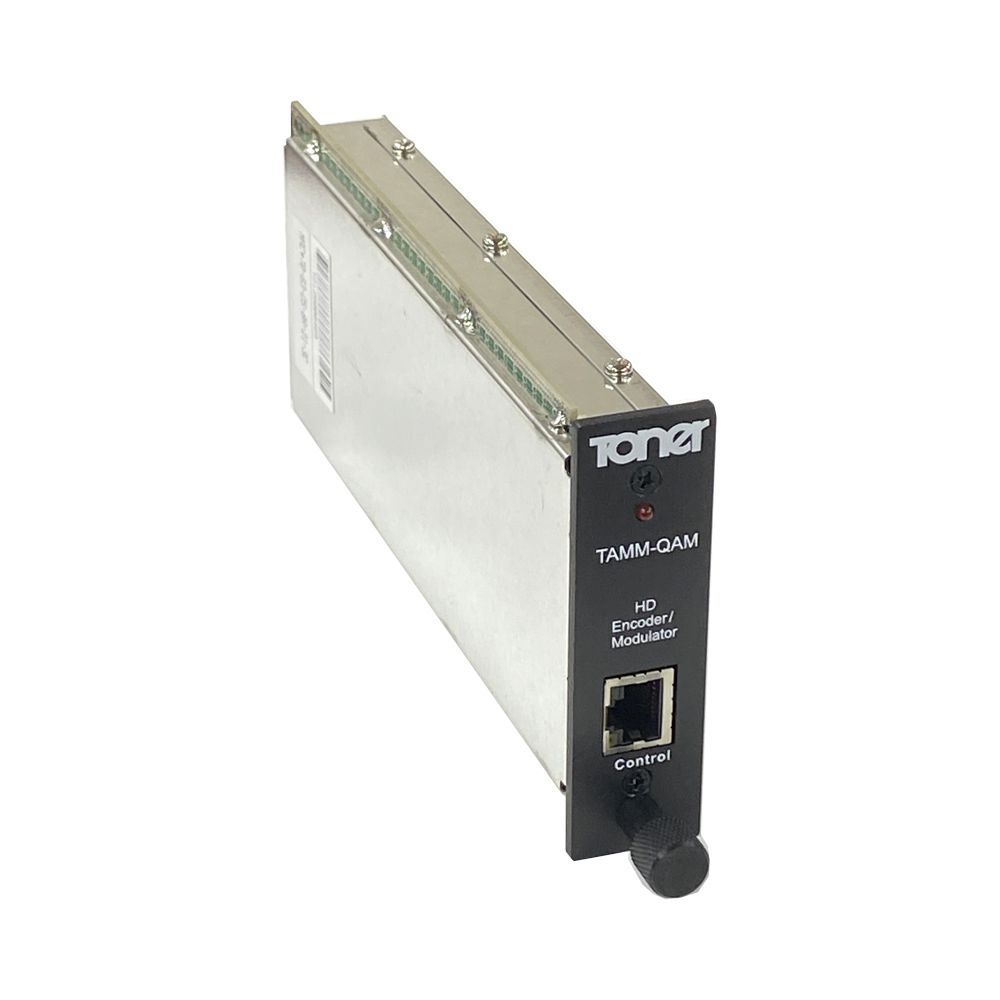

TAMM-QAM Agile HD QAM Encoder Modulator Minimod Type


The TAMM-QAM is a High Definition Frequency Agile digital
Encoder / Modulator.

It has an industry standard HDMI input which it then encodes
in MPEG2 and modulates the signal in either QAM or 8VSB.
The QAM can be set to QAM256 or QAM64 as is used in MMDS

The TAMM-QAM is a Mini Mod type device that fits in all of the
various Mini Mod chassis like the Toner TMMRC-12 and is
powered by the associated Power Supply like the TMMPS.

The TAMM-QAM only uses one module space meaning the
Chassis can hold up to 12 units. Set up and programming is
easily accomplished via a GUI interface and RJ45 Ethernet jack
on the front.

Usually ships same business day
Safe Checkout


  • Support 1080p full HD, and HD/SD ready for digital TV sets and CCTV security
  • Channelized with standard channel number for easy and fast channel change
  • Ready to consolidate or combine existing or new RF coaxial cabling
  • Compatible with any terrestrial/cable tuner ready digital TV set/box
  • Mini modular type compatible and fitting in with existing rack and power supply


  • Supports MPEG2 1080p with video resolution 1080 i/p, 720p, 576 i/p, 480 i/p
  • Supports major/minor channels
  • Supports AC3 Dolby and AAC
  • HDCP access compliant
  • HDMI input for HD/SD encoding
  • PMT, video/audio PID, service/network name programmable
  • Friendly configuration & management control remotely thru RJ45 ethernet connection

Additional information

Weight 1 lbs
Dimensions 7.5 × 1 × 3.5 in
