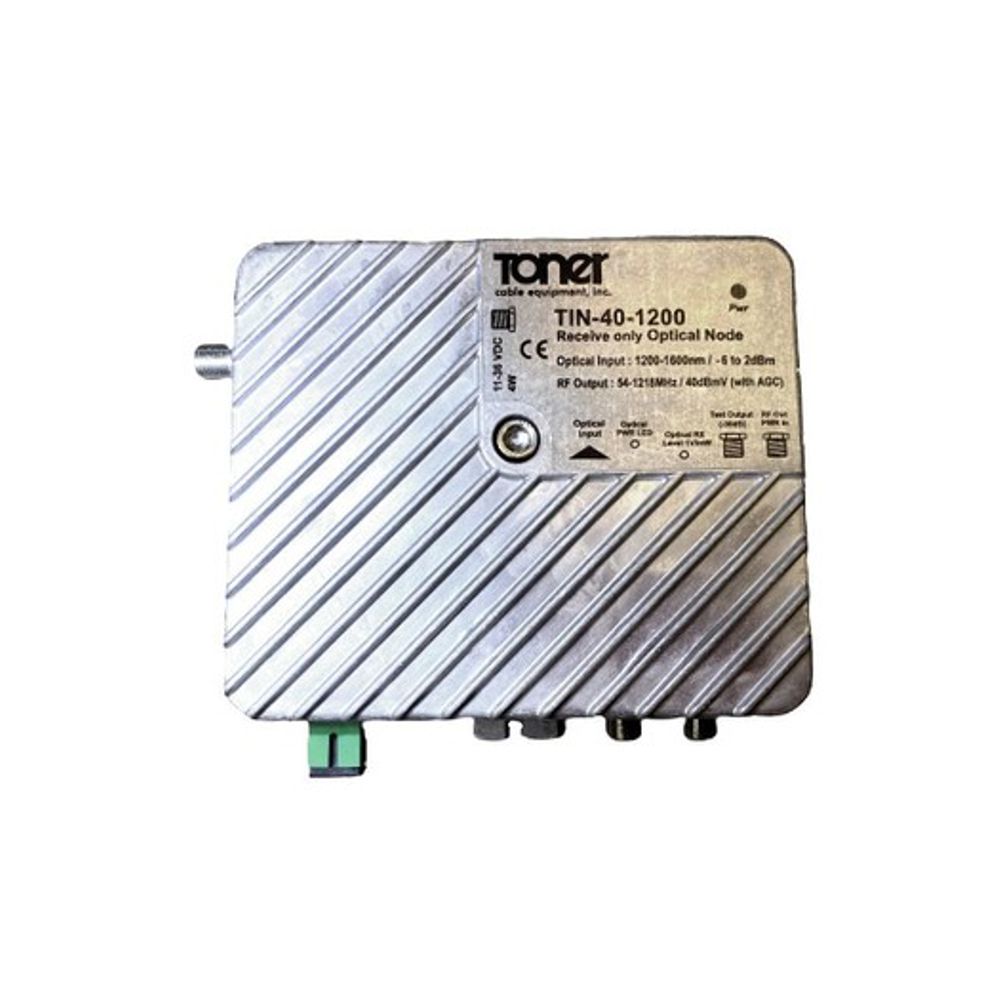

TIN40-1220 Indoor Optical Node, 1220 MHz
$205.00 Each Add to cart

Toner Cable - TIN40-1220 Indoor Optical Node, 1220 MHz

$205.00 Each

The TIN40-1220 is a new, one way fiber optic node for CATV, SMATV, FTTx, MDU or private business applications. The TIN40-1220 has a wide optical input range from 1200 to 1600 nm, making it ideal for either 1310 nm or 1550 nm systems. The fiber optic receiver has an AGC circuit to maintain a RF output over a -6 to +2 dB optical input level. The high RF output level of 40 dBmV eliminates the need for a separate RF amplifier for distribution. A 0-18 dB gain control makes system balancing easy without external pads. The GaAs E-pHEMT push pull hybrid pro- vides superior performance with low distortions. The node uses an external 12VDC power sup- ply (included) which can be connected directly or diplexed on the RF output cable for remote powering. The optical input is a SC/APC connnector and features a multicolor LED for input level reference.

Usually ships same business day
Safe Checkout

Description

  • Full forward bandwidth up to 1220 MHz ï‚· High RF output range; 40 dBmV stable within wide optical input range (-6 to 2 dBm) with AGC feature
  • GaAs E-pHEMT push-pull technology for high and stable output level with very low power consumption Optical input test point
  • Three colored LED indicator for optical input level ï‚· External powering (11-35 Vdc) or remote powering over coax line via power inserter
  • Surge protection (6kV) at RF output
  • SCTE compliant F type connectors
  • Diecast aluminum housing for excellent heat dissipation and RFI shielding

Brand

Toner Cable

Toner Cable Digital & Analog Electronic Equipment Founded in 1971 by Bob Toner, Toner Cable was an early innovator of electronic multi-taps and antenna products. Over the next thirty years, Toner Cable continued to develop as a leading cable equipment provider, growing into the computer systems and satellite services industries. Today Toner Cable continues to be a provider and manufacturer of digital and analog electronic equipment including headend electronics, broadband video and radio frequency distribution products, TV antennae, satellite, fiber optic and test equipment, as well as I/P Ethernet network tools. We'd like to invite you to browse our extensive line of fiber optic equipment, including testing tools, enclosures, cables, splicing units, power supplies, as well as data and Ethernet cables.

Additional information

Weight 5 lbs
Dimensions 13 × 13 × 6 in
