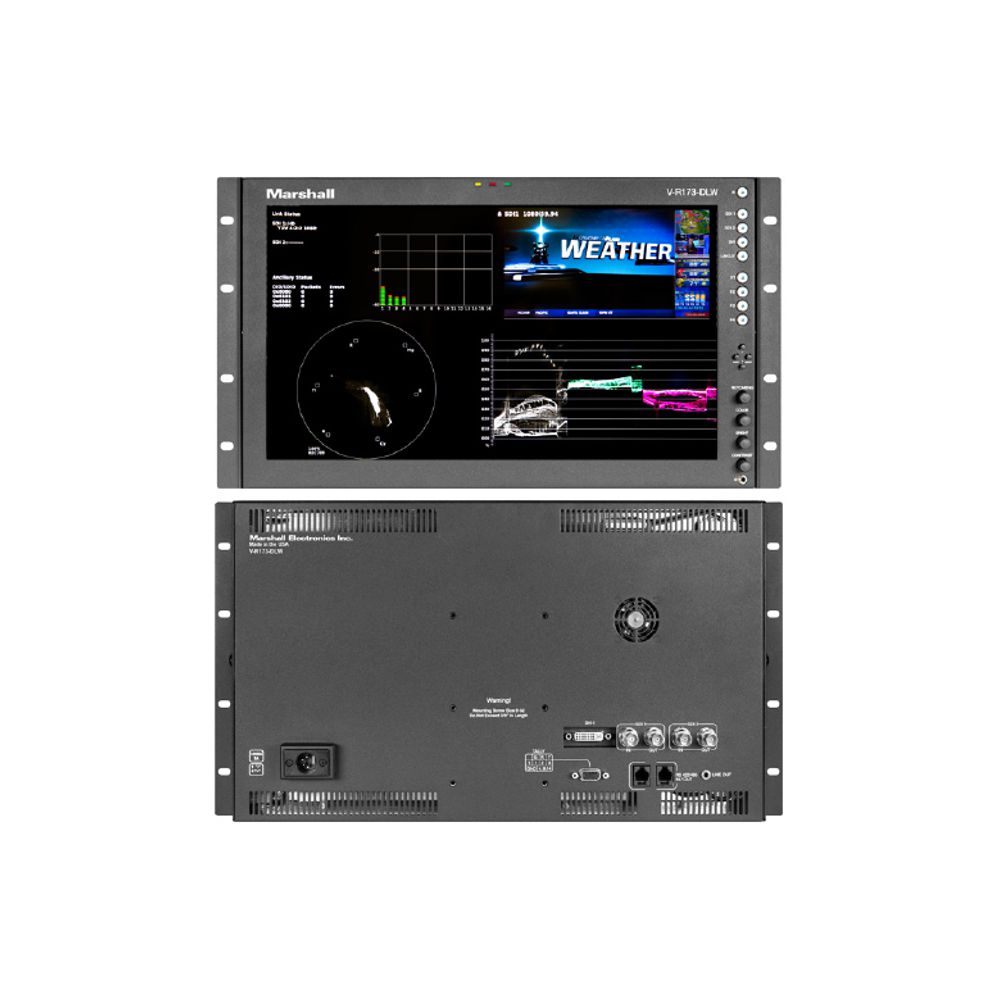

V-R173-DLW 17.3″ Desktop/Rack Mount Monitor and Digital Analytics Workstation
$2,938.00
The 17.3″ V-R173-DLW monitor features 3G, Dual Link and DVI inputs and displays Waveform & Vectorscope, Digital Audio and a host of additional information in a 10 bit “no compromise” video path. In Quad-View mode, the input signal can be broken into four quadrants that simultaneously displays all of the critical information needed to keep your signal path within all critical specifications.
Additional features include IMD protocol support for TSL, NVISION, Image Video, and MEI
(Marshall Electronics) tricolor tally and in- monitor text systems via RS-485. Other display features include full CEA-608-B and CEA-708-B Closed Captioning, Timecode and VANC data.
INPUTS
- 2 x 3G-SDI inputs with loop-through and SD-SDI, HD-SDI, & 3G-SDI support.
- SDI inputs can be used in tandem to do dual link
- 1 x DVI-I input: supports digital DVI, HDMI (without audio), Analog video (RGB, YPbPr) to 162MHz
PROCESSING
- 10-bit image processor
- 4×3 and 16×9 aspect ratios
- High quality motion adaptive deinterlacer
- Time-code (LTC / VITC)
- 608/708 closed captioning
- Waveform monitor
- Vectorscope
- Ancillary data window
- 16 channels of audio metering (SDI inputs only)
- Standard Marshall IMD processing
- RotoMenu controlled OSD
- Four programmable function buttons
- System statistics monitoring in OSD
- Variety of markers
MISCELLANEOUS
- Hard TALLY (Red, Yellow, Green LEDs)
- Soft TALLY (in IMD)
- RS-485 interface supports Marshall, Image Video and TSL protocols
- System supports color calibration
- RS-485 based firmware update
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 2 × 17.15 × 10.45 in |
Brand
Marshall Electronics
Marshall Electronics is a leading manufacturer of LCD rack mount and camera-top monitors for broadcast, multimedia, video, film, and news professionals worldwide. They offer a large assortment of technology including 3D, audio monitors, outdoor field monitors, In-Monitor Display (IMD), Quad Viewers, stand-alone field / post monitors, and more.
