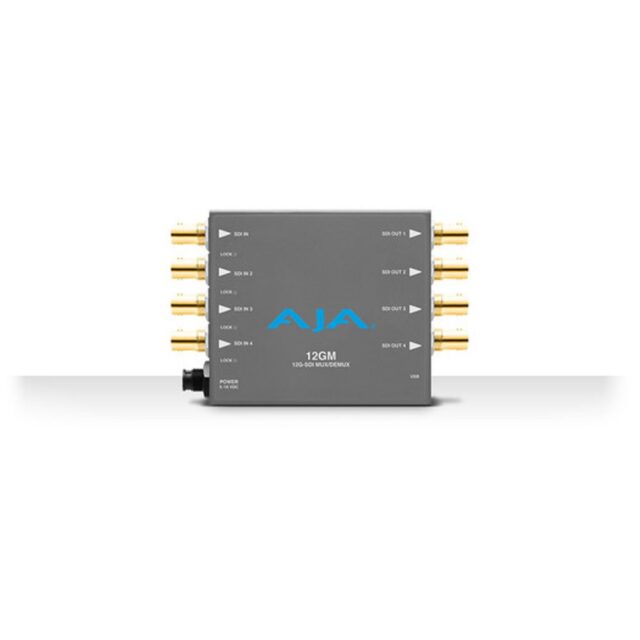

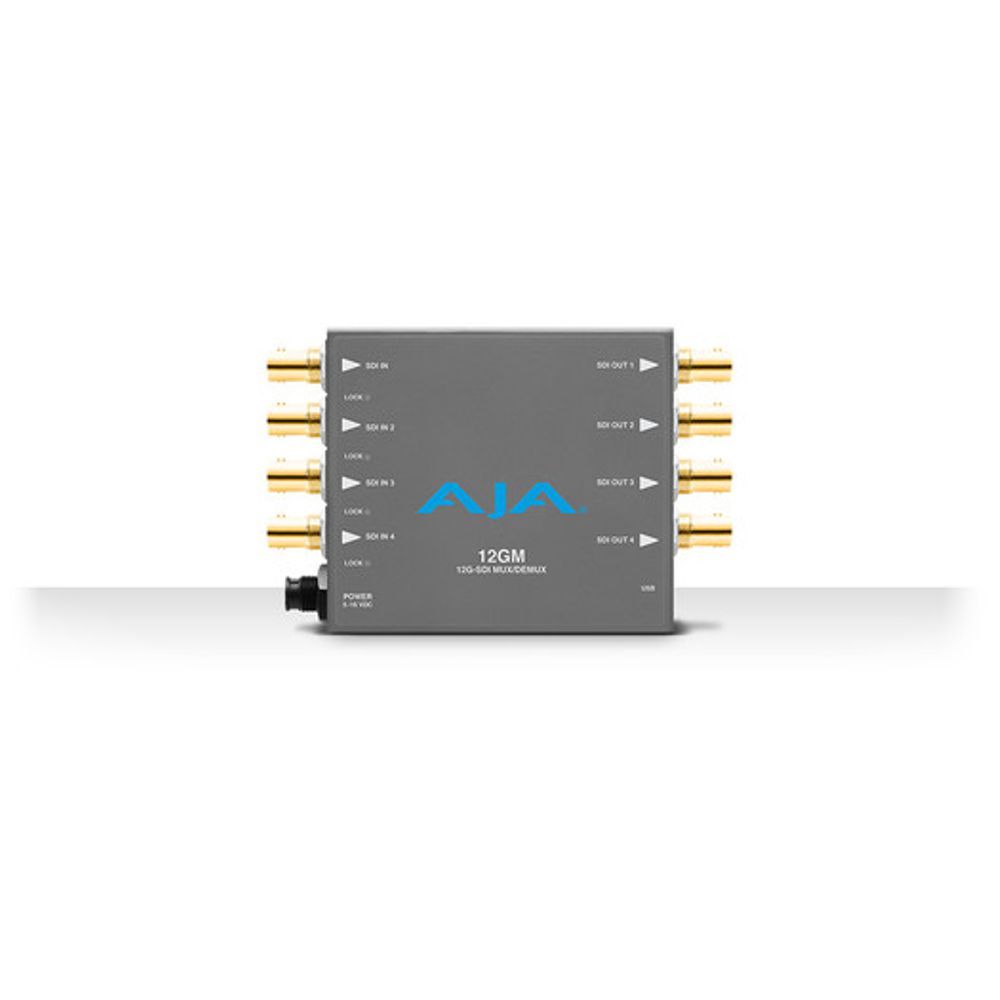

12GM 12G-SDI to/from SDI Muxer/DeMuxer
$939.75 Each Add to cart

AJA - 12GM 12G-SDI to/from SDI Muxer/DeMuxer

$939.75 Each

12GM is a compact SDI transport converter that enables 12G-SDI to Quad-link 3G-SDI and Quad-link 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

Ships in approx. 1 week
Safe Checkout

Description

  • Compact 12G-SDI to/from quad-link 3G-SDI conversion and 6G-SDI to/from quad-link 1.5G-SDI
  • SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • Input signal diagnostics
  • Input timing analyzer for quad-link signals
  • Configurable as a 1×4 Distribution Amplifier for 12G, 6G, 3G and 1.5G bit rates
  • Automatic equalizing and reclocking with jitter attenuation
  • DWP-U-R1 power supply included
  • Five Year warranty

Brand

AJA

Digital Video Solutions AJA Video Systems is a leading manufacturer of high-quality and cost-effective digital video acquisition, interface, conversion solutions for professional broadcast, production and post-production. AJA simplifies professional digital video workflows with a line of award-winning products designed and manufactured in Grass Valley, California. AJA was founded by engineer John Abt in 1993. Today the company employs over 200 people worldwide, building industry-leading video capture cards, digital recording devices, video routers, frame synchronizers and scalers, digital converters. AJA’s engineering has consistently supported advancements in broadcast technologies as well as format standards to provide video professionals with future-proof workflow solutions.

Additional information

Weight 3 lbs
Dimensions 8 × 6 × 3 in
