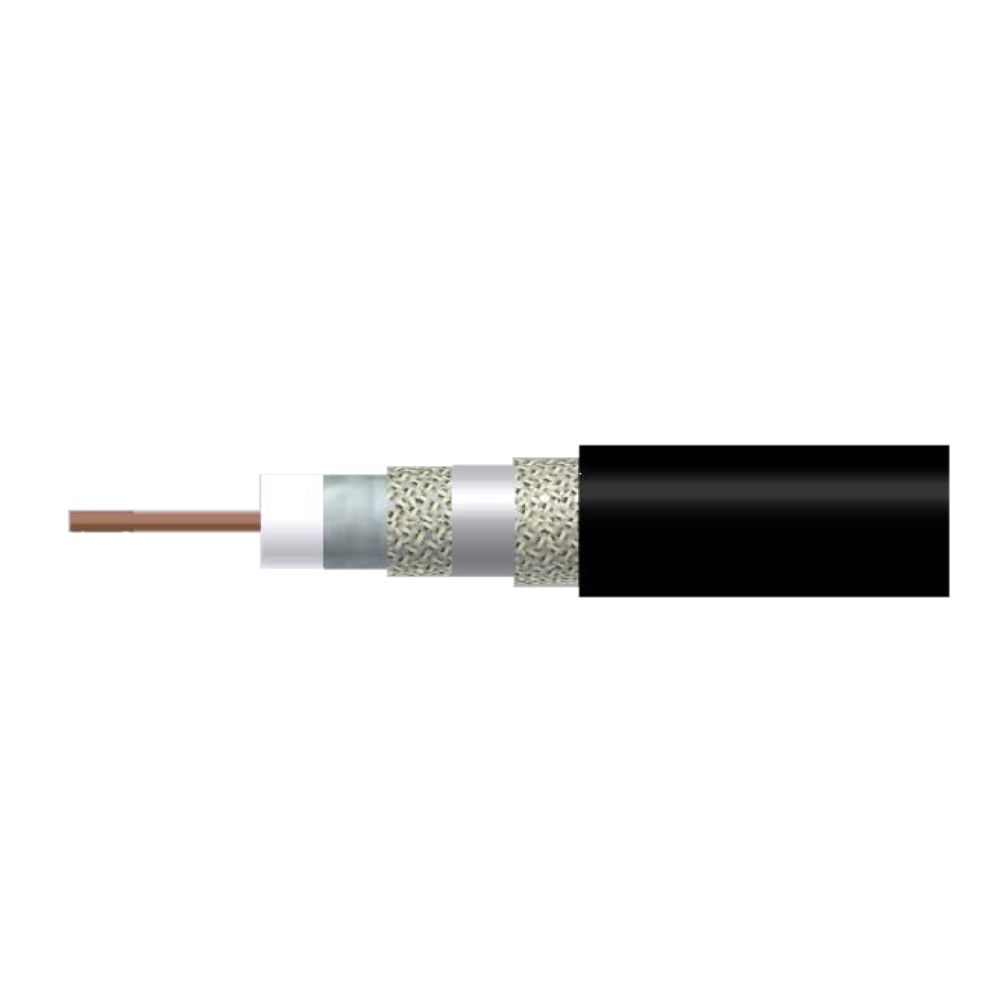

- Silver-Plated Copper Clad Steel Conductor
- Foamed Polyethylene Dielectric
- Bonded APA Laminate Shield
- 95% Aluminum Braid
- APA Laminate Shield
- Black PVC Jacket
- NEC820 (UL) CATV Listed
Times Fiber Communications (TFC) - 2241VBL Blue RG59 Headend cable
$349.00 1000 ft
TImes 2240V headend cable is designed for building headends where premium performance and dual 95% braid prevents signal ingress.
Center Conductor – Silver-plated copper-clad steel for long term low contact resistance, low attenuation and axial strength, with easy cable preparation and reliable connector attachment for “F” type fittings.
Dielectric – Foam Polyethylene, low loss, high velocity providing optimum dielectric properties. The foam is bonded to the center conductor with an easily stripped,
proprietary moisture-blocking polymer.
1. Sealed APA Laminated Tape
2. 95% Aluminum Braid
3. APA Laminated Tape
4. 95% Aluminum Braid
Jacket – Flame retardant PVC – NEC Article 820 – “CATV
|Dimensions||14 × 13 × 13 in|
