231180 RF broadband Fiber optic receiver (Node) 47-1000 MHz, 1200-1600 nm, SC/APC connector. 20 dBmV output
$89.00 Each Add to cart

Televes - 231180 RF broadband Fiber optic receiver (Node) 47-1000 MHz, 1200-1600 nm, SC/APC connector. 20 dBmV output

$89.00 Each

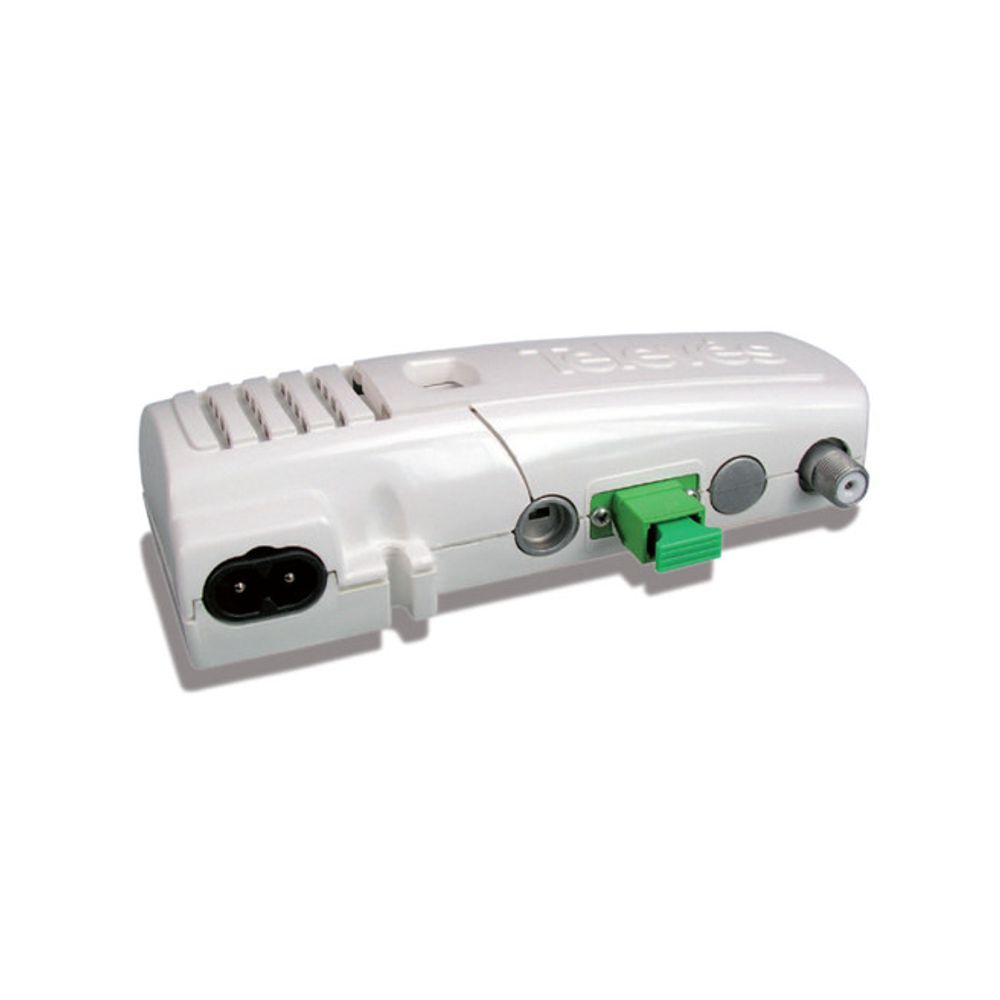

The 231180 Optical Node by Televes is a low‐cost, compact, indoor CATV receive-only fiber optic node. It is designed with the latest optical receiver technology to receive RF broadband signals in an HFC (hybrid fiber/coax) or PON (passive optical network) broadband CATV environment.

The Televes 231180 node is ideal for fiber reception of CATV RF signals in FTTH, FTTx, and other applications where a cost effective, compact indoor node is required.

The 231180 offers good optical sensitivity, 20 dBmV RF output level, indoor power and optical level LED indicator.

Usually ships same business day
Safe Checkout

Description

  • Includes OLC (Optical Level Control), , the device automatically adjusts its parameters in order to achieve a balanced signal at the output and this signal level won’t depend on the number of TV channels being transmitted.
  • Output C/N > 52dB.
  • Low consumption (1,7W)
  • Ideal for RF Overlay / FTTx applications.
  • Provides information, a set of LED lights will indicate the input
  • optical power.
  • Compact, size of a domestic amplifier.

Brand

Televes

Providers Of Industry-Leading Hand-Held Meters And Analyzers Televes believes in delivering superior quality products through a truly “state-of –the-art” manufacturing process, as well as vigorous post-production certification testing. They stay true to their company motto: “Quality is manufactured, not controlled”.Their hand-held meters and analyzers, available through Toner Cable, provide lab-quality real time digital processing with an intuitive user interface, which reduces the learning curve. Televes Analyzers provide unrivaled speed and mathematical precision for all your measurements needs.

Additional information

Weight 2 lbs
Dimensions 5.75 × 1.5 × 2.5 in
231180 Spec-Sheet
