Microwave Filter Company - 3322 Low Pass Filter Headend Applications

$195.00 Each

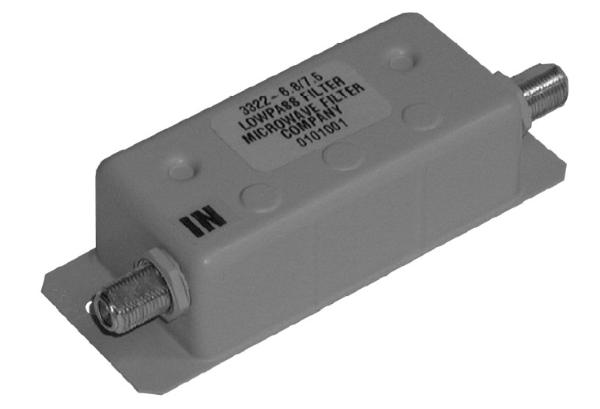

The model 3322-Lowpass filters pass the segment of the TV spectrum below a prescribed cut-off
frequency. The band segment above the cut-off frequency is suppressed. These
filters are AC/DC passing (500 mA Max).
Alternate “Cut-off Frequency” models are readily available upon request

Out of stock

Safe Checkout

Description

Mechanical Specifications:

  • Baseplate Dimensions: 4″ x 1.5″ or 6.125″ x 2.25″ based on unit selected
  • Rack Mount Available Upon Request
  • Connectors: 75 ohm – Type “F”
  • *Custom units can be ordered in a delay equalized version.
  • About 20 different models available, call for further information

Brand

Microwave Filter Company

"COMMITTED TO EXCELLENCE" SINCE 1967 MIcrowave Filter Co.,has been a leader in the design, development and manufacture of high quality filter products for more than 45 years. They offer a complete line of CATV headend channel deletion filters and networks, bandpass filters and diplexers for wireless and PCS applications. All MFC filters are produced within our modern 40,000 square foot facility by a staff that is “Committed to Excellence”.

Additional information

Weight 6 lbs
