TSLM-AI1 All In One Tablet Signal Level Meter

$1,345.00

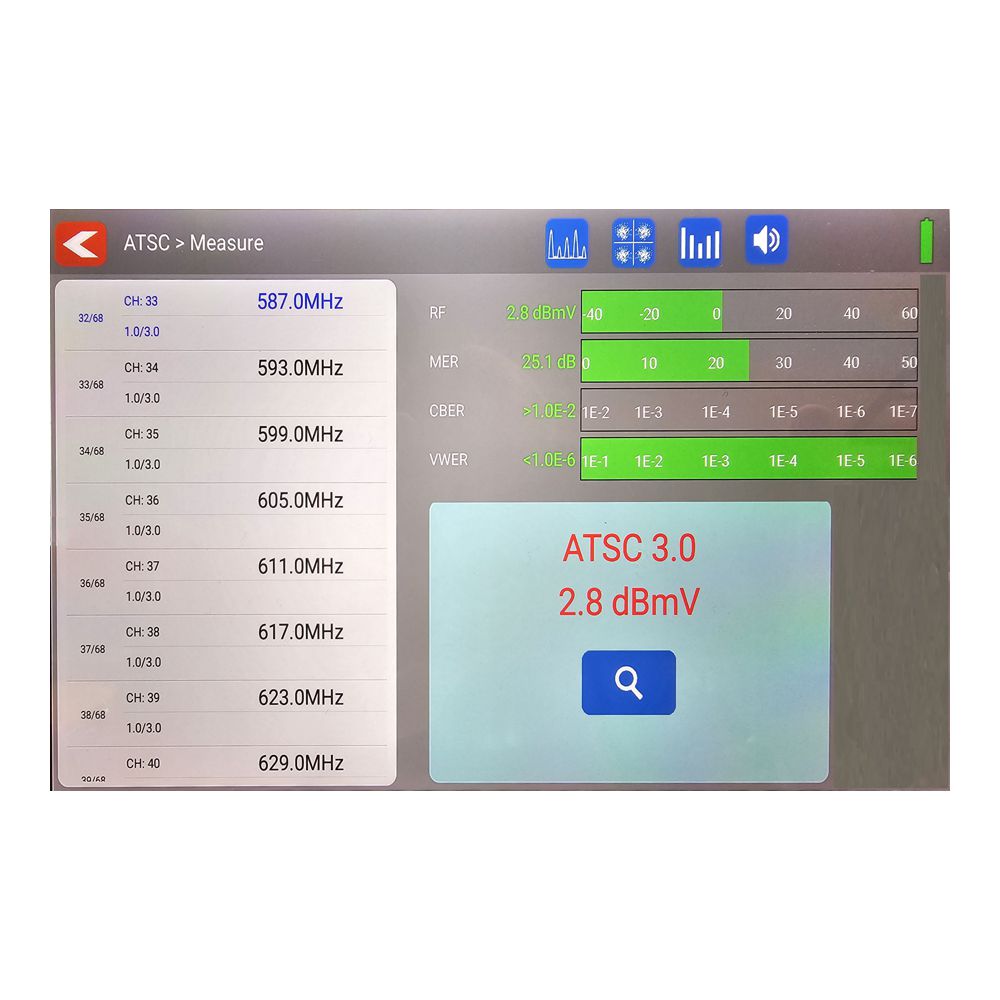

The TSLM-AI1  Signal Level meter is a tablet style meter with the ability to measure and or analyze eight different types of signals. These include 8-VSB, ATSC 3.0, QAM, Optical Power, DVB-S & S2, DVB-T & T2 (COFDM) , ISDB-T, DAB/DAB+ and FM. It also is able to decode and display IPTV and network programming (streaming).

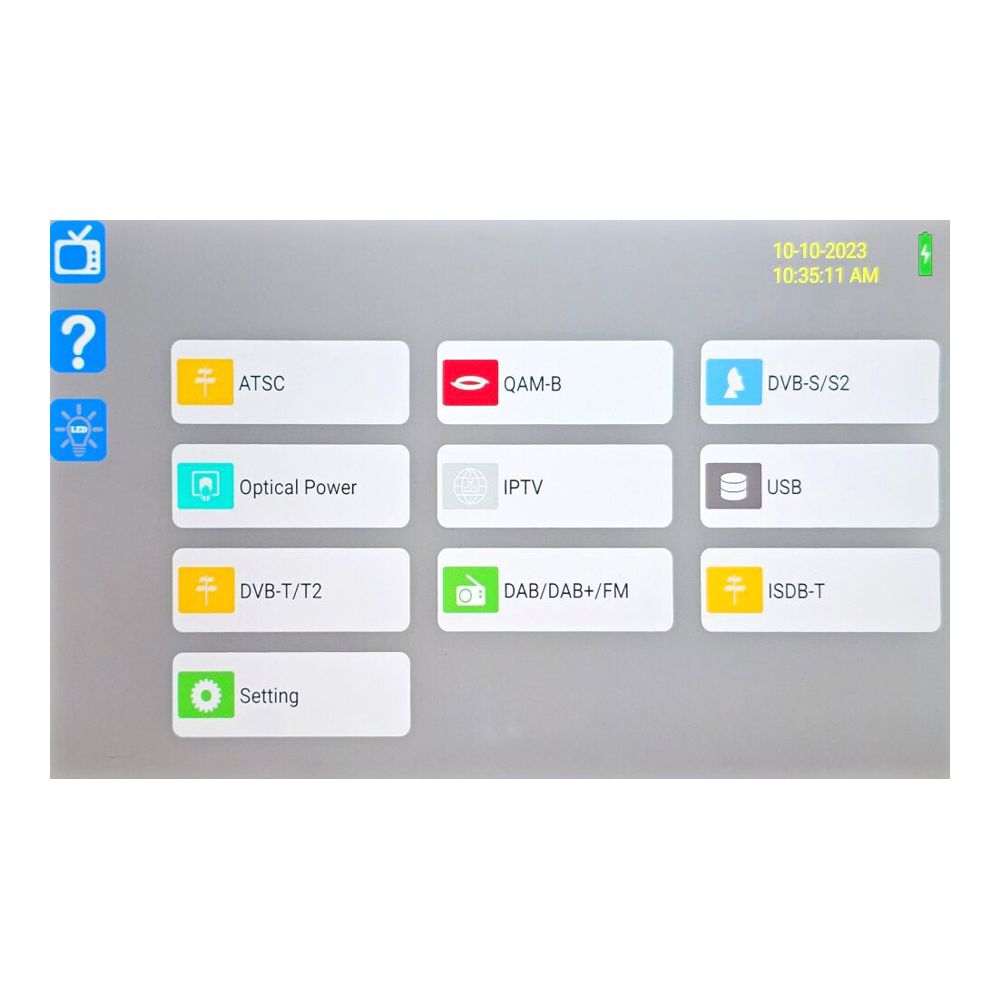

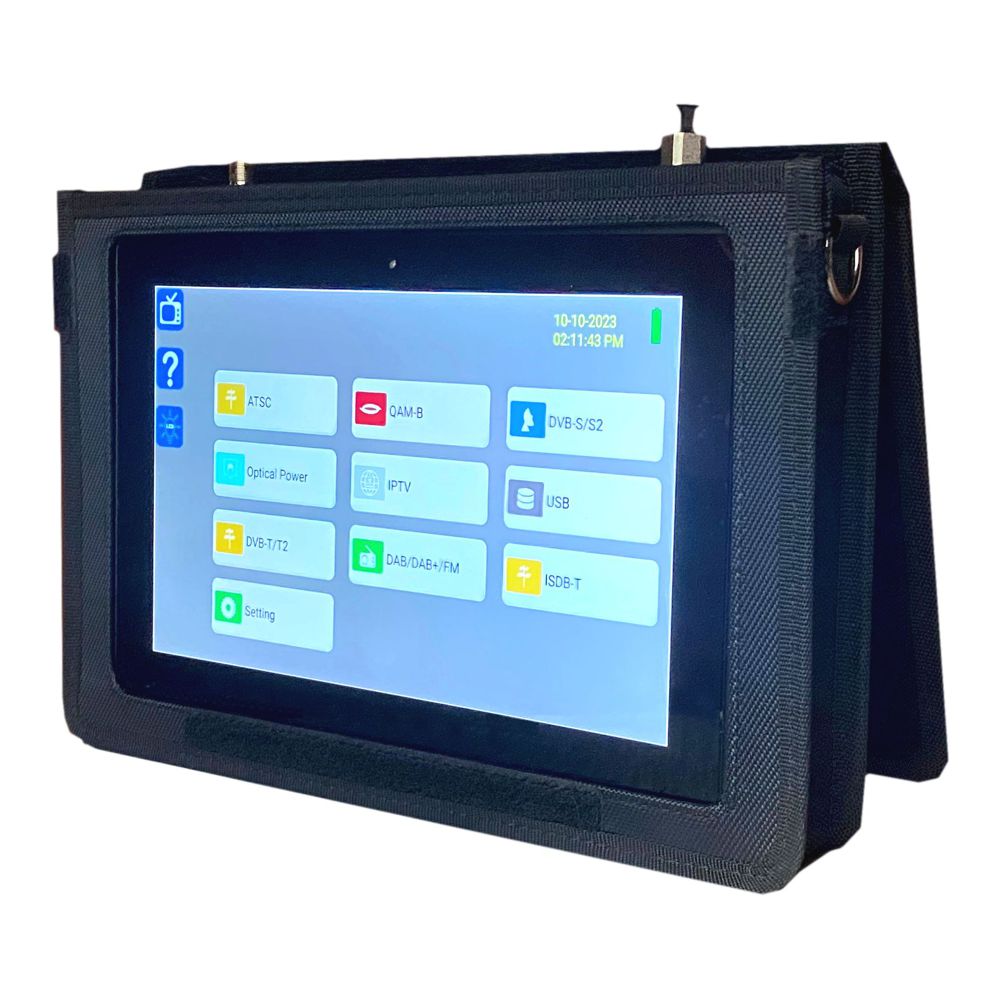

Built in a rugged aluminum chassis, the TSLM-AI1 features a 8.9 inch Touch Screen with a 2560 x 1600 pixel resolution from which all aspects of the meter are controlled with Touchscreen input.

Test results as well as data can be stored on a removable USB thumb drive.

Usually ships same business day
Safe Checkout

  • Receive and analyze 8VSB, ATSC 3.0, QAM, DVBS, DVB-S2, DVB-t, DVB-T2, DVB-C, DVB-C2, ISDBT, DAB, DAB+, FM and Optical Power Level
  • Transport Stream Demod
  • Video Codec’s MPEG1, MPEG2, MPEG4 (H.264) HEVC (H.265) 4k@60 FPS, AVS, VC-1, VP8, MVC
  • Audio Codecs MPEG1-L2, MPEG-2, AC-3, AAC, MPEG-H
  • I/P decode via RJ45 connector
  • Video display on screen (un encrypted)
  • Speaker for audio output
  • 90-240VAC power supply / battery charger
  • Li-ion 5000 mA 7.4 Vdc battery
  • 12 OCD languages
  • dBmV or dBuV user selectable measurement

Additional information

Weight 6.5 lbs
Dimensions 12 × 9 × 5 in
